Description
T21A01T494-2 Rubadue Black Winding Wire – Triple 21 AWG Solid Conductor INSUL ETFE UL 0.002″/Layer, Tin Plated Copper RoHS

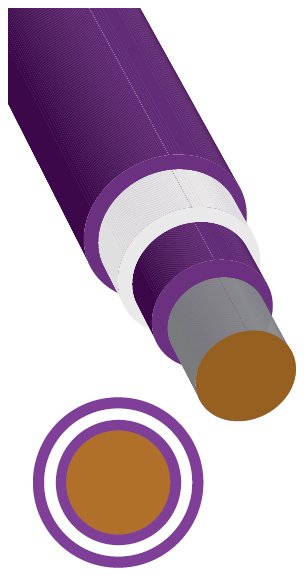

Triple-Insulated Wire
Rubadue Wire is proud to be the first wire and cable manufacturer to design and produce triple-insulated wires. These wires meet the design requirements to be used for a variety of applications and purposes, including:
Winding directly on top of magnet wire
Primary and secondary electrical winding
High-voltage wiring
Solutions for reduced space, volume, and weight
Rating:
Temperature:180C
Voltage: 1000V
Applications:
Lower partial discharge
High temp power supplies
Medical equipment
Compliances:
UL OBJT2 File No. E206198
UL / IEC 60950-1(Ed.2), Annex U
IEC 61558-2-16, 60601-1 (Ed.3) ,61010-1(Ed.3)
VDE License Nr. 6716: Class H
RoHS Compliant
System approvals: UL 1446
Information provided upon request
Tensile Strength: 3600 psi
Breakdown: Approx. 10000V
Insulation Temperature Capacity: 260C
Manufacturer:Rubadue Wire
Datasheet:rubadue-wire-catalog-5ba3f734378f3.pdf
