Description

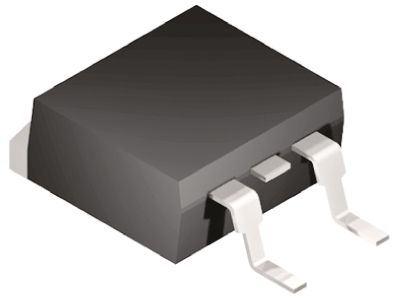

Toshiba TA7805F(TE16L1,NQ) Linear Voltage Regulator, 1A, 5.25 V, 4%, HSOP 3-Pin
Specifications
Output Voltage 5.25 V
Maximum Output Current 1A
Package Type HSOP
Output Type Fixed
Mounting Type Surface Mount
Minimum Input Voltage 10 V
Maximum Input Voltage 33 V
Pin Count 3
Minimum Operating Temperature -30 C
Maximum Operating Temperature +150 C
Number of Outputs 1
Polarity Positive
Quiescent Current 8mA
Width 5.5mm
Accuracy 4%
Dropout Voltage Measurement Current 1 A
Load Regulation 100 mV
Dimensions 6.5 x 5.5 x 2.3mm
Length 6.5mm
Line Regulation 100 mV
Typical Dropout Voltage @ Current 2V
Height 5.5mm
Manufacturer Part Number: TA7805F(TE16L1,NQ)
Manufacturer: Toshiba
