Description

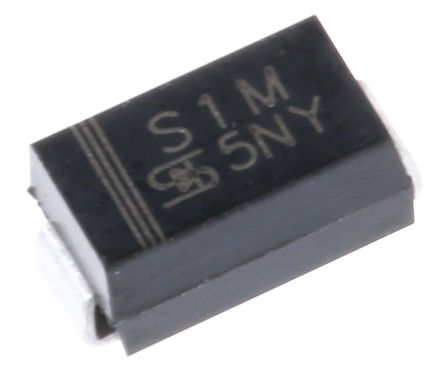

Taiwan Semiconductor S1M(R2) Diode Switching 1KV 1A Automotive 2-Pin SMA T/R RoHS
Specifications
Dimensions 2.3 x 4.6 x 2.83mm
Diode Type Silicon Junction
Maximum Continuous Forward Current 1A
Maximum Operating Temperature +150 °C
Minimum Operating Temperature -55 °C
Number of Elements per Chip 1
Package Type DO-214AC
Peak Forward Voltage 1.1V
Peak Non-Repetitive Forward Surge Current 0.03kA
Peak Reverse Current 0.001mA
Peak Reverse Recovery Time 1500ns
Peak Reverse Repetitive Voltage 1000V
Pin Count 2
Width 2.83mm
Rectifier Type Switching
Diode Configuration Single
Height 2.3mm
Length 4.6mm
Mounting Type Surface Mount
Manufacturer:Taiwan Semiconductor
Datasheet:Others/s1al-s1ml.pdf
