Description

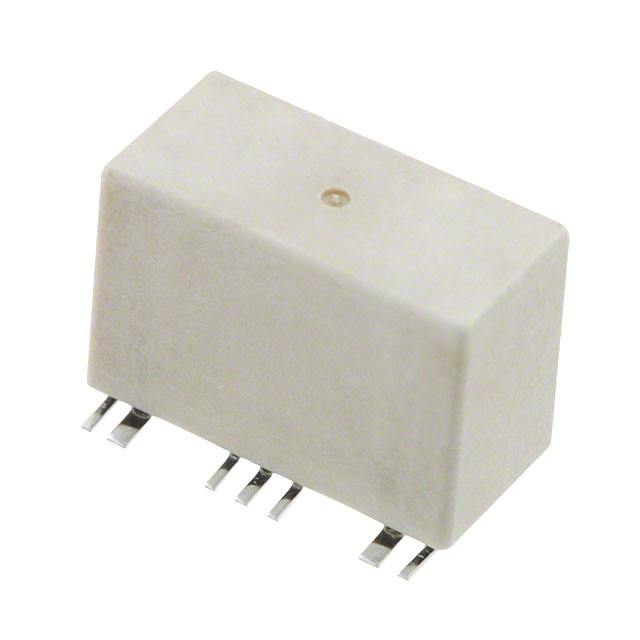

TE Connectivity 1462050-2 Low Cost 2 A SPDT 5 VDC 2 Coil Latching SMT Signal Relay
The 1-1462050-2 is a High performance low cost plastic sealed high frequency relay for 50 and 75 Ohm systems, 1 pole, polarized coil Surface Mount Technology (SMT). It has an Operating Voltage of 5 V and Current of 2 A.
Features:
Y-Design
Frequency range DC to 3 GHz
Impendance 50 O or 75 O
Small dimensions (14.6 mm x 7.2 mm x 10 mm)
1 change over contact (1 form C / SPDT)
Immersion cleanable
Low power consumption (=140 mW)
Applications:
Cable modems and linecards/ CATV
TAP’s
Measurement and test equipment ATE
Satellite / audio / video tuners
Wireless base stations and antennas
Manufacturer:TE Connectivity / AMP
Datasheet:TE/ENG_SS_108-98000_R13_HF3.pdf
