Description

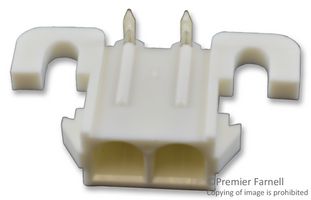

TE CONNECTIVITY / AMP 1-350942-0 Wire-To-Board Connector, Universal MATE-N-LOK Series, Through Hole, Header, 2, 6.35 mm
The 1-350942-0 is a 2-position 1-row right angle Wire-to-Board Rectangular Connector with tin-plated phosphor bronze contact and white GF nylon housing. The Universal MATE-N-LOK series contacts completely enclosed in housings. It has dual locking lances provide optimum contact stability. It mate with the universal MATE-N-LOK II housings. Harness to PC board capability using pin or socket headers.
- Positive polarization
- Rear cavity identification
- Positive locking housings
- Insulation capability to 5.08mm diameter
- Low contact mating force
Applications
Industrial
Manufacturer: TE Connectivity
Product Category: Pin & Socket Connectors
RoHS: RoHS Compliant
Brand: TE Connectivity / AMP
Product: Receptacle Housings
Number of Positions: 2 Position
Contact Gender: Pin (Male)
Termination Style: Through Hole
Mounting Style: –
Housing Material: Polyamide (PA)
Contact Material: Phosphor Bronze
Contact Plating: Pre-Tin
Voltage Rating: 600 V
Current Rating: 19 A
Series: MATE-N-LOK
Packaging: Bulk
Qualification: Commercial
Factory Pack Quantity: 280
Tradename: MATE-N-LOK
Manufacturer:TE Connectivity / AMP
Datasheet:TE/1492314.pdf
