Description
1-87309-3 Headers & Wire Housings RECPT CONTACT 24-20 AMPMODU Mod V 24-20 AWG Wire to Cable Crimp Snap-In Socket Contact

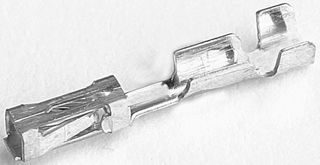

The 1-87309-3 is a socket Signal (Data)/Power Contact made of phosphor bronze with tin plated finish. The Mod V series high pressure contact with insulation support. It accepts 24 to 20AWG wire size.
- 3A Contact current rating
- 12mΩ Termination resistance
- 250VAC Operating voltage
- 750V Dielectric withstanding voltage
- 5000MΩ Insulation resistance
Applications
Industrial
Manufacturer:TE Connectivity / AMP
Datasheet:NG_CD_87309_L-166100.pdf
