Description

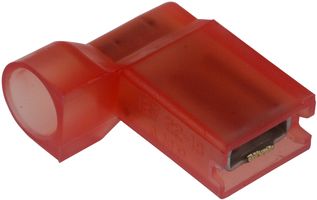

2-520336-2 TE Connectivity / AMP Terminals 0.187″ (4.75mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated
These fully insulated crimp terminals feature funnel wire entry, a wire stop and see through insulation so inspection of the crimp is possible. The terminals meet UL and CSA dimensional requirements and when crimped with the matched ratchet tool, they meet the UL and CSA electrical performance tests. Ultra-Fast receptacles, flags and tabs are made from standard nylon which means the insulation bucket is not crimped onto the cable insulation to provide support. However, Ultra-Fast plus receptacles are made from a premium nylon which means the insulation can be crimped by the special die giving extra strain relief of the wire.
Specifications
Manufacturer: TE Connectivity
Product Category: Terminals
RoHS: RoHS Compliant
Product: Quick Disconnects
Stud / Tab Size: 4.75 mm
Wire Gauge: 22 AWG – 18 AWG
Termination Style: Crimp
Gender: Female
Insulation: Insulated
Color: Red
Contact Plating: Tin
Contact Material: Brass
Series: 187 FASTON
Tradename: FASTON
Brand: TE Connectivity / AMP
Insulation Material: Nylon
Material: Brass
Mounting Angle: Straight
Mounting Method: Wire
Packaging: Reel
Qualification: Commercial
Factory Pack Quantity: 2200
Part # Aliases: 66101-3
Manufacturer Part Number: 2-520336-2
