Description

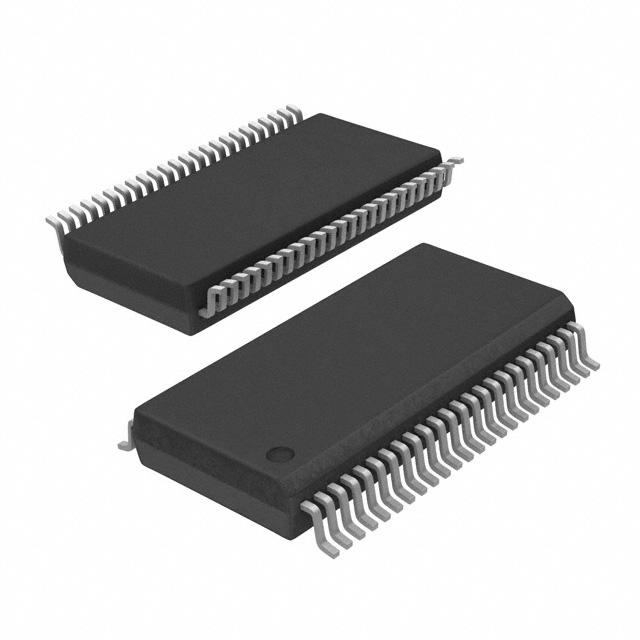

Texas Instruments 74AC16244DL Buffer, Non-Inverting / Line Driver 16-CH Non-Inverting 3-ST CMOS 48-Pin SSOP Tube
Manufacturer: Texas Instruments
Product Category: Buffers & Line Drivers
RoHS: RoHS Compliant Details
Brand: Texas Instruments
Number of Input Lines: 16 Input
Number of Output Lines: 16 Output
Polarity: Non-Inverting
Supply Voltage – Max: 5.5 V
Supply Voltage – Min: 3 V
Maximum Operating Temperature: + 85 C
Mounting Style: SMD/SMT
Package / Case: SSOP-48
Packaging: Tube
High Level Output Current: – 24 mA
Logic Family: AC
Logic Type: CMOS
Low Level Output Current: 24 mA
Minimum Operating Temperature: – 40 C
Number of Channels: 16
Operating Supply Current: 80 uA
Output Type: 3-State
Pd – Power Dissipation: 1.2 W
Propagation Delay Time: 10.7 ns at 3.3 V, 7 ns at 5 V
Series: 74AC16244
Factory Pack Quantity: 25
Unit Weight: 0.021175 oz
Manufacturer Part Number: 74AC16244DL
Texas Instruments
