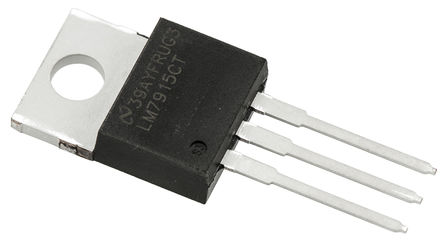

Texas Instruments LM7915CT/NOPB Negative Voltage Regulator 1.5A -15 V, ±4%, 3-pin TO-220, LM7915CT/NOPB.
Manufacturer: Texas Instruments
Product Category: Linear Voltage Regulators
RoHS: RoHS Compliant Details
Output Type: Fixed
Output Voltage: – 15 V
Output Current: 2.2 A (Typ)
Load Regulation: 200 mV
Input Voltage MAX: – 23 V
Line Regulation: 100 mV
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package / Case: TO-220
Brand: Texas Instruments
Input Voltage MIN: – 17.5 V
Minimum Operating Temperature: 0 C
Number of Outputs: 1
Packaging: Tube
Polarity: Negative
PSRR / Ripple Rejection – Typ: 70 dB
Series: LM7915
LM79 Linear Voltage Regulators, Texas Instruments
The LM79,LM79L and LM79M are negative voltage regulators by Texas Instruments (TI). These families have fixed output voltages of -5V, -12V or -15 volts. The regulator will need an external compensation capacitor at the output. It is suitable for applications that require 1.5A for the LM79xx, 0.1A for LM79Lxx and 0.5A for LM79M types. The TI family of LM79 features the internal short circuit current limiting and also the thermal overload protection making them a robust Integrated circuit (IC). The low ground pin current allows the output voltage to be easily boosted above the pre-set value with a resistor divider.
LM79: 1.5A Output current
LM79L: 0.1A Output current
LM79M: 0.5A Output current
Low quiescent current
High ripple rejection
Linear Voltage Regulator – Texas Instruments
A linear voltage regulator is a device that maintains a steady voltage. The linear regulator can operate with a small input–output differential voltage. The voltage regulator may offer positive or negative polarity, a fast transient response, wide input voltage range, low quiescent current and even low noise with PSRR.
Manufacturer Part Number: LM7915CT/NOPB
Manufacturer: Texas Instruments
