Description
Maxim Integrated Motion Motor Controller Universal High Voltage Stepper Motor Driver 8V to 60V 48-Pin TQFP T/R
Specifications
Manufacturer: Trinamic
Product Category: Motor / Motion / Ignition Controllers & Drivers
Packaging: Reel
Packaging: Cut Tape
Brand: Trinamic
Moisture Sensitive: Yes
Product Type: Motor / Motion / Ignition Controllers & Drivers
Series: TMC2160
Pack Quantity:2000
Subcategory: PMIC – Power Management ICs
Category Integrated Circuits (ICs)
PMIC – Motor Drivers, Controllers
Mfr Trinamic Motion Control GmbH / Maxim
Package Tape & Reel (TR)
Cut Tape (CT)
Motor Type – Stepper Bipolar
Motor Type – AC, DC Universal
Function Driver – Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface SPI, Step/Direction
Technology Power MOSFET
Step Resolution 1 ~ 1/256
Applications Automation Control, Industrial, Medical
Current – Output 20A
Voltage – Supply 10V to 50V
Voltage – Load 10V to 55V
Operating Temperature -40C to 125C (TJ)
Mounting Type Surface Mount
Package / Case 48-TQFP Exposed Pad
Supplier Device Package 48-TQFP-EP (7×7)
Base Product Number TMC2160

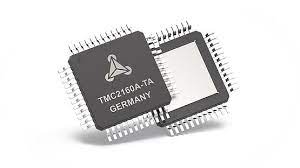

The TMC2160 is a high power stepper motor gate driver IC with SPI interface. It features industries most advanced stepper motor driver with simple Step/Dir interface.
Using external transistors, highly dynamic, high torque drives can be realized. Based on Trinamic’s sophisticated SpreadCycle and StealthChop choppers, the driver ensures absolutely noiseless operation combined with maximum efficiency and best motor torque. High integration, high energy efficiency and a small form factor enable miniaturized and scalable systems for cost effective solutions.
The fully compatible TMC5160 offers an additional motion controller to make stepper motor control even easier.TMC2160A-TA-T Trinamic Bipolar Motor Driver Power MOSFET SPI, Step/Direction 48-TQFP-EP RoHS
Manufacturer:Maxim
Datasheet:TMC2160A-Rev1.06.pdf
