Description

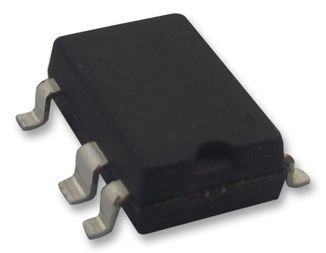

TNY280GN-TL Power Integrations Converter Offline Flyback Topology 132kHz SMD-8C
TinySwitch-III incorporates a 700 V power MOSFET, oscillator, high voltage switched current source, current limit (user selectable) and thermal shutdown circuitry. The IC family uses an ON/OFF control scheme and offers a design fl exible solution with a low system cost and extended power capability.
Specifications
Manufacturer: Power Integrations
Product Category: AC/DC Converters
RoHS: Details
Mounting Style: SMD/SMT
Package / Case: SMD-8
Output Voltage: 12 V
Output Power: 28.5 W
Input / Supply Voltage – Min: 85 VAC
Input / Supply Voltage – Max: 265 VAC
Switching Frequency: 132 kHz
Duty Cycle – Max: 65 %
Operating Supply Current: 630 uA
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 150 C
Series: TNY280
Packaging: Cut Tape
Packaging: Reel
Number of Outputs: 1 Output
Type: Off Line Converter
Brand: Power Integrations
Product Type: AC/DC Converters
Factory Pack Quantity: 1000
Subcategory: PMIC – Power Management ICs
Tradename: TinySwitch
Manufacturer Part Number: TNY280GN-TL
