Description

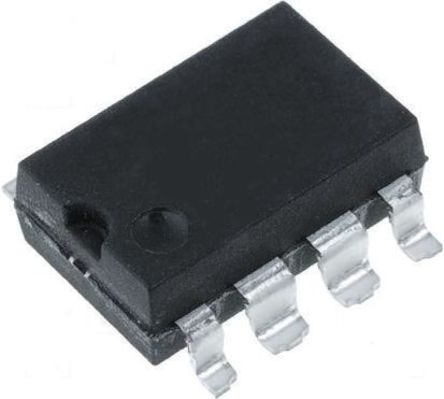

Power Integrations TOP258GN Intelligent Power Switch,
AC/DC Converters 35W/50W PK 85-264VAC 48W/77W PK (230V AC) Off Line Switcher, PDIP SMD
TOPSwitch-HX incorporates a 700 V power MOSFET, high voltage switched current source, PWM control, oscillator, thermal shutdown circuit, fault protection and other control circuitry onto a monolithic device.
Frequency Jitter Reduces EMI
EcoSmart Low Standby/No-load Power Consumption
Latching Output Overvoltage Protection
Line Undervoltage (UV) Lockout
Specifications
^
^ Power Switch Type Off Line Switcher
^ Power Rating 77W
^ Mounting Type Surface Mount
^ Package Type PDIP SMD
^ Pin Count 7
^ Dimensions 9.83 x 6.6 x 3.68mm
^ Length 9.83mm
^ Width 6.6mm
^ Height 3.68mm
^ Maximum Operating Temperature +150 C
^ Minimum Operating Temperature -40 C
Manufacturer:Electronic Components
Datasheet:Others/tophx_family_datasheet.pdf
