Description

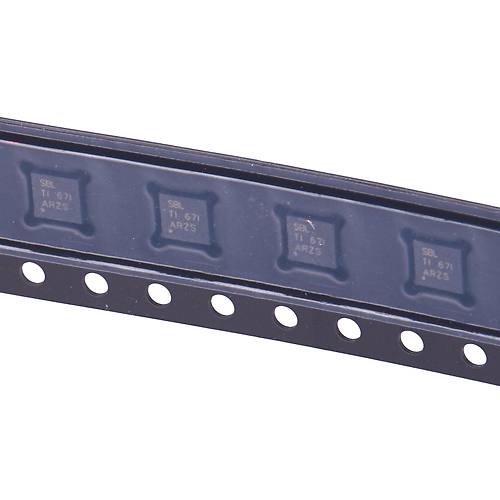

TPS61235PRWLR Texas Instruments Boost Switching Regulator IC Positive Fixed 5.1V 1 Output 6.5A (Switch) 9-VFQFN
The TPS61235 is a high current, high efficiency synchronous boost converter with constant output current feature for single cell Li-Ion and Li-polymer battery powered products, in a wide range of power bank, tablet, and other portable devices. The IC integrates 14-mO/14-mO power switches and is capable of delivering up to a 3.5-A output current for 3.3-V to 5-V conversion with up to 97% high efficiency. The device supports a programmable constant output current to control power delivery, so to save power path components and lower total system thermal dissipation effectively.
Specifications
Manufacturer: Texas Instruments
Product Category: Switching Voltage Regulators
RoHS
Mounting Style: SMD/SMT
Package / Case: VQFN-9
Output Voltage: 5.1 V
Output Current: 8 A
Number of Outputs: 1 Output
Input Voltage MAX: 4.5 V
Topology: Boost
Input Voltage MIN: 2.3 V
Switching Frequency: 1 MHz
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Series: TPS61235P
Packaging: Cut Tape
Packaging: Reel
Input Voltage: 2.3 V to 4.5 V
Operating Temperature Range: – 40 C to + 85 C
Quiescent Current: 5 uA
Type: Synchronous Boost Converter
Brand: Texas Instruments
Shutdown: Shutdown
Load Regulation: 0.06 %/A
Operating Supply Current: 10 uA
Product Type: Switching Voltage Regulators
Factory Pack Quantity: 3000
Subcategory: PMIC – Power Management ICs
Supply Voltage – Min: 2.3 V
Manufacturer Part Number: TPS61235PRWLR
Manufacturer: Texas Instruments
