Description

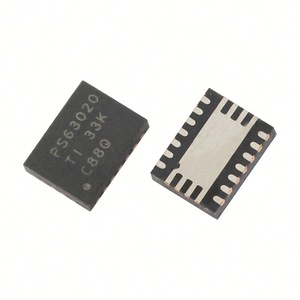

TPS63020DSJR Texas Instruments Buck-Boost Switching Regulator IC Positive Adjustable 1.2V 1 Output 3.5A (Switch) 14-VFDFN Exposed Pad
Specifications
Manufacturer: Texas Instruments
Product Category: Switching Voltage Regulators
RoHS
Mounting Style: SMD/SMT
Package / Case: VSON-14
Output Voltage: 1.2 V to 5.5 V
Output Current: 4 A
Number of Outputs: 1 Output
Input Voltage MAX: 5.5 V
Topology: Boost, Buck
Input Voltage MIN: 1.8 V
Switching Frequency: 2.4 MHz
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Series: TPS63020
Packaging: Cut Tape
Packaging: Reel
Input Voltage: 1.8 V to 5.5 V
Operating Temperature Range: – 40 C to + 85 C
Product: Voltage Regulators
Type: Voltage Converter
Brand: Texas Instruments
Shutdown: Shutdown
Development Kit: TPS63020EVM-487
Load Regulation: 0.5 %
Operating Supply Current: 50 uA
Product Type: Switching Voltage Regulators
Factory Pack Quantity: 3000
Subcategory: PMIC – Power Management ICs
Supply Voltage – Min: 1.8 V
Unit Weight: 0.001125 oz
Manufacturer Part Number: TPS63020DSJR
Manufacturer: Texas Instruments
