Description

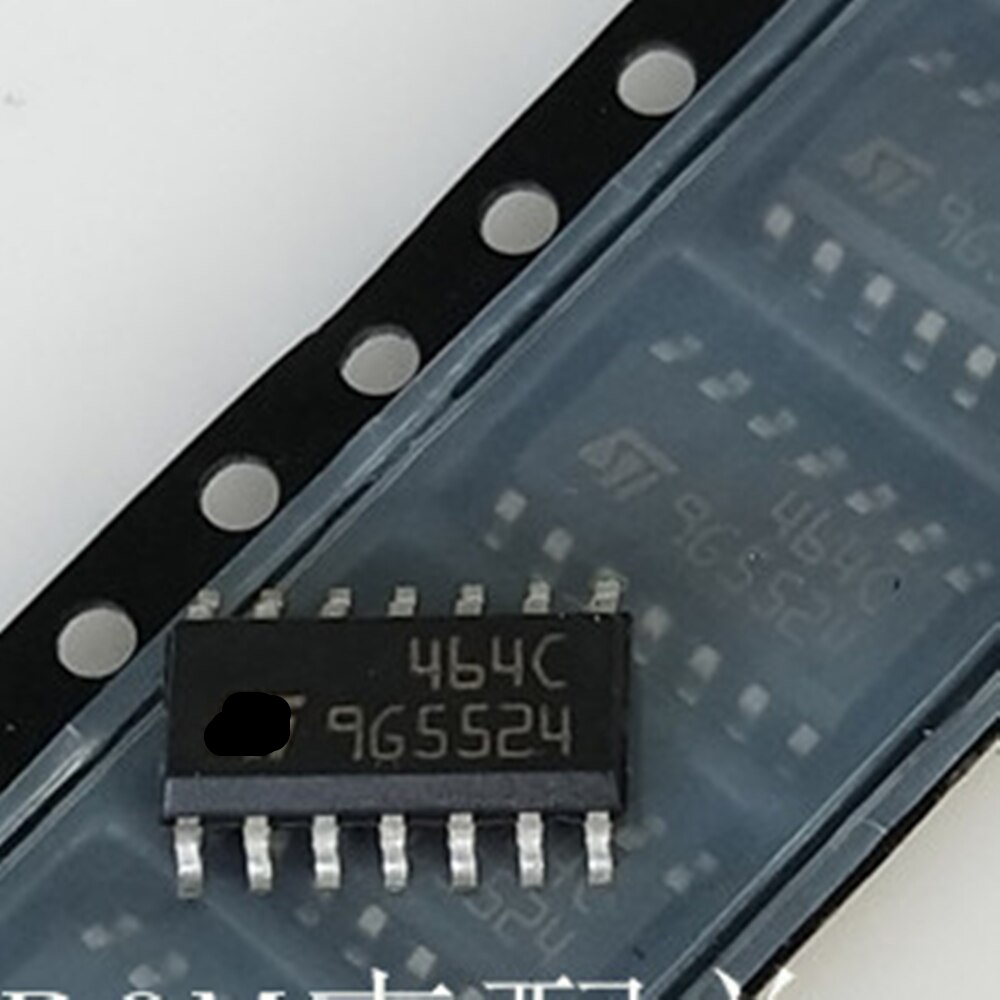

TS464CDT STMicroelectronics Operational Amplifier, 4 Amplifier, 12 MHz, 4 V/us, 2.7V to 10V, SOIC, 14 Pins SO-14 RoHS
Specifications
Manufacturer: STMicroelectronics
Product Category: Operational Amplifiers – Op Amps
Mounting Style: SMD/SMT
Package / Case: SO-14
Number of Channels: 4 Channel
Supply Voltage – Max: 10 V, +/- 5 V
GBP – Gain Bandwidth Product: 12 MHz
SR – Slew Rate: 4 V/us
Vos – Input Offset Voltage: 5 mV
Supply Voltage – Min: 2.7 V, +/- 1.35 V
Minimum Operating Temperature: – 20 C
Maximum Operating Temperature: + 70 C
Ib – Input Bias Current: 750 nA
Operating Supply Current: 11.2 mA
Shutdown: No Shutdown
CMRR – Common Mode Rejection Ratio: 60 dB
en – Input Voltage Noise Density: 4 nV/sqrt Hz
Series: TS464
Packaging: Cut Tape
Packaging: Reel
Amplifier Type: General Purpose Amplifier
Height: 1.65 mm (Max)
Length: 8.75 mm (Max)
Product: Operational Amplifiers
Supply Type: Single, Dual
Width: 4 mm (Max)
Brand: STMicroelectronics
Dual Supply Voltage: +/- 3 V
Maximum Dual Supply Voltage: +/- 5 V
Minimum Dual Supply Voltage: +/- 1.35 V
Operating Supply Voltage: 2.7 V to 10 V, +/- 1.35 V to +/- 5 V
Product Type: Op Amps – Operational Amplifiers
PSRR – Power Supply Rejection Ratio: 60 dB
Factory Pack Quantity: 2500
Subcategory: Amplifier ICs
Voltage Gain dB: 80 dB
Unit Weight: 0.009143 oz
Manufacturer: STMicroelectronics
MFG Part #: TS464CDT
