TUBING SLEEVING FIBERGLASS BLACK #10 FLEXICODE SIMILAR TO BENTLEY HARRIS 1151XL200
Reinforced Silicone Rubber Coated Fiberglass Sleeving
Temp Class: Class H (200° C)
Grades Available: A (8,000 V), C (2,500 V)
Material: Silicone Coated Fiberglass
Sizes Available: AWG #24 through 1″ I.D.
Colors Available: White, Amber, Black
Applicable Standards: UL Recognized Component and VW-1 Flame Rating under file no. E63446 (Grade A), NEMA TF-1 Type 5, MIL-I-3190/6 – QPL (Grade A)
Features
Highly resistant to cut-through and abrasion.
Exhibits high tear strength, good pushback and expandability, excellent flex life and fatigue resistance.
Resistant to inorganic acids, alkalis, and aliphatic hydrocarbons. Slight swelling may be produced by aromatic solvents and chlorinated hydrocarbons.
Ketones and esters may have a softening effect.
Product Description

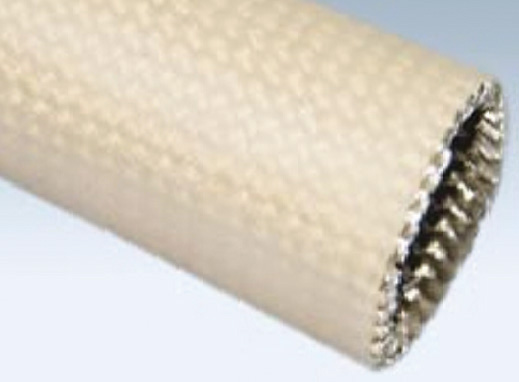

Ben-Har 1151-XL-200 is a reinforced silicone rubber coated fiberglass sleeving with outstanding mechanical and electrical properties. The specially formulated extrusion coating is highly resistant to cut-through and abrasion, making it ideal for heavy duty applications. It exhibits high tear strength, good push back and expandability, excellent flex life and fatigue resistance.
Suggested Applications
Ben-Har 1151-XL-200 is designed to be used where superior mechanical performance and high dielectric strength are needed, such as transformer lead protection, motor coil leads, component isolation and power supply wiring.
Sizes Available
Inside Diameter, in. (mm)
Size Maximum Minimum Nominal I.D.
24 AWG 0.027 (0.69) 0.020 (0.51) 0.022
22 AWG 0.032 (0.81) 0.025 (0.64) 0.027
20 AWG 0.039 (0.99) 0.032 (0.81) 0.034
19 AWG 0.044 (1.11) 0.036 (0.91) 0.040
18 AWG 0.049 (1.25) 0.040 (1.02) 0.042
17 AWG 0.054 (1.37) 0.045 (1.14) 0.047
16 AWG 0.061 (1.55) 0.051 (1.30) 0.053
15 AWG 0.067 (1.70) 0.057 (1.45) 0.059
14 AWG 0.074 (1.88) 0.064 (1.63) 0.066
13 AWG 0.082 (2.08) 0.072 (1.83) 0.076
12 AWG 0.091 (2.31) 0.081 (2.06) 0.085
11 AWG 0.101 (2.60) 0.091 (2.31) 0.095
10 AWG 0.112 (2.80) 0.102 (2.60) 0.106
9 AWG 0.124 (3.20) 0.114 (2.90) 0.118
8 AWG 0.141 (3.60) 0.129 (3.30) 0.133
7 AWG 0.158 (4.00) 0.144 (3.70) 0.148
6 AWG 0.178 (4.50) 0.152 (4.10) 0.166
5 AWG 0.198 (5.00) 0.182 (4.60) 0.186
4 AWG 0.224 (5.70) 0.204 (5.20) 0.208
3 AWG 0.249 (6.30) 0.229 (5.80) 0.234
2 AWG 0.278 (7.10) 0.258 (6.60) 0.263
1 AWG 0.311 (7.90) 0.289 (7.30) 0.294
0 AWG 0.347 (8.80) 0.325 (8.30) 0.330
3/8″ 0.399 (10.10) 0.375 (9.50) 0.375
7/16″ 0.462 (11.70) 0.438 (11.10) 0.438
1/2″ 0.524 (13.30) 0.500 (12.70) 0.500
5/8″ 0.655 (16.70) 0.625 (15.90) 0.625
3/4″ 0.786 (20.00) 0.750 (19.10) 0.750
7/8″ 0.911 (23.20) 0.875 (22.20) 0.875
1″ 1.036 (26.30) 1.000 (25.40) 1.000
Manufacturer Part Number: J269001-010
Manufacturer: Electronic Components
