Description

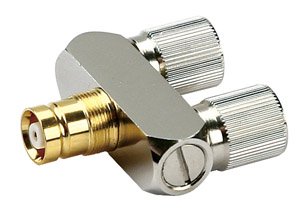

U-Link Adaptor 1.6/5.6 Plug To Plug Connector
PLUG Coax RF Connector They are widely used in connection with RF coaxial cables in computer field, network of wireless, medical equipment and electronic instrument.
U-Link Connector Adaptor
Electrical
Characteristic Impedance 50ohm
Frequency Range DC-4GHz
VSWR ?1.30@DC-1000MHz
Insertion Loss ?0.2dB
Working Voltage 500V RMS,50Hz,at sea level
Dielectric Withstanding Voltage ?1500V RMS,50Hz,at sea level
Dielectric Resistance ?5000M?
Contact Resistance Center Contact ?1.5m? Outer Contact ?1.0 m?
Mechanical
Durability Mating cycles ?500
Material and Plating
Parts Name Material Plating
Body Brass Ni
Inner Conductor Phosphor Bronze Au
Environmental
Operating Temperature _45 ºC to 85 ºC
Weatherproof Rate IP67
RoHs (2002/95/EC) Compliant by exemption
Manufacturer Part Number: 3107
