Description
Global Connector Technology USB3131-30-0230-A Connector Micro USB Type B RCP 5 POS 1.3mm Solder ST Thru-Hole 5 Terminal 1 Port T/R

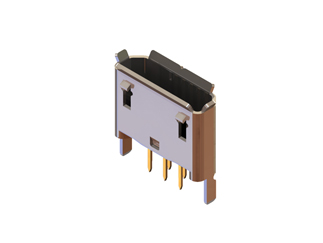

The USB3131-30-0230-A is a vertical Micro USB Type-B Receptacle with 30inch gold-plated copper alloy contacts. It supports USB 2.0 version, 2.3mm shell stake length, 5 positions and through hole mount.
30m? Maximum contact resistance
1000MO Minimum insulating resistance
10000-cycle Mechanical durability
Applications
Computers & Computer Peripherals
Series: USB3131
Product Family: USB 2.0 Connector
Connector style: Micro
Interface: B
USB version: 2.0
Gender: Receptacle
Number of contacts: 5
PCB mount type: Through hole
Orientation: Vertical
Entry type: Top
Profile: 5.60mm
Mount position: Top mount
Mating face style: With mating face lead in
Shell stake: Through hole
Shell stake lengths: 2.30mm (for 1.60mm PCB)
Locating Peg: Without locating peg
Mating Cycles: 10000
Manufacturer: Electronic Components
MFG Part #: USB3131-30-0230-A
