Description

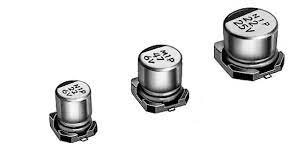

UWT1H010MCL2GB Nichicon Automotive Aluminum Electrolytic Capacitor 1uF 50V 20% (3 X 5.4mm) SMD 5.9mA 1000h 105C T/R Radial Can RoHS
Specifications
Manufacturer: Nichicon
Product Category: Aluminum Electrolytic Capacitors – SMD
Packaging: Reel
Packaging: Cut Tape
Series: UWT
Product: Aluminum Electrolytic Capacitors
Capacitance: 1 uF
Voltage Rating DC: 50 VDC
Tolerance: 20 %
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 105 C
Diameter: 3 mm
Length: 5.4 mm
Height: 5.4 mm
Life: 1000 Hour
Ripple Current: 5.9 mA
Qualification: AEC-Q200
Brand: Nichicon
Capacitance – nF: 1000 nF
Dissipation Factor DF: 0.14
Lead Spacing: 0.8 mm
Leakage Current: 480 uA
Product Type: Electrolytic Capacitors
Subcategory: Capacitors
Termination Style: SMD/SMT
Type: Aluminum Capacitors SMD (Chip), High Temperature
Unit Weight: 0.026635 oz
Lifecycle:Obsolete
Manufacturer: Nichicon
MFG Part #: UWT1H010MCL2GB
