Description

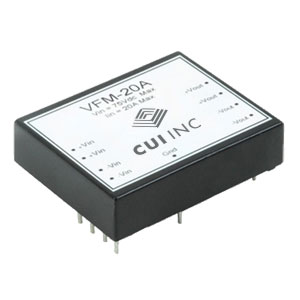

CUI Inc. VFM-20A DC EMI FILTER MODULE 75V 20A
Specifications
-
Input Voltage (Vdc)75
-
Dimensions LxWxH (in)2 x 2 x 0.46
-
Dimensions LxWxH (mm)50.8 x 50.8 x 11.68
Category Filters
Family Power Line Filter Modules
Series VFM-XX
Filter Type DC
Configuration Two Stage
Voltage – Rated DC 100V
Voltage – Rated AC –
Current 20A
Frequency – Operating –
Mounting Type Through Hole
Termination Style PCB Pins
Applications General Purpose
Approvals –
Operating Temperature -40°C ~ 100°C
100 W, 4:1 Input Range, Single Regulated Output, 1/2 Brick, 1500 Vdc Isolation, Dc-Dc Converter
150 W, 4:1 Input Range, Single Regulated Output, 1/2 Brick, 1500 Vdc Isolation, Dc-Dc Converter
200 W, 4:1 Input Range, Single Regulated Output, 1/2 Brick, 1500 Vdc Isolation, Dc-Dc Converter
50 W, 4:1 Input Range, Single Regulated Output, 1/2 Brick, 1500 Vdc Isolation, Dc-Dc Converter
75 W, 4:1 Input Range, Single Regulated Output, 1/2 Brick, 1500 Vdc Isolation, Dc-Dc Converter
Manufacturer:CUI
Datasheet:vfm-xx.pdf
