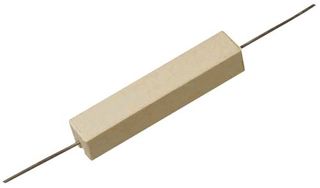

Vishay Dale CP001010R00JE14 Wirewound Resistors 10watts 10ohms 5%
WIREWOUND RESISTOR, 10 OHM, 10W, 5%, Product Range:CP Series, Resistance:10ohm, Power Rating:10W, Resistance Tolerance: 5%, Voltage Rating:-, Resistor Case Style:Axial Leaded, Resistor Element Type:Wirewound, No. of Pins:2 , RoHS
^Manufacturer: Vishay
^Product Category: Wirewound Resistors – Through Hole
^RoHS: RoHS Compliant Details
^Brand: Vishay / Dale
^Termination Style: Axial
^Resistance: 10 Ohms
^Power Rating: 10 W
^Tolerance: 5 %
^Temperature Coefficient: 300 PPM / C
^Operating Temperature Range: – 65 C to + 275 C
^Height: 8.73 mm
^Lead Diameter: 0.914 mm
^Length: 47.62 mm
^Packaging: Bulk
^Product: Power Resistors Wirewound Inorganic Potting Compound
^Series: CP
^Factory Pack Quantity: 1
^Type: Wirewound/Metal Oxide Resistor Commercial Power Axial Lead
^Width: 9.52 mm
Features, Applications
Wirewound/Metal Oxide Resistors, Commercial Power, Axial Lead
FEATURES
· High performance for low cost· High power to size ratio· Ceramic cases are available with circuit board stand-offs (designated with a…3 model ending)· Special cement potting compound and ceramic case provide high thermal conductivity in a fireproof package· Compliant to RoHS Directive 2002/95/EC
PARAMETER Temperature Coefficient Short Time Overload Terminal Strength Operating Temperature Range Dielectric Withstanding Voltage Maximum Working Voltage UNIT ppm/°C lb °C VAC V WIREWOUND CHARACTERISTICS 5 x rated power for s 10 minimum x R)1/2 METAL OXIDE CHARACTERISTICS 5 x rated power for s 10 minimum x R)1/2
SPECIAL (Dash Number) (up to 3 digits) From 999 as applicable
GLOBAL MODEL (See Standard Electrical Specifications Global Model column for options)
Please see document “Vishay Material Category Policy”: www.vishay.com/doc?99902 www.vishay.com 44 For technical questions, contact: ww2aresistors@vishay.com Document Number: 30113 Revision: 10-Jan-11
Notes (1) Potting compound may extend outside of ceramic case 0.060 [1.52] maximum per side.
Element: Wirewound = Copper-nickel alloy or nickelchrome alloy, depending on resistance value Metal Oxide = High temperature fired metal oxide film Core: Wirewound = Woven fiberglass Metal Oxide = Ceramic Body: Steatite ceramic case with inorganic potting compound End Caps: Tin plated steel Terminals: Tinned copper Part Marking: DALE, model, wattage, value, tolerance, date code
TEST Thermal Shock Short Time Overload Dielectric Withstanding Voltage Low Temperature Storage Humidity Load Life Terminal Strength Resistance to Solder Heat 5 x rated power for s 1000 VRMS, for 1 min – 65 °C, full rated working voltage for 45 min 75 °C, 100 % RH, h at rated power, + 25 °C, 1.5 h “ON”, 0.5 h “OFF” 5 pounds for 30 s; body twisted about axis, x 360° rotations Terminal immersed s in molten solder to 3/16″ from body CONDITIONS OF TEST 225 °C for Metal Oxide), 5 cycles, 30 min dwell time TEST LIMITS (EIA-344)
Manufacturer:Vishay
Datasheet:Vishay/1749868.pdf
