Description

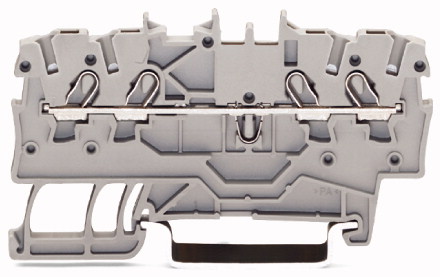

4-conductor through terminal block suitable for Ex e II applications
Packing unit 100 pieces
RoHS compliant
Weight 0.97 g
Cross section [mm²] 0.14 – 1 mm²
Cross section [AWG] 24 – 16 AWG
Connection method CAGE CLAMP®S Connection
Cross section [mm²] 0.14 – 1.5 mm²
Cross section [AWG] 24 – 16 AWG
Wiring method s + f-st
Connection method CAGE CLAMP®S Connection
Measured voltage EN 800 V
Measured shock voltage 6 kV
Pollution degree 3
Current intensity EN 13.5 A
Current intensity EN 18 A
Color orange
Wiring type Front-entry
No. of connection Points 4
No. of potentials 1
Height 33 mm
Height 1.299 in
Width 3.5 mm
Width 0.138 in
Depth 67.9 mm
Depth 2.673 in
Strip length from 9 mm
Strip length to 11 mm
Strip length 0.39 in
Country of Origin Deutschland
Mounting TS 35
Manufacturer Part Number: 2000-1402
Wago
