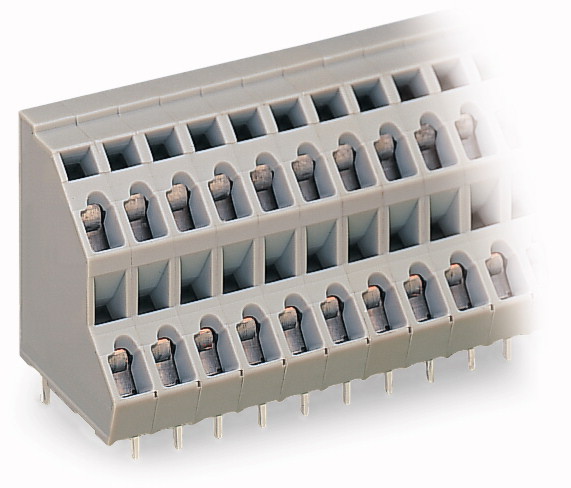

WAGO 736-104 Double-deck PCB terminal block; 2.5 mm²; Pin spacing 5 mm; 2 x 4-pole; CAGE CLAMP®
Terminal strips with screwdriver-actuated CAGE CLAMP®
High-density, double-deck design for space-efficient wiring of multiple conductors in confined areas
Custom inkjet marking for all termination levels
Terminal strips with commoning strips for distribution of potential
| Name | Value | Unit |
| Packaging type | BOX | |
| Ratings per | IEC/EN 60664-1 | |
| Ratings note | Between the modules | |
| Rated voltage (III / 3) [V] | 250 | V |
| Rated impulse voltage (III / 3) [kV] | 4 | kV |
| Rated voltage (III/2) [V] | 320 | V |
| Rated impulse voltage (III / 2) [kV] | 4 | kV |
| Rated voltage (II / 2) [V] | 630 | V |
| Rated impulse voltage (II / 2) [kV] | 4 | kV |
| Rated current [A] | 21 | A |
| Ratings according to 2 | IEC/EN 60664-1 | |
| Ratings note 2 | Between the decks | |
| Rated voltage (III / 3) 2 [V] | 320 | V |
| Rated impulse voltage (III / 3) 2 [kV] | 4 | kV |
| Rated voltage (III / 2) 2 [V] | 320 | V |
| Rated impulse voltage (III / 2) 2 [kV] | 4 | kV |
| Rated voltage (II / 2) 2 [V] | 630 | V |
| Rated impulse voltage (II / 2) 2 [kV] | 4 | kV |
| Rated current (2) [A] | 21 | A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | |
| Approvals per | UL 1059 | |
| Rated voltage UL (Use Group B) [V] | 300 | V |
| Rated current UL (Use Group B) [A] | 10 | A |
| Rated voltage UL (Use Group D) [V] | 300 | V |
| Rated current UL (Use Group D) [A] | 10 | A |
| Rated voltage CSA (Use Group B) [V] | 300 | V |
| Rated current CSA (Use Group B) [A] | 10 | A |
| Rated voltage CSA (Use Group D) [V] | 300 | V |
| Rated current CSA (Use Group D) [A] | 10 | A |
| Total number of potentials | 8 | |
| Number of connection types | 1 | |
| Number of levels | 2 | |
| Connection technology | CAGE CLAMP® | |
| Number of connection points (connection type) | 1 | |
| Actuation type | Operating tool | |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG | |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG | |
| Fine-stranded conductor with ferrule with plastic collar | 0.25 … 1.5 mm² / … | |
| Fine-stranded conductor with ferrule without plastic collar | 0.25 … 2.5 mm² / … | |
| Strip length | 5 … 6 mm / 0.2 … 0.24 Inch | |
| Conductor entry angle to the PCB [°] | 45 | ° |
| Pin spacing | 5 mm (0.197 in) | |
| Width | 21 mm / 0.827 Inch | |
| Height | 30.5 mm / 1.201 Inch | |
| Height from the surface | 26.5 mm / 1.043 Inch | |
| Depth | 21 mm / 0.827 Inch | |
| No. of poles | 4 | |
| Solder pin arrangement | within the terminal block, in line | |
| Solder pin length [mm] | 4 | mm |
| Solder pin dimensions | 0.7 x 0.7 mm | |
| Drilled hole diameter (tolerance) [mm] | 1.3(+ 0.1) | mm |
| PCB contact | THT | |
| Total number of connection points | 8 | |
| Number of solder pins per potential | 1 | |
| Color | gray | |
| Material group | I | |
| Insulating material | Polyamide 46 (PA 46) | |
| Flammability class per UL94 | V0 | |
| Clamping spring material | Chrome nickel spring steel (CrNi) | |
| Contact material | Electrolytic copper (Ecu) | |
| Contact plating | tin-plated | |
| Fire load [MJ] | 0.149 | MJ |
| RoHS Conformity | 1 | |
| Weight [g] | 9.487 | g |
| Limit temperature range | -60 … 105 °C |
