Description

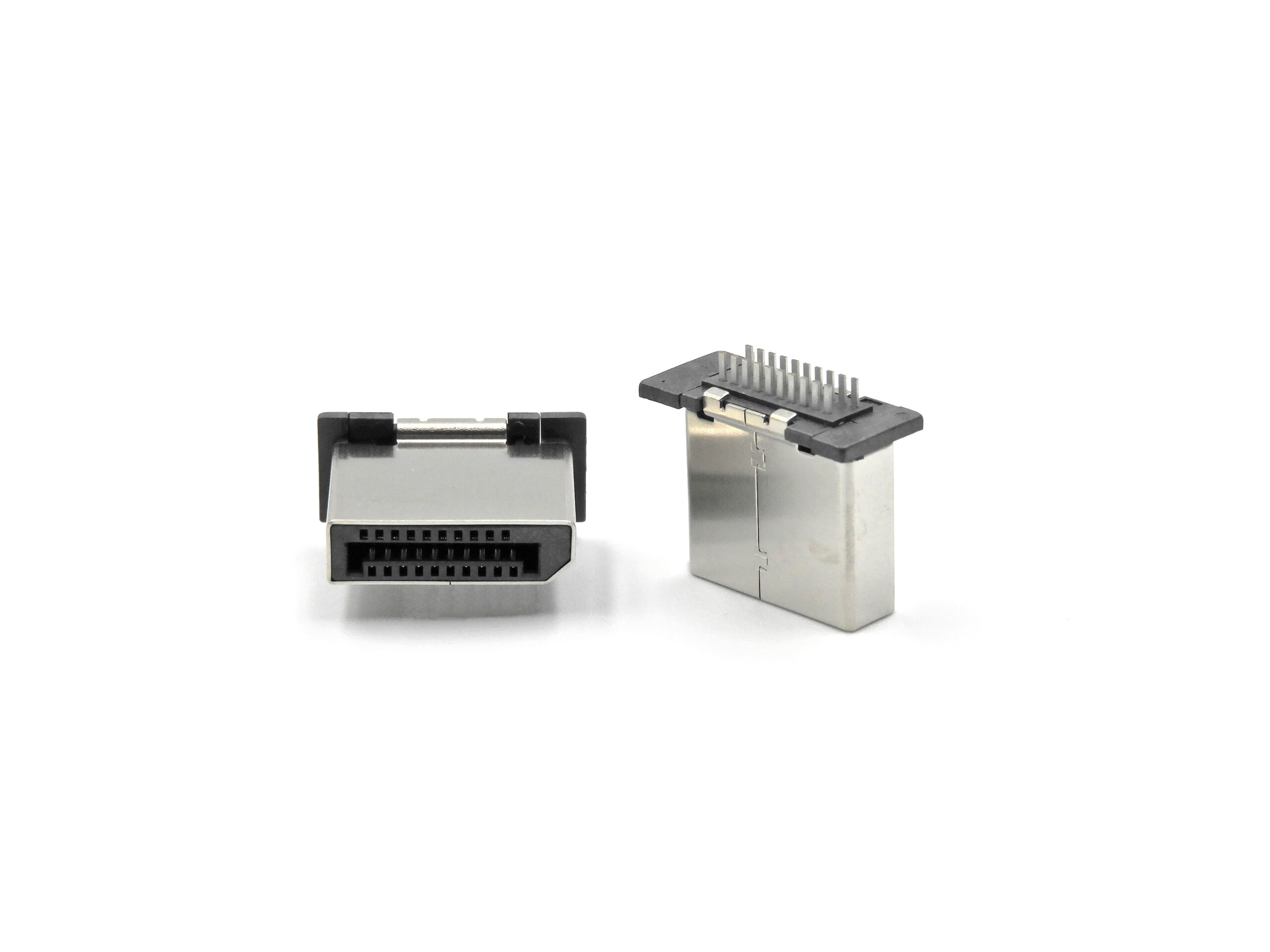

WDPC-20D1NNPU3 WinWin Connector DisplayPort DP-20 Pin, Vertical plug , non-Lock key, for cable use RoHS
Material
Housing & Plug: LCP, UL 94V-0
Shell: Brass
Plating: Ni(40u” Min.) Plating
Contact: Phosphor Bronze
Plating: Au plating on contact area
Sn(100u” Min.) plating on solder tail
Ni(40u” Min.) underplating overall
Current Rating: 0.5 Ampere per contact
Contact Resistance: 30 m? Max.
Insulation Resistance: 100 M? Min.
Dielectric Withstanding Voltage: 500 VAC
Operation Voltage: 40 VAC Max.
Operating Temperature: -20C to +85C
Manufacturer: Electronic Components
MFG Part #: WDPC-20D1NNPU3
