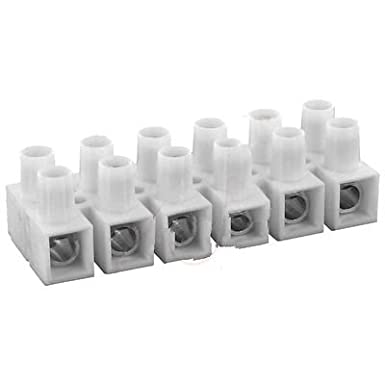

327-HDS/06 V0 WECO Connector Terminal Strip Euro 6Position 14.5 mm Double Row 14-6 AWG 65 A (UL) 600 V
Terminal Block, Feed Through Standoff Feet Eurostrips Panel Mount, 18 – 6 AWG Series 300 terminal strips are used for connecting stripped, unterminated, solid or stranded copper wires, ranging from 6 to 26 AWG depending on the product selected. Each strip has 12 circuits and can be easily cut to the required number of poles. Mounting holes are provided between each circuit. Captive screws are backed out and ready for wiring. Each circuit has a wire protector to prevent damage to the wire from the turning screw. All metal parts are completely recessed in the flexible polyamide moulding. This dead front design ensures safety and prevents short circuiting. The -FU designation provides a higher profile and therefore higher creepage distance to meet certain VDE design requirements. Specifications . Insulating Material: Polyamide, self extinguishing to UL 94, V-0 or V-2, natural. Temperature Limits: Short time – 140°C/284°F; Continuous – RTI 105°C/221°F; Low Limit – –40°C/–40°F. Comparative Tracking Index: CTI >600. Oxygen Index Rating: 25% (33% for Types 326 and 327). Approvals : UL File E69841. CSA File LR24322. Due to high resistance to vibrations, these terminal strips serve in applications using line voltage motors or in construction vehicle. Terminal strips are also used in Heating⁄ventilation⁄air conditioning (HVAC) products.
Agency Approvals UL ; CSA ; VDE
Application Due to high resistance to vibrations, these terminal strips serve in applications using line voltage motors or in construction vehicle. Terminal strips are also used in Heating⁄ventilation⁄air conditioning (HVAC) products.
Color White
Current Rating 80 A
Dimensions 30mm W x 28.5mm H
Number of Poles 6 Pole
Number of Rows Double Row
Pin Spacing 0.571 in. (14.5mm)
Series 327 Series
Special Features High Voltage
Stripping Length 9 mm
Torque 2 Nm (Max.) (CSA)
Type Euro
Voltage Rating 300 V
Wire Size 14-4 AWG
Weco 300 Family — 327 Series type HDS | Terminal Strips for Panel / Chassis Mounting:
Weco’s 300 Family of Series terminal strips are designed to provide a secure wire clamping termination that meets all applicable European standards. The use of a shrouded molding design as well as captive screws are part of a “finger-safe” Euro-style design. As manufacturers globalize their product lines, they are simplifying their inventory by making products that use termination systems that are acceptable everywhere.
The strips are available with stainless steel spring-type wire protectors (HDS designation) to prevent wiring damage by the clamping screws we recommend the use of the wire protector option especially for stranded wiring. The HDS option provides high resistance to vibrations. The 300 series provides long lasting, vibration-resistant terminations for current loads of up to 85A.
Some of the series carry an N designation indicating they have a lower profile when space is a concern. The FU designation provides a raised base that facilitates wire insertion under cramped conditions. The relatively flexible polyamide molding can be mounted on uneven surfaces the North American style barrier strips are usually made of a more rigid and brittle thermoset material.
Features:
- Standard version
- Recommended mounting hardware: M4 pan head screw (#8-32 pan head screw) or similar sized sheet metal screw, self-tapping screw or rivet
- Terminal Body: Nickel-plated copper alloy, Stainless steel strip
- Screw: Slotted head, zinc plated blue passivated, steel substrate M5
Applications:
- The panel and chassis mounted series are ideal for connecting electrical control panels to external power sources, signal sources, other electrical panels and electrical loads of many types and sizes. The electrical panel’s or electrical enclosure’s internal components and circuitry are connected to their appropriate external electrical circuitry through these terminal blocks. The screw tightened connections result in high contact forces thus promoting safe wire secureness and retention, low electrical resistance and safe reusable connections. All wire retention screws are captive in their towers and they cannot fall out during transportation, installation and use. Wire protectors are available to protect small gauge stranded wires from screw damage.
- These terminal strips can be completely enclosed within the enclosures or be placed at an enclosure opening with one side accessible for external cabling and the other for internal wiring. They can be specially marked to your specifications.
Manufacturer Part Number: 327-HDS/06-V0
