Description

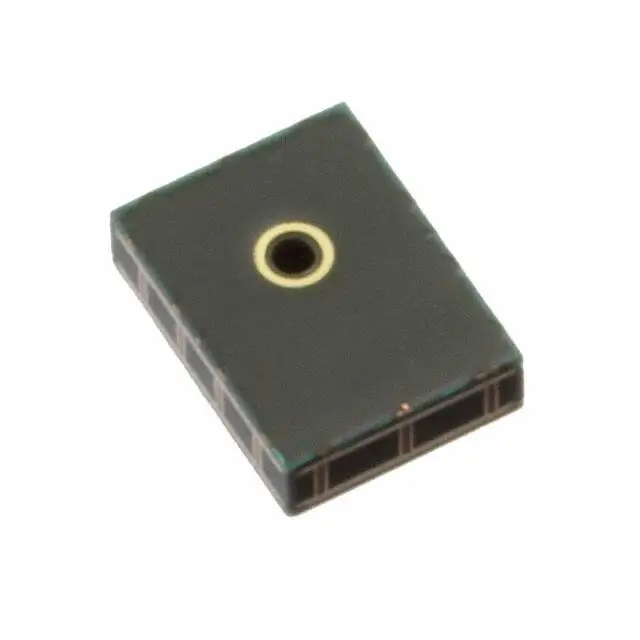

WM7216IMSE/RV Cirrus Logic MEMS Microphones Low Power Top Port Digital Microphone 62Hz – 12kHz Digital, PDM Microphone MEMS (Silicon) 1.62 – 2V Omnidirectional (-26dB 1dB @ 94dB SPL) Solder Pads
Attributes
Categories Audio Products
Microphones
Manufacturer Cirrus Logic Inc.
Series WM7216E
Type MEMS (Silicon)
Output Type Digital, PDM
Direction Omnidirectional
Frequency Range 62Hz – 12kHz
Sensitivity -26dB +-1dB at 94dB SPL
S/N Ratio 63dB
Voltage – Rated 1.8V
Voltage Range 1.62 – 2V
Current – Supply 980uA
Port Location Top
Termination Solder Pads
Size / Dimension 0.157″ L x 0.118″ W (4.00mm x 3.00mm)
Height (Max) 0.043″ (1.10mm)
Shape Rectangular
Manufacturer Part Number: WM7216IMSE/RV
Manufacturer: Electronic Components
