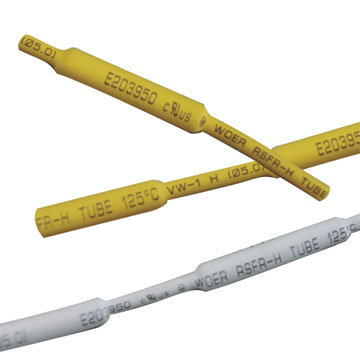

Woer Zero halogen flexible Heat shrink tubing W-1-H(RSFR-H)
Description: Zero halogen,flexible Heat shrink tubing
Features
1. Flexible
2. Zero halogen
3. Flame retardant
4. Low smoke generation if burning
5. Continuous Operating Temperature:-45?to125?
6. Shrink Temperature:120?
7. RoHS and Sony compliant
Dimensions
|
Size |
As supplied |
After Recovery(mm) |
Standard Package |
||
|
Inch |
mm |
Internal diameter(mm) |
Internal diameter Max(mm) |
Wall thickness Nom(mm) |
Spool Length m/spool |
|
3/64 |
0.8 |
1.1±0.2 |
0.50 |
0.22 |
200 |
|
1/16 |
1.0 |
1.5±0.2 |
0.65 |
0.28 |
200 |
|
|
1.5 |
2.0±0.2 |
0.85 |
0.32 |
200 |
|
3/32 |
2.0 |
2.5±0.2 |
1.00 |
0.35 |
200 |
|
|
2.5 |
3.0±0.2 |
1.30 |
0.38 |
200 |
|
1/8 |
3.0 |
3.5±0.2 |
1.50 |
0.40 |
200 |
|
|
3.5 |
4.0±0.2 |
1.80 |
0.42 |
200 |
|
|
4.0 |
4.5±0.2 |
2.00 |
0.45 |
200 |
|
3/16 |
4.5 |
5.0±0.2 |
2.30 |
0.50 |
200 |
|
|
5.0 |
5.5±0.2 |
2.5 |
0.55 |
100 |
|
1/4 |
6.0 |
6.5±0.2 |
3.0 |
0.55 |
100 |
|
5/16 |
7.0 |
7.5±0.3 |
3.5 |
0.55 |
100 |
|
|
8.0 |
8.5±0.3 |
4.0 |
0.60 |
100 |
|
3/8 |
9.0 |
9.5±0.3 |
4.5 |
0.60 |
100 |
|
|
10.0 |
10.5±0.3 |
5.0 |
0.60 |
100 |
|
|
11.0 |
11.5±0.3 |
5.5 |
0.60 |
100 |
|
1/2 |
12.0 |
12.5±0.3 |
6.0 |
0.60 |
100 |
|
|
13.0 |
13.5±0.3 |
6.5 |
0.65 |
100 |
|
|
14.0 |
14.5±0.3 |
7.0 |
0.65 |
100 |
|
5/8 |
15.0 |
15.5±0.4 |
7.5 |
0.70 |
100 |
|
|
16.0 |
16.5±0.4 |
8.0 |
0.70 |
100 |
|
|
17.0 |
17.5±0.4 |
8.5 |
0.70 |
100 |
|
3/4 |
18.0 |
19.0±0.5 |
9.0 |
0.80 |
100 |
|
|
20.0 |
21.0±0.5 |
10.0 |
0.80 |
100 |
|
|
22.0 |
23.0±0.5 |
11.0 |
0.80 |
100 |
|
1 |
25.0 |
26.0±0.5 |
12.5 |
0.90 |
50 |
|
|
28.0 |
29.0±0.5 |
14.0 |
0.90 |
50 |
|
1-1/4 |
30.0 |
31.5±1.0 |
15.0 |
0.95 |
50 |
|
|
35.0 |
36.5±1.0 |
17.5 |
1.00 |
50 |
|
1-1/2 |
40.0 |
41.5±1.0 |
20.0 |
1.00 |
50 |
|
|
45.0 |
46.5±1.0 |
22.5 |
1.00 |
25 |
|
2 |
50.0 |
≥50 |
25.0 |
1.00 |
25 |
|
|
60.0 |
≥60 |
31.0 |
1.30 |
25 |
|
|
70.0 |
≥70 |
36.0 |
1.30 |
25 |
|
3 |
80.0 |
≥80 |
41.0 |
1.46 |
25 |
|
|
90.0 |
≥90 |
46.0 |
1.46 |
25 |
|
4 |
100.0 |
≥100 |
51.0 |
1.46 |
25 |
|
5 |
120.0 |
≥120 |
61.0 |
1.56 |
25 |
|
6 |
150.0 |
≥150 |
76.0 |
1.56 |
25 |
|
7 |
180.0 |
≥180 |
91.0 |
1.56 |
25 |
Technical Date: Physical
|
Property |
Test Method |
Typical Performance |
|
Tensile Strength(Mpa) |
ASTM D2671 |
10.4MPa |
|
Elongation(%) |
ASTM D2671 |
200% |
|
Tensile Strength after Heat aging |
UL224 158? X168hrs |
≥7.3 |
|
Elongation after aging(%) |
UL224 158º? X168hrs |
≥100 |
|
Heat shock |
UL224 225º? X4hrs |
No dripping No cracking |
Electrical
|
Property |
Test Method |
Typical Performance |
|
Dielectric Strength |
IEC 243 |
≥15kv/mm |
|
Volume Resistivity |
IEC 93 |
≥1×1014Ω·? |
Chemical
|
Property |
Test Method |
Typical Performance |
|
Corrosion Action |
UL224 158? X168hrs |
PASS |
|
Copper Compatibility |
UL224 158? X168hrs |
PASS |
Manufacturer:Electronic Components
Datasheet:WOER-Heat-Shrink-Tubing.pdf
