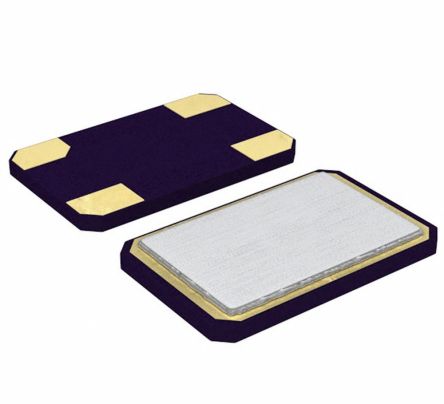

Description
Ultra thin, thickness 1.0mm
Leadless type
High precision characteristic covering up to high
frequency range
Designed for automatic mounting and reflow soldering
Embossed tape packaging
The best choice of Bluetooth wireless communication
sets. DSN, PDA and mobile phone.
Output Frequency Range 40.000MHz
Mode Fundamental/AT
Frequency Tolerance (at 25C) 30ppm
Frequency Stability Over Operating Temperature Characteristics 30ppm
Operating Temperature Range -40C~+85C
Storage Temperature Range -55C~+125C
Shunt Capacitance (C0) 5.0pF Max
Driver Level (Typical) 100uW Max
Load Capacitance(CL) 8pF
Aging @25C 1st year 3ppm Max
ESR 60ohm Max
Manufacturer:Electronic Components
Datasheet:WTL2M25423CH.PDF
