Description

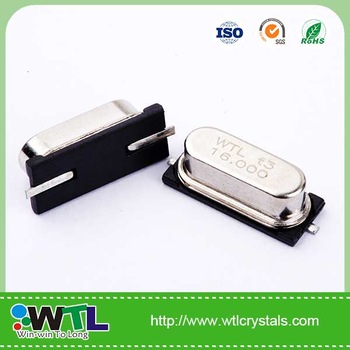

Height 4.0mm, or 3.0mm, compact unit for surface mount
Able to by means of a metal case and completely sealed high
solution characteristics
Copes with high density mounting and is the optimum for mass
production
ELECTRICAL SPECIFICATIONS
Nominal frequency 8.192MHz
Oscillation mode See below table
Operating temperature range -20C+70C
Storage temperature range -40C+85C
Frequency tolerance 20ppm
Freq. Temp characteristics 50ppm
Load capacitance 18pF
Equivalent series resistance See below table
Parallel capacitance(Co) 7PF Max
Drive level 100 uW Typical
Insulation resistance
More than 500Mohm AT DC100V
Manufacturer:Electronic Components
Datasheet:WTL9M25422CH.PDF
