Description

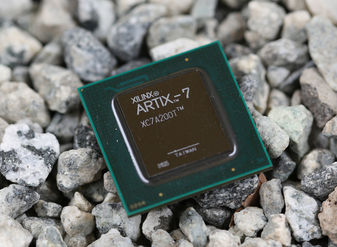

XC7A200T-2FBG484C Xilinx FPGA Artix-7 Family 215360 Cells 28nm Technology 1V 484-Pin FCBGA
Technical Attributes
Device Logic Units 134600
Interface Standards FMC HPC; I2C; Pmod; XADC; SMA; SFP
Ethernet Yes
Audio I/O No
GPIO Yes
Lead Finish Tin|Silver|Copper
Speed Grade 2
Memory Size 1GB
Mounting Surface Mount
Maximum Operating Supply Voltage 1.05 V
RAM Bits 13455360 Bit
Device Logic Cells 215360
Screening Level Commercial
Configuration Memory 32MB QSPI
Product Dimensions 23 x 23 x 1.84
Max Processing Temp 250
Number of Registers 269200
MSL Level 4
Maximum Number of User I/Os 285
Memory Card Interface SD Card
PCIe PCIe
Memory Type DDR3
USB USB-Serial Bridge
Display Mode HDMI Output; LCD Display (2 x 16)
Fabrication Technology 28nm
Supplier Package FCBGA
Minimum Operating Supply Voltage 0.95 V
Typical Operating Supply Voltage 1 V
Re-programmability Support Yes
Pin Count 484
Operating Temperature 0 to 85C
Maximum Propagation Delay Time 0.11 ns
Manufacturer Part Number: XC7A200T-2FBG484C
Manufacturer: Electronic Components
