Description

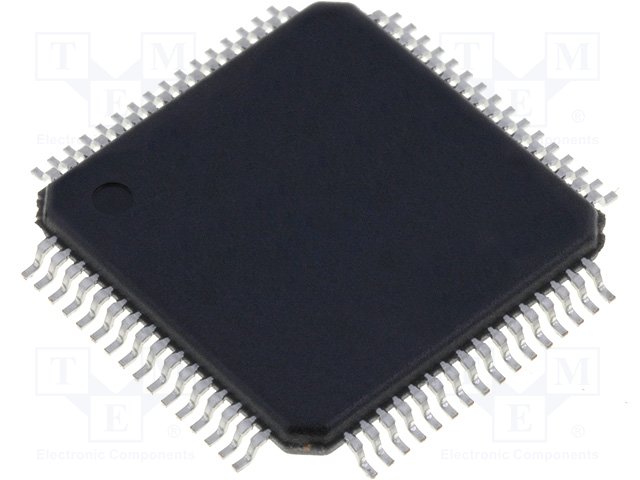

XC9572XL-10VQG64C Xilinx IC CPLD, 53 I/O:52; 3-3.6VDC; Amount of macrocells:72; 10ns; SMD 64VQFP
The XC9500XL architectural features address the requirements of in-system programmability. Enhanced pin-locking capability avoids costly board rework. In-system programming throughout the full commercial operating range and a high programming endurance rating provide worry-free reconfigurations of system field upgrades. Extended data retention supports longer and more reliable system operating life.
Technical Attributes
Mounting Surface Mount
Operating Temperature 0 to 70C
Maximum Operating Supply Voltage 3.6V
Minimum Operating Supply Voltage 3V
Pin Count 64
Typical Operating Supply Voltage 3.3V
Product Dimensions 10 x 10 x 1 mm
Speed Grade 10
Re-programmability Support No
Screening Level Commercial
Max Processing Temp 260
MSL Level 3
Memory Type Flash
Maximum Propagation Delay Time 10 ns
Number of User I/Os 52
Fabrication Technology 0.35um (CMOS)
Maximum Operating Frequency 100 MHz
Supplier Package VTQFP
Maximum Internal Frequency 111.1 MHz
Lead Finish Matte Tin
Manufacturer:Xilinx
Datasheet:Xilinx/ds057.pdf
