Description

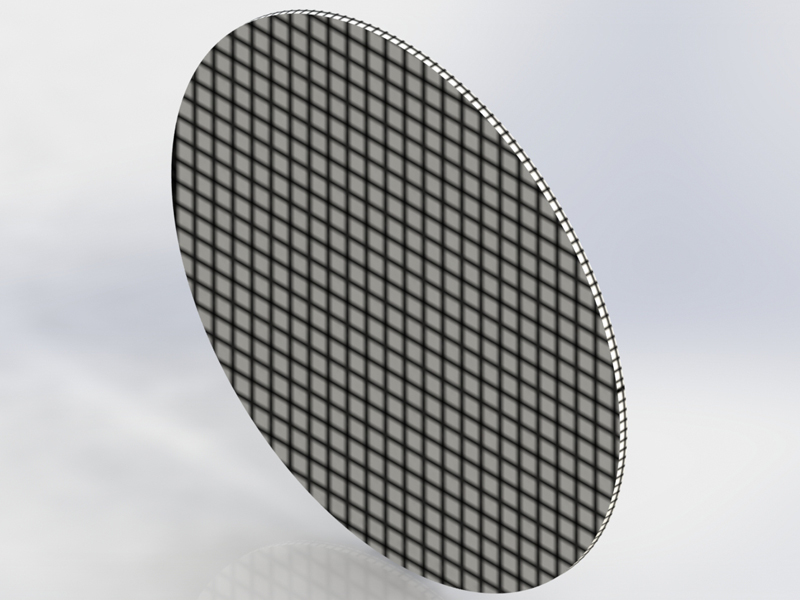

XSF-20 O’keefe Controls SS Wire Screens 0.375in 100um – Unbound Screens
Fine screens are used to protect orifices and other critical components from the occasional particles that enter the fluid during installation or otherwise. They are not intended to replace normal filtration equipment, but rather to augment the protection of critical components in fluid control systems. Four sizes of screen particle retention are offered; 10, 15, 25 and 100 microns. The stainless steel wire screens do not introduce loose particles into the fluid stream. The screens are thoroughly cleaned to prevent inadvertent introduction of contaminants.
In-line screens are suitable for use with liquids or gases compatible with the materials of construction. The screens protect critical components such as orifices from clogging or reducing flow rate. Applications for in-line screens include protection of:
Precision Orifices
Pneumatic Transducers
Gas and Liquid Flow Instruments
Medical Devices
Filling and Purging Systems
Pneumatic Timers
Transmitters
Pneumatic Transmission Lines
Hydraulic Controls
Leak Test Equipment
Flow Measurement Devices
Outside Diameter 0.375 in
Width 0.005 to 0.010 in
Maximum Pressure Drop 100 psig
Screen Material 304 SS
Micron Rating 100um
Manufacturer: Electronic Components
MFG Part #: XSF-20
