YAV102TC14E1 FCI Lug Terminal 10-14AWG

$0.00

YAV102TC14E1 FCI Lug Terminal 10-14AWG 56.38mm RoHS

SKU: YAV102TC14E1 Category: Tag: Brand:

Description

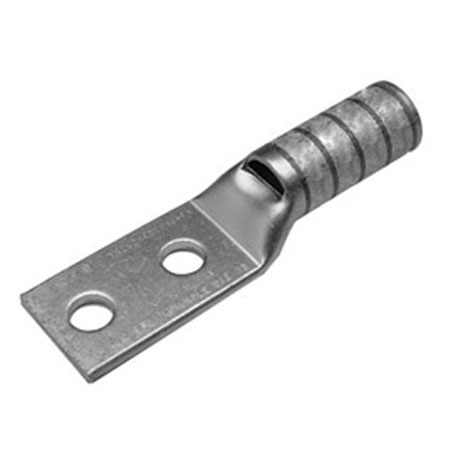

YAV102TC14E1 FCI Lug Terminal #10 Lug Two 1/4″ Holes, 1″ OC Standard Barrel,Windowed RoHS

Tongue Angle:Straight
Length:2.22 in
Tongue Type:Standard
Barrell Style:Chamfered
Bolt Hole Size:1/4
Barrel Type:Standard
Thickness:0.05 in
Pad Width:0.41 in
Strip Length:7/16
Number of Holes:2
Conductors:Copper Solid Size 10 AWG 12 AWG | Copper Stranded 14 AWG 10 AWG
Type of Plating:Tin – Electro Plated
Material:Copper
RoHS Compataible:Compliant
CULUS :N
Weight:0.21 lbs

14-10 AWG – 12-10 Sol CU, Two Hole, 1/4 Stud Size, 1 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV.

Features: UL Listed 90 DEG C, 600 V – 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y8MRB-1 Tool, (1), Die Index: 2 SCRIBE, Wire Strip Length: 7/16 IN
Manufacturer: Fci Connectors
MFG Part #: YAV102TC14E1
