Description

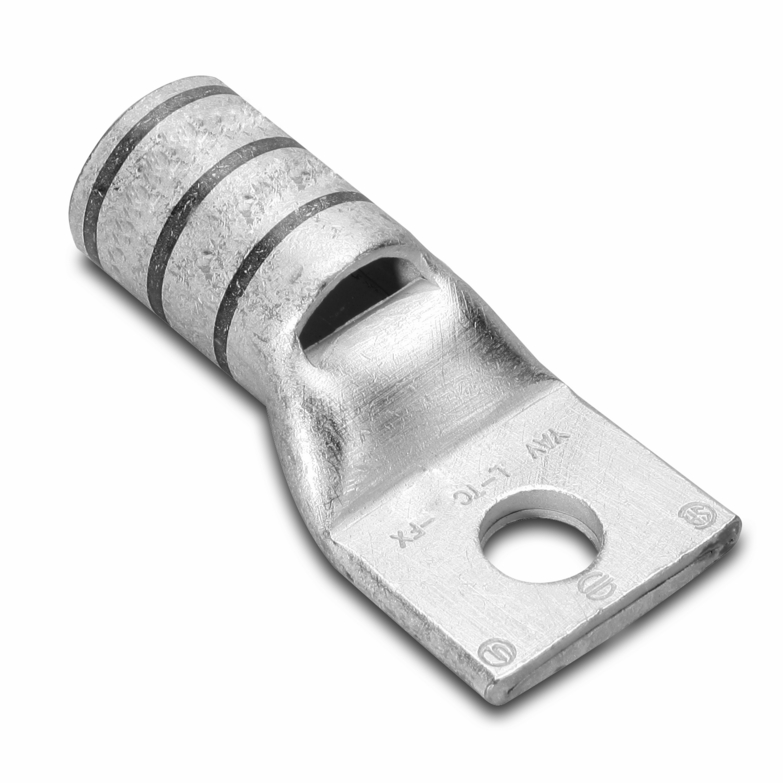

YAV2CLTC10FX BURNDY CU HYLUG- 2 FLX- 10 STUD , Cu Tubing Hylug, 1 Hole with Inspection Window, #2 WELD, 3(125/#24)-2(150/#24) DLO, #2 AWG Code, 60 Navy, 600V-35kV, #10 stud, Compression, 0.21 in BCD
Dimensional
Tongue Angle Straight
Length (in) 1.50
Barrell Style Chamfered
Bolt Hole Size (in) 0.20
Barrel Type Standard
Thickness 0.10
B Length (in) 0.63
Pad Width (in) 0.68
Strip Length 11/16
Number of Holes 1
Product Description: Cu Tubing Hylug, 1 Hole with Inspection Window, #2 WELD, 3(125/#24)-2(150/#24) DLO, #2 AWG Code, 60 Navy, 600V-35kV, #10 stud, Compression, 0.21 in BCD
Conductor(s)
Flex (Class G) Size – Range 2 AWG
Flex (Class H) Size – Range 2 AWG
Flex (Class I) Size – Range 2 AWG
Copper Solid Size (Range) 2 AWG
DLO Size (Range) 3 (125/#24) DLO-2 (150/#24) DLO
Copper Stranded (Range) 2 AWG
Physical
Type of Plating Tin – Electro Plated
Bolt Hole Size #10
Color Code Brown
Plated (Yes or No) Y
Index Number 10
Product Material Copper
Approvals / Certifications UL Listed,Y CSA Certified Y
ROHS Compatible Compliant
UL Recognized N
CULUS N
UPC 7818102880233
Manufacturer:Burndy
Datasheet:YAV2CLTC10FX.pdf
