Description

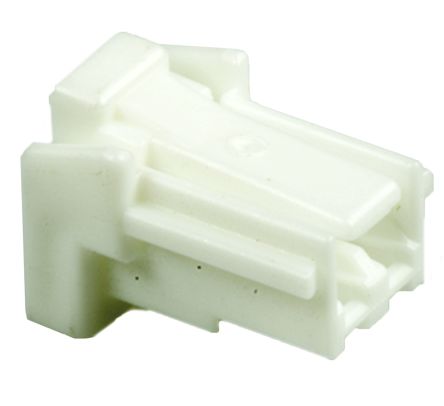

ZER-02V-S JST Connector ^JST ZER Series 1.5mm Pitch 2 Way 1 Row Female Straight PCB Connector Housing
ZE Series 1.5mm Receptacle Housings
The ZE Series of 1.5mm pitch Receptacle Housings are UL 94V-0 rated and natural (white) colour.
For ZE 1.5mm Receptacle Contacts and Cable Assemblies see stock number 820-1387 typical.
1.5mm Wire to Board – JST ZE Connectors
The JST ZE Series of 1.5mm Wire to Board Connectors feature secure locking housing and contact structures.
Specifications
Number of Contacts 2
Number of Rows 1
Pitch 1.5mm
Gender Female
Mounting Type Cable Mount
Series ZER
For Use With ZE Series Dis-Connectable Crimp Style Connector
Body Orientation Straight
Length 5mm
Width 5.7mm
Depth 7.5mm
Housing Material PBT
Manufacturer Part Number: ZER-02V-S
Manufacturer: JST
