Description

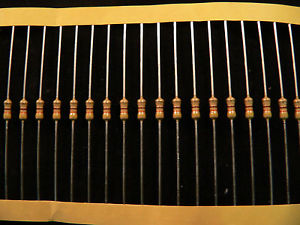

ZJ-2-TW RCD Fixed Resistor, 0ohm, JUMPER Single-Through Hole
Supplier: RCD Components
Part No: ZJ2-TW
Termination Style: Axial
Resistance Value: 0 Ohm
Operating Temperature: -55 to 175 °C
Packaging: Tape and Reel
Dimension: 6.4 x 2.3 mm
RCD has been a key manufacturer of standard and custom Resistors/Capacitors/Coils/Delay Lines for over 40 years. RCD’s USA plant is the home of the SWIFT program, and also specializes in military, aerospace and custom/specialty products. Caribbean and Asian facilities are geared for medium to high volume production, helping to ensure the industries most competitive pricing.
RCD “zero-ohm” jumpers were developed for use as interconnection devices between points on a PCB when separated by circuit paths, or when the pcb layout has been changed requiring new point connections. Specify ZJ Series (insulated bodies) when jumpers are in close proximity with conductor paths. Specify Z Series (uninsulated tin plated copper) for circuits involving higher current levels. In addition to the 4 standard wire sizes listed (18-22 awg), Series Z is available in a wide range of custom sizes (12-26awg). RCD’s Z1206 SM jumper achieves the industry’s highest current rating in a 1206- size due to the heavy duty tin plated copper element. The ultra low resistance of type Z1206 (.00012?) is 25-400 times better than conventional models! Z1206 is formed into a U-shape to provide 500V isolation clearance.
Manufacturer:RGA / RG ALLEN
Datasheet:ZJ-Z-FA066.pdf
