Amtek PCB Terminal Blocks
Quick Overview
Amtek‘s Input/Output (I/O) connectors enable communication between an information processing system, such as a computer, and the outside world, which could include a human or another information processing system. Inputs are the signals or data received by the system, while outputs are the signals or data transmitted from it.
Details
Amtek offers a comprehensive range of USB products, including USB Type-A, Type-B, Type-C, USB 4, USB 3.0, standard USB 2.0, Micro USB, and Mini-B. These products come in various configurations, orientations, and options for soldering and mounting. They support features such as splashproof and waterproof protection, reversible functionality, power delivery, high data transmission rates, and reliable connectivity.

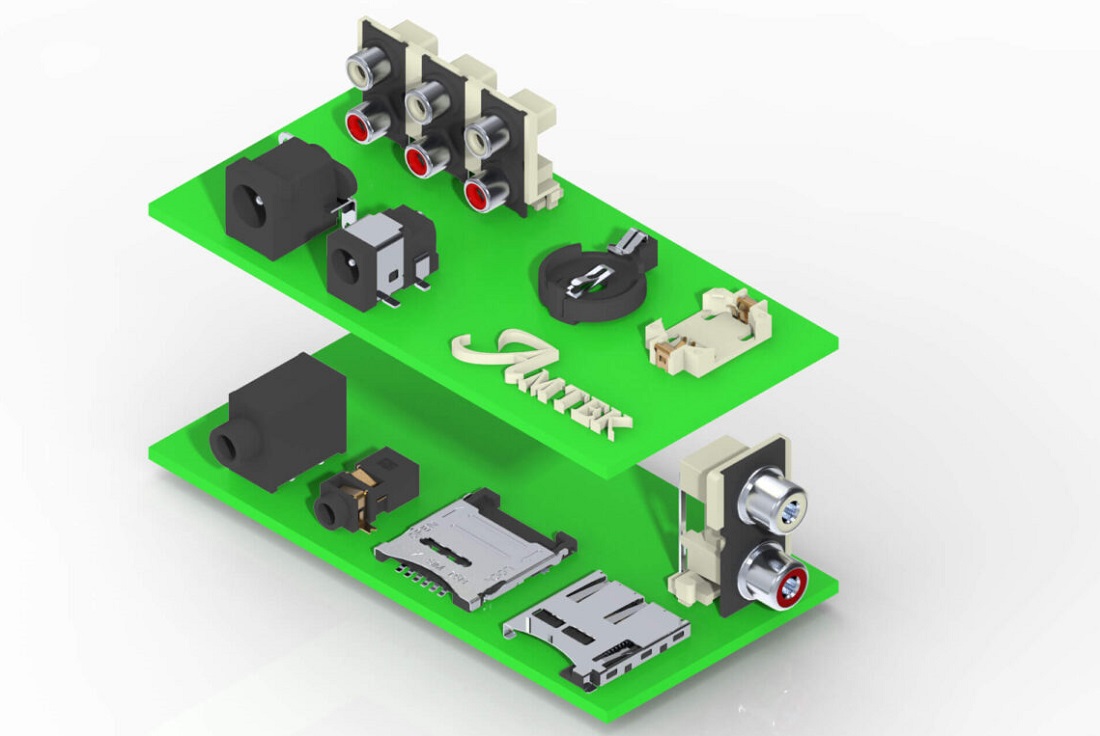

Amtek I/O Connectors
- D-SUB
- Waterproof D-SUB
- Power Connector
- Coaxial Connector
- Card Connector
- Battery Holder
- RCA
- DC Power Jack
- Earphone Jack
Amtek D-Sub Connectors
Amtek D-Sub Connectors feature back-entry solder cup wire terminals, providing the most secure electrical and mechanical bonding strength compared to other current technologies like crimp contacts. Amtek’s D-Sub connector portfolio includes both male (plug) and female (socket) variants, covering every industry-standard pin count, density, and layout used globally. This includes standard density D-Subminiature configurations such as 9-Pin DB9, 15-Pin DB15, 25-Pin DB25, 37-Pin DB37, and 50-Pin DB50, as well as high-density (HD) configurations like 15-Pin HD15, 26-Pin HD26, 44-Pin HD44, 62-Pin HD62, and 78-Pin HD78. The built-in solder cup terminals on the rear of the connector body provide superior installation flexibility, allowing for direct cable assembly construction or chassis installation with jumper wires routed to various locations on the electronic device. These connectors are identical to those used in off-the-shelf D-Sub cable assemblies, ensuring perfect compatibility when paired with any of pre-fabricated assemblies.
Amtek Earphone Jacks
Amtek manufactures a diverse range of 3.5mm headphone jacks, auxiliary (aux) connectors, and phono adapters. In addition to the standard 3.5mm aux connector, Amtek also offers a selection of 6.35mm (1/4″) jack adapters and connectors. The 1/8″ (3.5mm) version of this connector is commonly recognized as the plug on a pair of headphones. These connectors are available in three common sizes: 1/4″ (6.35mm), 1/8″ (3.5mm), and 2.5mm. The 1/4″ size is widely used in the professional audio and music industry, often found on electric guitars and amplifiers with tip-sleeve (TS) jacks. The 1/8″ tip-ring-sleeve (TRS) connector is commonly used for headphones or audio output on MP3 players and computers. Some cell phones use a 2.5mm tip-ring-ring-sleeve (TRRS) jack to connect headphones that include a microphone for hands-free communication.
Custom Solutions
Amtek connectors are available through IBS Electronics and can be shipped worldwide. Have a design with unique requirements? IBS Electronics can collaborate with Amtek’s in-house research and development team to create a custom-built connector solution tailored to your project’s needs.
