Amtek PCB Terminal Blocks
Quick Overview

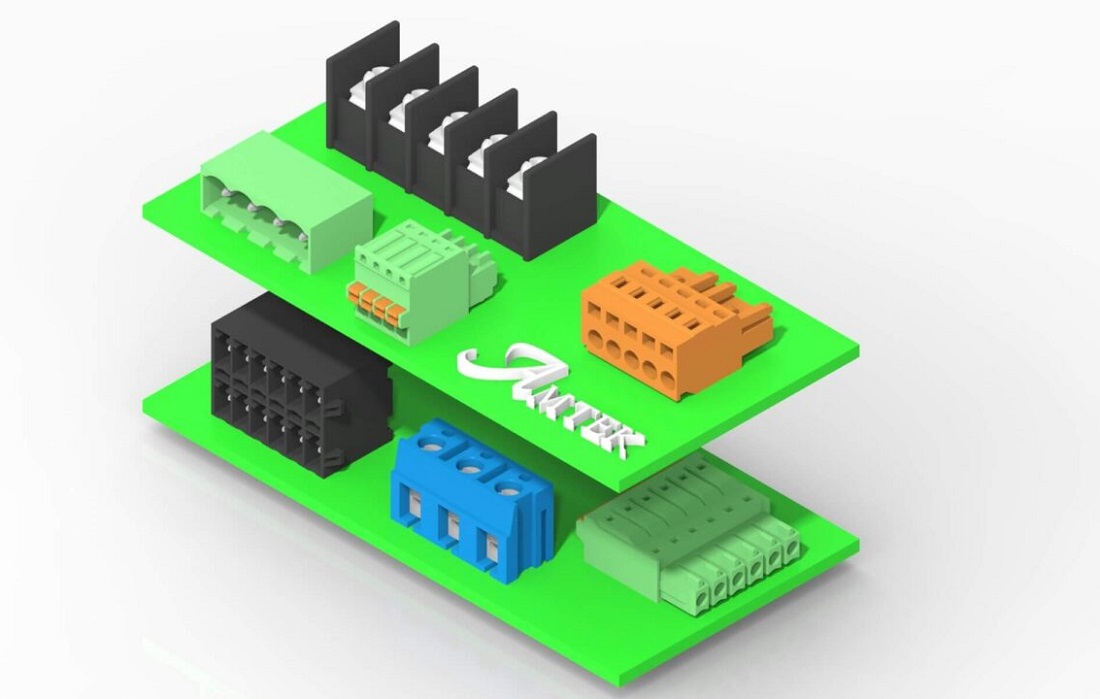

Amtek offers terminal block connectors in pluggable, screwless, and screw type configurations, featuring up to 24 pole counts and available in multiple color options. These connectors are designed for various orientations, including horizontal, vertical, 45°, and 180°, and support pitches of 2.54, 3.81, 5, 5.08, 7.5, 7.62, 10, 12.7 and 15mm. They accommodate wire gauges from 28 to 4 AWG, making them ideal for diverse interconnect needs.
Details
Amtek offers terminal block connectors in pluggable, screwless, and screw type configurations, featuring up to 24 pole counts and available in multiple color options. These connectors are designed for various orientations, including horizontal, vertical, 45°, and 180°, and support pitches of 2.54, 3.5, 3.81, 5, 5.08, 7.62, and 10 mm. They accommodate wire gauges from 28 to 4 AWG, making them ideal for diverse interconnect needs.
PCB terminal blocks provide easy and safe transmission of signals, data, and power to the PCB, making them suitable for various applications across multiple industries, including Industry 4.0. Amtek’s PCB terminal blocks offer both metric and imperial pitches, from miniature 2.5 mm pitch terminal blocks to power-level terminals with a 20 mm pitch. Their spring pressure connection technologies are particularly useful for applications in drive and controller technology or the lighting industry.
Benefits include:
- A wide range of variants
- Easy and secure use
- Reliable conductor termination via spring pressure connection technology
- Push-in for fast and efficient termination of solid and ferruled conductors
- Seamless integration into manufacturing processes with products suitable for wave/manual (THT) and reflow soldering (THR/SMT) methods
Amtek PCB Mount Spring Terminals are small spring terminals that simplify wire connections. By opening the aperture with a small arm, inserting the wire, and then releasing the arm, the wire is securely held in place. These terminals provide a quick and reliable method for interfacing with bare wires and offer higher current capacity and durability compared to breadboard or female header connections.
