Amtek’s USB connector system accommodates the two deferentially driven data wires that provide bi-directional, simultaneous signals for full speed (12Mbps) or low speed (1.5Mbps) used in universal series bus (USB) systems.
Details
The Amtek USB connector system supports two differentially driven data wires, enabling bi-directional, simultaneous signals for full speed (12Mbps) or low speed (1.5Mbps) in USB systems. Designed for user-friendly applications outside the box, our USB cable connectors include a single, four-position board-mount receptacle and a cable mount overmolded plug. The board-mount receptacles come in standard, Type B, stacked, and side-by-side configurations, enhancing the system’s adaptability to various USB applications.
Key Features:
- Supports charging
- Wide range of board mount receptacles in different orientations and PCB mounting styles

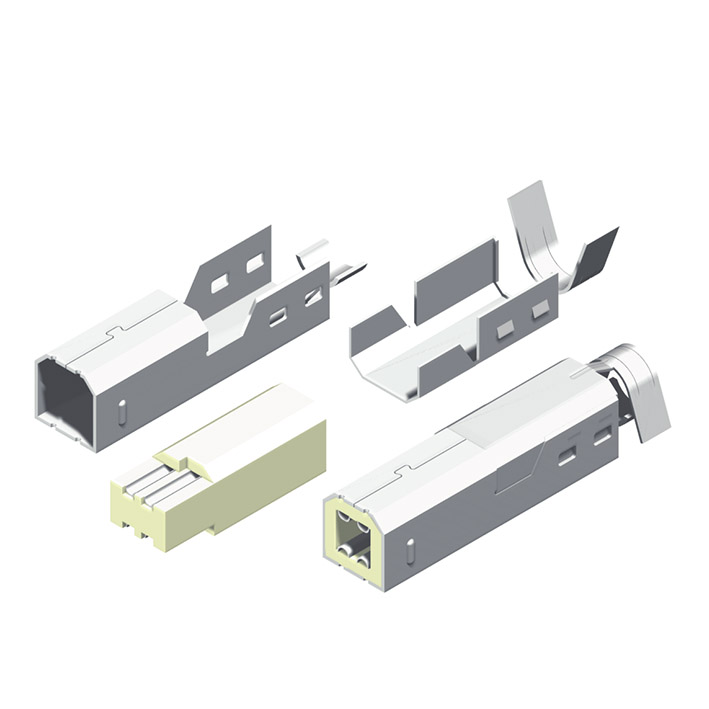

- Overmolded plug kits available for all USB sizes and types
- Consolidates serial, parallel, keyboard, mouse, and game ports
- Compatible with asynchronous and isochronous data transfer methods
- Polarized for correct orientation
- Plug-and-Play capability
- Hot pluggable, allowing peripherals to be attached or detached without power downtime or reboot
USB Versions
USB 1.0: Introduced in 1996, operating at a maximum speed of 1.5 Mbit/s.
USB 1.1: Released in 1998, providing a maximum transfer rate of 12 Mbit/s and supporting a maximum current output of 500mA.
USB 2.0: Capable of operating at speeds up to 480 Mbit/s and delivering 1.8 amperes at 5 volts DC. Typically identified by a black plug.
USB 3.0: Introduced in 2008, offering a maximum speed of 5 Gbps. It also supplies 1.8 amperes at 5 volts. USB 3.0 plugs are often blue and feature additional pins for enhanced functionality, with backward compatibility to USB 2.0. Cables are marked with a superspeed logo (SS5).
USB 3.1: Released in 2013, providing a maximum data transfer rate of 10 Gbps. USB 3.1 cables feature a superspeed logo (SS10).
USB 3.2: Introduced in 2017 as an upgrade to USB 3.0, capable of transferring data at 20 Gbps. Cables are marked with a superspeed logo (SS20).
USB4: Launched in 2019 with a maximum data transfer rate of 40 Gbps and supporting power delivery of up to 100 watts. Cables are marked with a superspeed logo (SS40).
USB4 v2: The latest version as of 2022, offering a maximum data transfer rate of 120 Gbps, though cables may not yet be widely available.
Amtek manufactures various USB connector types and standards, including USB Type C, and supports USB 2.0, 3.0, and 3.1 standards.
To address the latest market demands and the trend towards increasingly compact devices, Amtek Technology leverages its expertise and professionalism to create customized connectors tailored in both shape and size. These connectors are designed for a wide range of industrial applications, including medical and automotive sectors.
5US2B07SF-104S0WLBC1

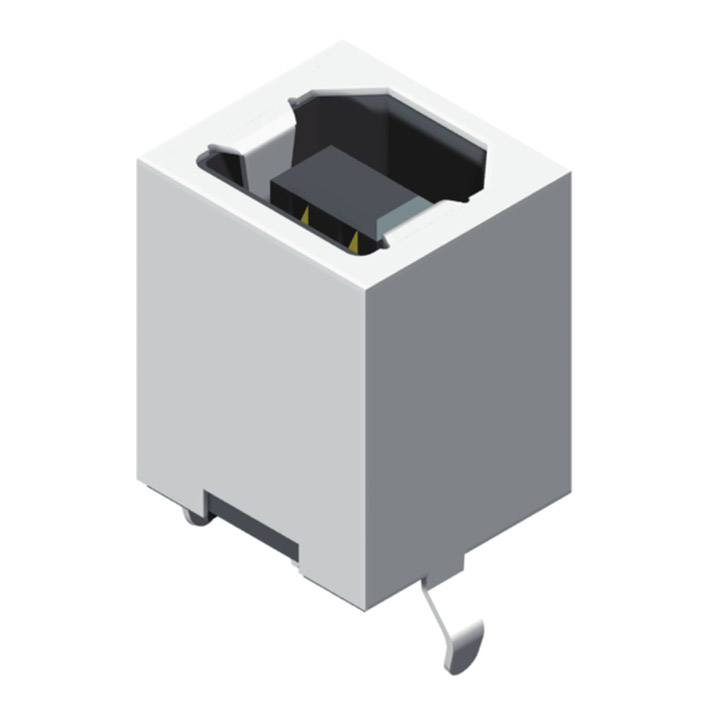

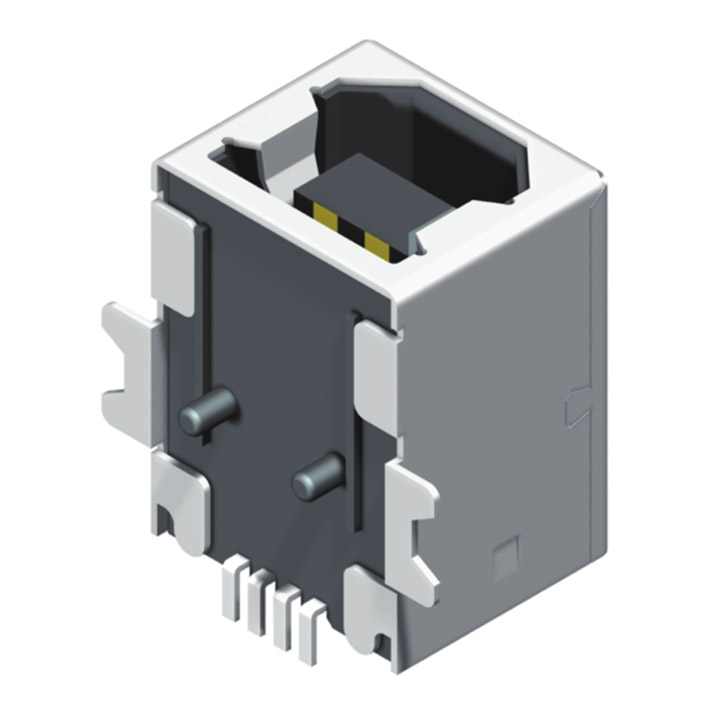

USB B Type Female Solder
- For reference only. Please contact us for more details.
5US2B08SM-104S0WLBC1
USB B Type Male Solder
- For reference only. Please contact us for more details.
5US2A07MF-104XXXUXD1

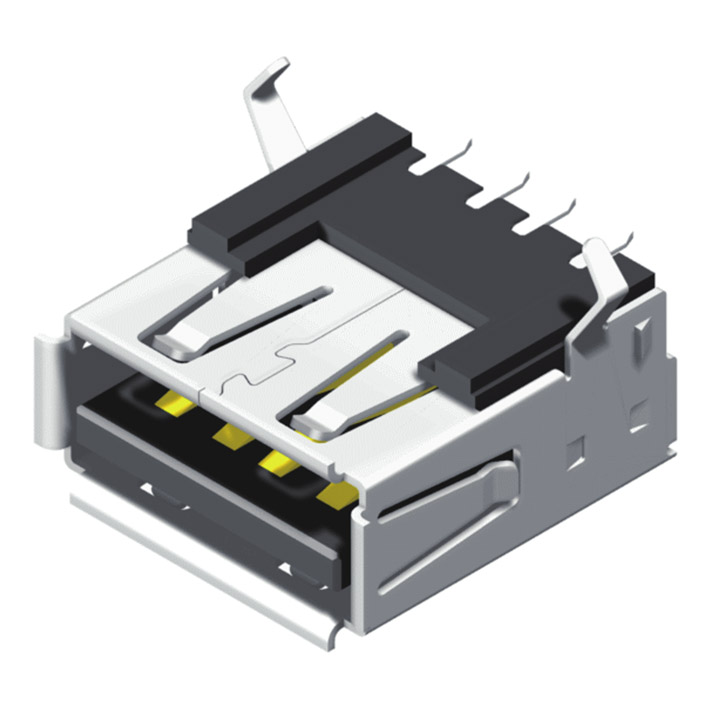

USB A Type Female SMT R/A 4P
- For reference only. Please contact us for more details.
5US2A08MF-104S0XUXD1
USB A Type Female SMT R/A With Peg 4P
- For reference only. Please contact us for more details.
5US2A09RM-104S0XLAC1
USB A Type Male Dip R/A 4P 09 Series
- For reference only. Please contact us for more details.
5US2A11RM-104S0XUAD1
USB A Type Male Reverse Dip R/A 4P
- For reference only. Please contact us for more details.
5US2A12MM-104S0XUXC1

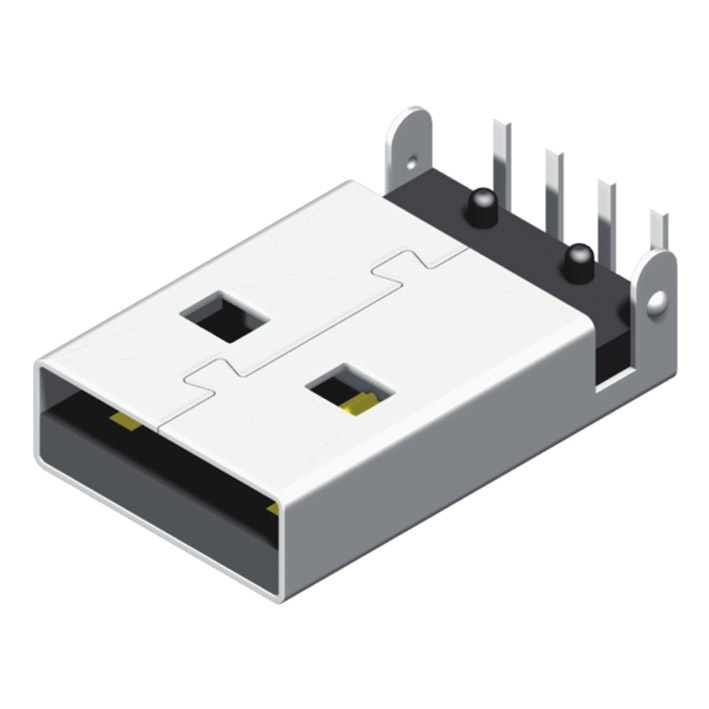

USB A Type Male SMT R/A 4P
- For reference only. Please contact us for more details.
5US2A13MM-104XXXUAD1
USB A Type Male SMT R/A Sink 4P
Download files
- For reference only. Please contact us for more details.
5US2A15SF-104S0WLBC1
USB A Type Female Solde 4P
- For reference only. Please contact us for more details.
5US2A16MM-104S0XUAD1

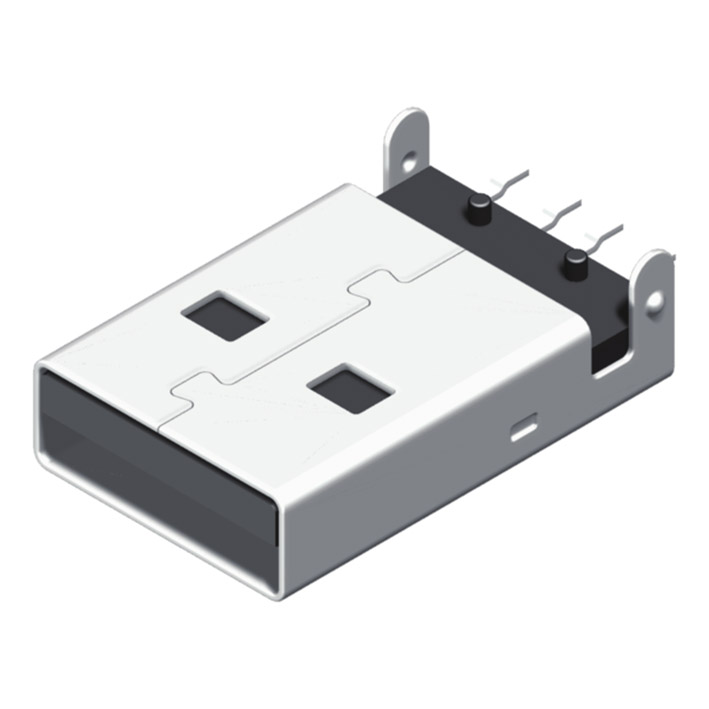

USB A Type Male Reverse SMT R/A 4P
- For reference only. Please contact us for more details.
5US2A17SM-104S0XLBC1
USB A Type Male Solder 4P
- For reference only. Please contact us for more details.
5US2A18RF-204S0XLAD1

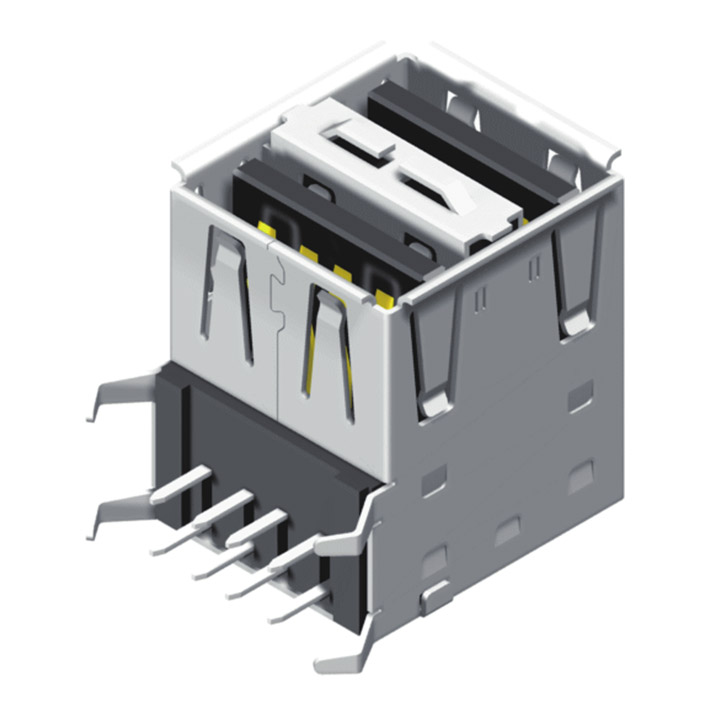

USB A Type Female 2 Ports Dip R/A 8P
- For reference only. Please contact us for more details.
5US2A19DF-204S0XLAD1

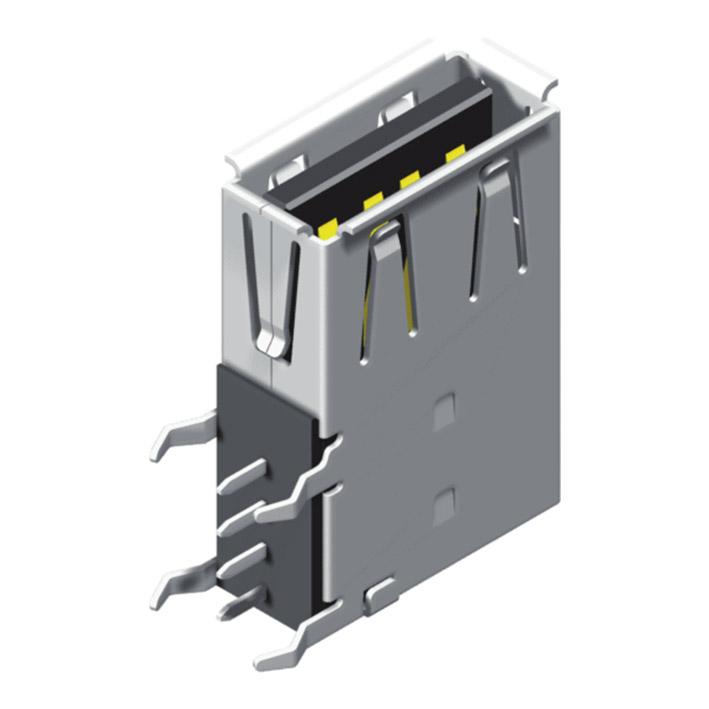

USB A Type Female 2 Ports Dip 180° 8P
- For reference only. Please contact us for more details.
5US2A20RF-304XXBLAD1

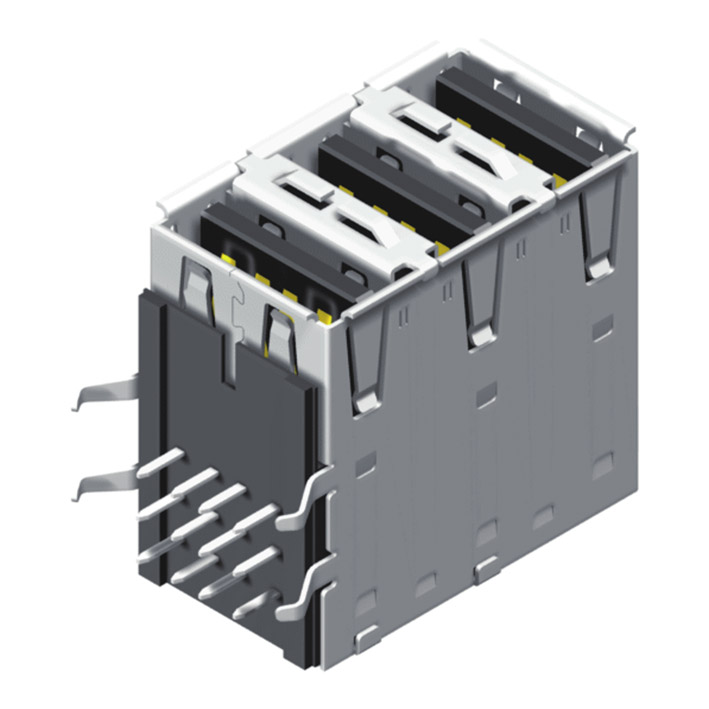

USB A Type Female 3 Ports Dip R/A 12P
- For reference only. Please contact us for more details.
5US2A21RF-404S0BLAD1

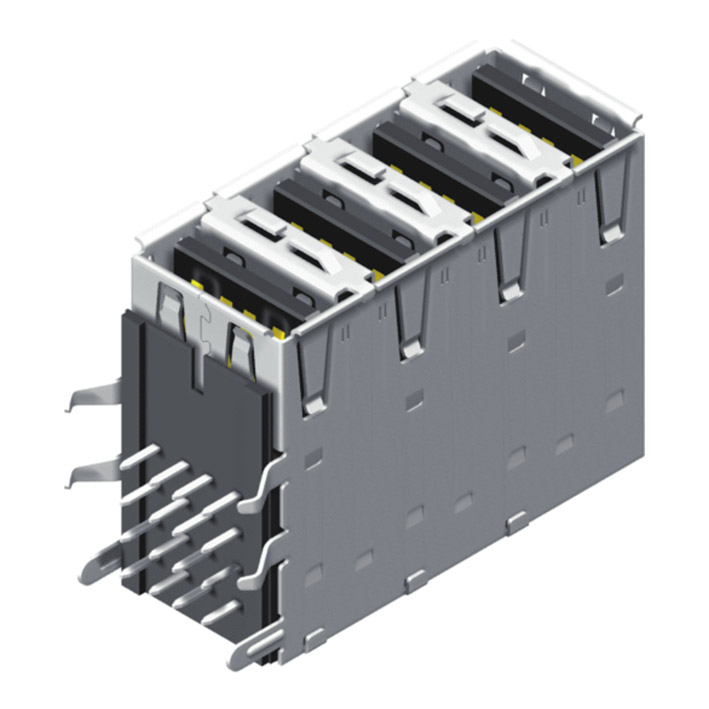

USB A Type Female 4 Ports Dip R/A 16P
- For reference only. Please contact us for more details.
5US2B01RF-104XXXLAC1

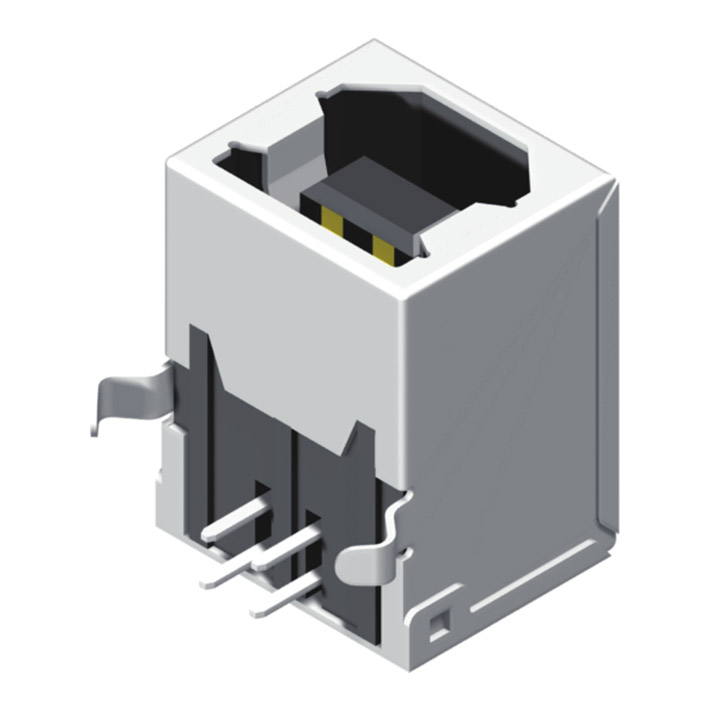

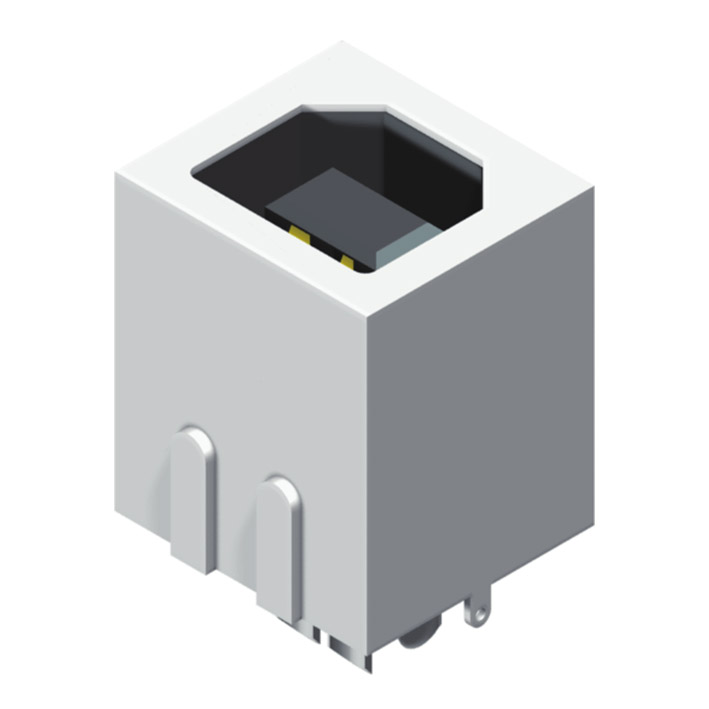

USB B Type Female Dip R/A 4P 01 Series
