Mini-Circuits RF Filters

Quick Overview

RF Filters – Bandpass Filter | Low-pass Filter | High-pass Filter | Band-stop Filter | Diplexers and Triplexers – Mini-Circuits

Mini-Circuits’ compact bandpass filters are meticulously engineered for effortless RF design integration. These passive filters boast low insertion loss and high attenuation levels near the passband, maintaining exceptional performance. With a focus on microwave and RF filter products, Mini-Circuits caters to the wireless and military sectors, ensuring top-tier solutions.

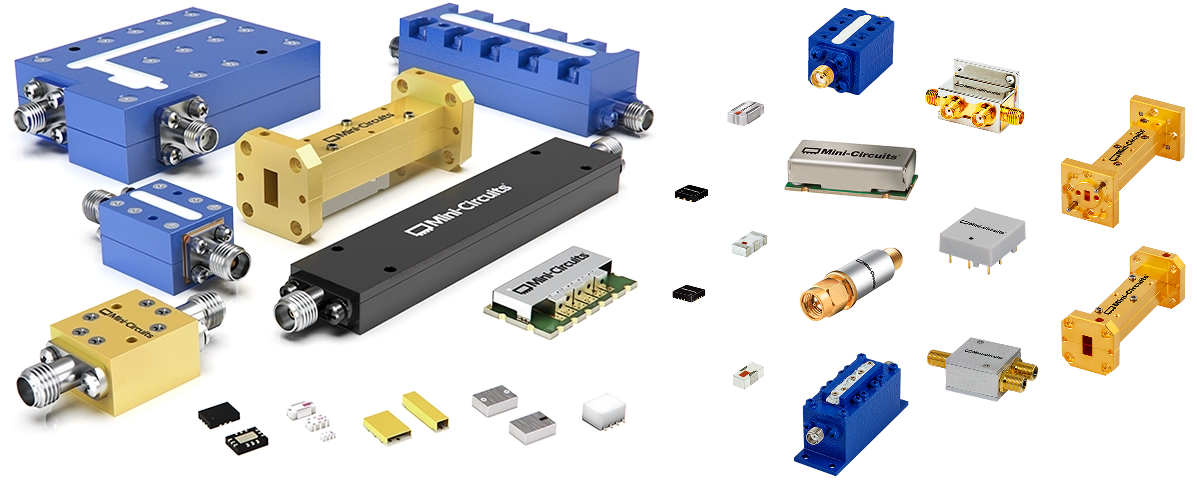

RF Filters Coax and Surface Mount

Details

Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers. Triplexers, and More!



Offering a wide range of filter types including Low-Pass, High-Pass, Band-Pass, Band-Stop, Diplexers, Triplexers, and more, Mini-Circuits provides over 3000 models of RF filters available for same-day shipping. Additionally, the company offers custom designs with rapid turnarounds to address diverse requirements.

Mini-Circuits’ patented MMIC Reflectionless Filters eliminate spurs, while their Sharp-Rejection Cavity and Suspended Substrate Filters deliver precise performance. Furthermore, the company offers LTCC Filters as small as 0603, covering passbands from DC to 86 GHz.

  • Patented MMIC Reflectionless Filters Eliminate Spurs
  • Sharp-Rejection Cavity and Suspended Substrate Filters
  • LTCC Filters as small as 0603
  • Passbands spanning DC to 86 GHz

Bandpass Filters are used to allow signals that lie within the specified bandwidth and considerably attenuate signals that are outside this band. RF Band Pass Filters from the leading manufacturers are listed on below. Narrow down on the list of filters based on the passband frequency, insertion loss, out of band attenuation and various other parameters. View product details, download datasheets and get quotes.

Model Number Case Style Description Passband F1 (MHz) Passband F2 (MHz) Stopband F3 (MHz) Rejection @ F3 (dB) Stopband F4 (MHz) Rejection @ F4 (dB) Filter Type Technology Interface Impedance (O)
ABF-3R3G+ ZH3433 Thin Film Band Pass Filter, 3100-3300 MHz 3100 3500 DC-2400 35 4000-7000 35 Band Pass Thin Film SMT 50
ABF-7G+ UC2731 Thin Film Band Pass Filter, 6500-7500 MHz 6500 7500 DC-5800 35 8350-14000 45 Band Pass Thin Film SMT 50
ABF-7R625G+ UC2731 Thin Film Band Pass Filter, 7450-7800 MHz 7450 7800 DC-6500 39 9000-18000 30 Band Pass Thin Film SMT 50
ABF-7R75G+ UC2731 Thin Film Band Pass Filter, 6300-9200 MHz 6300 9200 DC-4400 40 11000-30000 20 Band Pass Thin Film SMT 50
ABF-8R075G+ UC2731 Thin Film Band Pass Filter, 7750-8400 MHz 7750 8400 DC-6300 41 9600-11500 40 Band Pass Thin Film SMT 50
ABF-8R75G+ UC2731 Thin Film Band Pass Filter, 8600-8900 MHz 8600 8900 DC-7400 35 10200-20000 35 Band Pass Thin Film SMT 50
ABF-9R3G+ UC2731 Thin Film Band Pass Filter, 9200-9400 MHz 9200 9400 DC-7800 35 10700-19000 30 Band Pass Thin Film SMT 50
ABF-10R125G+ UC2731 Thin Film Band Pass Filter, 9350-10900 MHz 9350 10900 DC-7500 38 13000-23000 30 Band Pass Thin Film SMT 50
ABF-11R5G+ UC2731 Thin Film Band Pass Filter, 9600-13200 MHz 9600 13200 DC-7250 30 15600-30000 30 Band Pass Thin Film SMT 50
ABF-15R75G+ UC2731 Thin Film Band Pass Filter, 14200-17400 MHz 14200 17400 DC-11200 30 20500-35000 20 Band Pass Thin Film SMT 50
ABF-26G+ VG3044 Thin Film Band Pass Filter, 24250-27500 MHz 24250 27500 DC-22500 45 29250-40000 40 Band Pass Thin Film SMT 50
ABF-28G+ VG3044 Thin Film Band Pass Filter, 26500-29500 MHz 26500 29500 DC-24500 45 31500-40000 40 Band Pass Thin Film SMT 50
BBP-10.7+ FF55 Connectorized Band Pass Filter, 9.5-11.5 MHz 9.5 11.5 7.5 20 15 20 Band Pass Lumped LC Conn 50
BBP-20R5+ FF55 Connectorized Band Pass Filter, 20-21 MHz 20 21 DC-15.8 40 40-380 40 Band Pass Lumped LC Conn 50
BBP-21.4+ FF55 Connectorized Band Pass Filter, 19.2-23.6 MHz 19.2 23.6 15.5 20 29 20 Band Pass Lumped LC Conn 50
BBP-27R5+ FF55 Connectorized Band Pass Filter, 24-31 MHz 24 31 DC-19 30 39-900 30 Band Pass Lumped LC Conn 50
BBP-29+ FF55 Connectorized Band Pass Filter, 24-35 MHz 24 35 DC-18 27 46-1600 27 Band Pass Lumped LC Conn 50
BBP-30+ FF55 Connectorized Band Pass Filter, 27-33 MHz 27 33 22 20 40 20 Band Pass Lumped LC Conn 50
BBP-35A+ FF55 Connectorized Band Pass Filter, 30-40 MHz 30 40 DC-19 30 65-1350 30 Band Pass Lumped LC Conn 50
BBP-35B+ FF55 Connectorized Band Pass Filter, 24-46 MHz 24 46 DC-16 29 73-1000 27 Band Pass Lumped LC Conn 50
BBP-60+ FF55 Connectorized Band Pass Filter, 55-67 MHz 55 67 44 20 79 20 Band Pass Lumped LC Conn 50
BBP-70+ FF55 Connectorized Band Pass Filter, 63-77 MHz 63 77 51 20 94 20 Band Pass Lumped LC Conn 50
BBP-100+ FF55 Connectorized Band Pass Filter, 87-117 MHz 87 117 DC-66 29 143-1500 28 Band Pass Lumped LC Conn 50
BBP-101+ FF55 Connectorized Band Pass Filter, 94-108 MHz 94 108 DC-80 29 130-2000 28 Band Pass Lumped LC Conn 50
BBP-140+ FF55 Connectorized Band Pass Filter, 130-150 MHz 130 150 DC-110 30 185-2000 30 Band Pass Lumped LC Conn 50
BBP-150+ FF55 Connectorized Band Pass Filter, 140-160 MHz 140 160 DC-120 29 190-2000 30 Band Pass Lumped LC Conn 50
BFCG-162W+ GE0805C-3 LTCC Band Pass Filter, 950-2200 MHz 950 2200 DC-770 20 3000-5000 20 Band Pass LTCC SMT 50
BFCG-252+ GE0805C-3 LTCC Band Pass Filter, 2400-2500 MHz 2400 2500 10-1350 25 3400-3800 23 Band Pass LTCC SMT 50
BFCG-552+ GE0805C-3 LTCC Band Pass Filter, 5100-5930 MHz 5100 5930 DC-3360 20 8770-11000 20 Band Pass LTCC SMT 50
BFCG-1902+ GE0805C-13 LTCC Band Pass Filter, 17000-20400 MHz 17000 20400 DC-13000 24 24500-39000 28 Band Pass LTCC SMT 50
BFCG-1952+ GE0805C-13 LTCC Band Pass Filter, 16800-21000 MHz 16800 21000 DC-11900 18 26300-38500 18 Band Pass LTCC SMT 50
BFCG-5600+ GE0805C-3 LTCC Band Pass Filter, 5150-5990 MHz 5150 5990 DC-4200 20 9310-15750 20 Band Pass LTCC SMT 50
BFCN-152W-75+ FV1206-7 LTCC Band Pass Filter, 950-1970 MHz 950 1970 630-730 20 2300-3000 20 Band Pass LTCC SMT 75
BFCN-1052+ FV1206-9 LTCC Band Pass Filter, 9700-11950 MHz 9700 11950 8400 32 14000 28 Band Pass LTCC SMT 50
BFCN-1152+ FV1206-9 LTCC Band Pass Filter, 11160-11970 MHz 11160 11970 DC-8950 50 13750-20900 35 Band Pass LTCC SMT 50
BFCN-1262+ FV1206-9 LTCC Band Pass Filter, 12100-13200 MHz 12100 13200 DC-9760 45 15170-25000 30 Band Pass LTCC SMT 50
BFCN-1445+ FV1206 LTCC Band Pass Filter, 1420-1470 MHz 1420 1470 1190 20 2050 20 Band Pass LTCC SMT 50
BFCN-1525+ FV1206 LTCC Band Pass Filter, 1480-1570 MHz 1480 1570 1250 20 2180 20 Band Pass LTCC SMT 50
BFCN-1560+ FV1206-1 LTCC Band Pass Filter, 1500-1620 MHz 1500 1620 1100 20 2100 20 Band Pass LTCC SMT 50
BFCN-1575+ FV1206 LTCC Band Pass Filter, 1530-1620 MHz 1530 1620 1290 20 2220 20 Band Pass LTCC SMT 50
BFCN-1690+ FV1206-1 LTCC Band Pass Filter, 1570-1810 MHz 1570 1810 DC-1200 20 2170-4400 20 Band Pass LTCC SMT 50
BFCN-1801+ FV1206-7 LTCC Band Pass Filter, 1400-2320 MHz 1400 2320 1000 25 3110 33 Band Pass LTCC SMT 50
BFCN-1840+ FV1206 LTCC Band Pass Filter, 1750-1930 MHz 1750 1930 1480 20 2860 20 Band Pass LTCC SMT 50
BFCN-1855+ FV1206 LTCC Band Pass Filter, 1790-1920 MHz 1790 1920 1510 20 2810 20 Band Pass LTCC SMT 50
BFCN-1860+ FV1206-4 LTCC Band Pass Filter, 1580-2200 MHz 1580 2200 DC-1300 20 2600-4800 20 Band Pass LTCC SMT 50
BFCN-1900+ FV1206-5 LTCC Band Pass Filter, 1893-1920 MHz 1893 1920 DC-1687 20 2153-5500 20 Band Pass LTCC SMT 50
BFCN-1945+ FV1206 LTCC Band Pass Filter, 1850-2040 MHz 1850 2040 1400 20 2900 20 Band Pass LTCC SMT 50
BFCN-2275+ FV1206 LTCC Band Pass Filter, 2170-2380 MHz 2170 2380 1800 20 3430 20 Band Pass LTCC SMT 50
BFCN-2360+ FV1206 LTCC Band Pass Filter, 2250-2470 MHz 2250 2470 1850 20 3600 20 Band Pass LTCC SMT 50
BFCN-2435+ FV1206 LTCC Band Pass Filter, 2340-2530 MHz 2340 2530 1940 20 3850 20 Band Pass LTCC SMT 50
BFCN-2450+ FV1206-4 LTCC Band Pass Filter, 2400-2550 MHz 2400 2550 DC-2100 20 3400-12000 20 Band Pass LTCC SMT 50
BFCN-2491+ FV1206-7 LTCC Band Pass Filter, 1950-3190 MHz 1950 3190 1440 22 4500 29 Band Pass LTCC SMT 50
BFCN-2500+ FV1206-4 LTCC Band Pass Filter, 2100-2900 MHz 2100 2900 DC-1600 20 3700-5200 20 Band Pass LTCC SMT 50
BFCN-2555+ FV1206-1 LTCC Band Pass Filter, 2500-2610 MHz 2500 2610 1970 20 3200 20 Band Pass LTCC SMT 50
BFCN-2700+ FV1206 LTCC Band Pass Filter, 2600-2800 MHz 2600 2800 1500 20 4150 20 Band Pass LTCC SMT 50
BFCN-2840+ FV1206 LTCC Band Pass Filter, 2750-2930 MHz 2750 2930 1550 20 4000 20 Band Pass LTCC SMT 50
BFCN-2850+ FV1206 LTCC Band Pass Filter, 2750-2950 MHz 2750 2950 1500 20 4300 20 Band Pass LTCC SMT 50
BFCN-2900+ FV1206-1 LTCC Band Pass Filter, 2700-3100 MHz 2700 3100 1850 20 4200 20 Band Pass LTCC SMT 50
BFCN-2910+ FV1206 LTCC Band Pass Filter, 2850-2970 MHz 2850 2970 1600 20 4200 20 Band Pass LTCC SMT 50
BFCN-2975+ FV1206 LTCC Band Pass Filter, 2570-3440 MHz 2570 3440 DC-1700 20 4000-7500 20 Band Pass LTCC SMT 50
BFCN-3010+ FV1206 LTCC Band Pass Filter, 2920-3100 MHz 2920 3100 1530 20 4450 20 Band Pass LTCC SMT 50
BFCN-3085+ FV1206 LTCC Band Pass Filter, 2800-3400 MHz 2800 3400 4250 20 7800 20 Band Pass LTCC SMT 50
BFCN-3085A+ FV1206 LTCC Band Pass Filter, 2800-3400 MHz 2800 3400 4210 20 7800 20 Band Pass LTCC SMT 50
BFCN-3115+ FV1206 LTCC Band Pass Filter, 2720-3570 MHz 2720 3570 DC-1850 20 4300-8160 20 Band Pass LTCC SMT 50
BFCN-3491+ FV1206-7 LTCC Band Pass Filter, 2790-4370 MHz 2790 4370 2150 21 5950 30 Band Pass LTCC SMT 50
BFCN-3600+ FV1206 LTCC Band Pass Filter, 3300-3900 MHz 3300 3900 1850 20 5000 20 Band Pass LTCC SMT 50
BFCN-3700+ FV1206-4 LTCC Band Pass Filter, 3000-4600 MHz 3000 4600 DC-2100 20 5600-8000 20 Band Pass LTCC SMT 50
BFCN-4100+ FV1206 LTCC Band Pass Filter, 3700-4500 MHz 3700 4500 2200 20 6000 20 Band Pass LTCC SMT 50
BFCN-4440+ FV1206 LTCC Band Pass Filter, 4200-4700 MHz 4200 4700 2000 20 6750 20 Band Pass LTCC SMT 50
BFCN-4800+ FV1206 LTCC Band Pass Filter, 4400-5200 MHz 4400 5200 DC-1800 20 7500-12000 20 Band Pass LTCC SMT 50
BFCN-5100+ FV1206-6 LTCC Band Pass Filter, 3100-7100 MHz 3100 7100 DC-2400 20 9500-17000 20 Band Pass LTCC SMT 50
BFCN-5151+ FV1206-7 LTCC Band Pass Filter, 4120-6440 MHz 4120 6440 3000 24 8820 32 Band Pass LTCC SMT 50
BFCN-5200+ FV1206-4 LTCC Band Pass Filter, 4250-6300 MHz 4250 6300 DC-3300 20 7500-9000 20 Band Pass LTCC SMT 50
BFCN-5540+ FV1206-4 LTCC Band Pass Filter, 4620-6640 MHz 4620 6640 3420 20 8060-10990 20 Band Pass LTCC SMT 50
BFCN-5750+ FV1206-4 LTCC Band Pass Filter, 5650-5850 MHz 5650 5850 DC-4300 20 8000-9000 20 Band Pass LTCC SMT 50
BFCN-7200+ FV1206-4 LTCC Band Pass Filter, 7100-7300 MHz 7100 7300 6650 20 8150 20 Band Pass LTCC SMT 50
BFCN-7350+ FV1206-4 LTCC Band Pass Filter, 7150-7550 MHz 7150 7550 6500 20 8500 20 Band Pass LTCC SMT 50
BFCN-7500+ FV1206-4 LTCC Band Pass Filter, 7450-7650 MHz 7450 7650 6700 20 8800 20 Band Pass LTCC SMT 50
BFCN-7700+ FV1206-4 LTCC Band Pass Filter, 7500-7900 MHz 7500 7900 6800 20 9000 20 Band Pass LTCC SMT 50
BFCN-7900+ FV1206-4 LTCC Band Pass Filter, 7800-8100 MHz 7800 8100 6800 20 9300 20 Band Pass LTCC SMT 50
BFCN-8000+ FV1206-4 LTCC Band Pass Filter, 7900-8100 MHz 7900 8100 7000 20 9300 20 Band Pass LTCC SMT 50
BFCN-8350+ FV1206-4 LTCC Band Pass Filter, 8250-8450 MHz 8250 8450 7400 20 9600 20 Band Pass LTCC SMT 50
BFCN-8450+ FV1206-4 LTCC Band Pass Filter, 8350-8550 MHz 8350 8550 7500 20 9800 20 Band Pass LTCC SMT 50
BFCN-8650+ FV1206-4 LTCC Band Pass Filter, 8550-8750 MHz 8550 8750 7700 20 9900 20 Band Pass LTCC SMT 50
BFCO-252+ NK0402C-1 LTCC Band Pass Filter, 2400-2500 MHz 2400 2500 DC-1500 30 3200-4500 17 Band Pass LTCC SMT 50
BFCO-552+ NK0402C-1 LTCC Band Pass Filter, 4600-6100 MHz 4600 6100 DC-2600 22 10200-18000 26 Band Pass LTCC SMT 50
BFCQ-1162+ NL1008C-7 LTCC Band Pass Filter, 10700-12700 MHz 10700 12700 100-8800 40 15100-27000 38 Band Pass LTCC SMT 50
BFCQ-1892+ NL1008C-7 LTCC Band Pass Filter, 17700-20200 MHz 17700 20200 100-14500 55 24000-40000 45 Band Pass LTCC SMT 50
BFCQ-1932+ NL1008C-7 LTCC Band Pass Filter, 17700-21000 MHz 17700 21000 DC-14600 30 25600-40000 40 Band Pass LTCC SMT 50
BFCQ-2552+ NL1008C-6 LTCC Band Pass Filter, 25200-26600 MHz 25200 26200 DC-22200 35 29500-50000 35 Band Pass LTCC SMT 50
BFCQ-2602+ NL1008C-6 LTCC Band Pass Filter, 25000-27500 MHz 25000 27500 DC-21700 37 31000-50000 36 Band Pass LTCC SMT 50
BFCQ-2702+ NL1008C-6 LTCC Band Pass Filter, 22000-31000 MHz 22000 31000 100-17100 27 25700-48000 43 Band Pass LTCC SMT 50
BFCQ-2802+ NL1008C-6 LTCC Band Pass Filter, 27500-29500 MHz 27500 29500 DC-24200 36 32500-53000 34 Band Pass LTCC SMT 50
BFCQ-2872+ NL1008C-7 LTCC Band Pass Filter, 27500-30000 MHz 27500 30000 100-22200 32 35300-55000 28.4 Band Pass LTCC SMT 50
BFCQ-3402+ NL1008C-6 LTCC Band Pass Filter, 29000-39000 MHz 29000 39000 100-21900 25 44000-67000 21 Band Pass LTCC SMT 50
BFCQ-3852A+ NL1008C-6 LTCC Band Pass Filter, 37000-40000 MHz 37000 40000 DC-33200 45 44800-58000 25 Band Pass LTCC SMT 50
BFCQ-4302+ NL1008C-6 LTCC Band Pass Filter, 36500-50000 MHz 36500 50000 100-27000 26 57300-67000 16 Band Pass LTCC SMT 50
BFCV-2610+ JV1210C LTCC Band Pass Filter, 2000-3220 MHz 2000 3220 DC-1550 20 4500-8000 20 Band Pass LTCC SMT 50
BFCV-2792+ JV1210C-10 LTCC Band Pass Filter, 27500-28350 MHz 27500 28350 DC-25500 26 31000-45000 12 Band Pass LTCC SMT 50
BFCV-2852+ JV1210C-10 LTCC Band Pass Filter, 28000-28800 MHz 28000 28800 DC-25500 26 31000-45000 12 Band Pass LTCC SMT 50
BFCV-2895+ JV1210C LTCC Band Pass Filter, 2220-3570 MHz 2220 3570 DC-1785 20 4440-7000 20 Band Pass LTCC SMT 50
BFCV-3350+ JV1210C LTCC Band Pass Filter, 2570-4130 MHz 2570 4130 DC-1900 20 5140-8000 20 Band Pass LTCC SMT 50
BFCV-3641+ JV1210C-2 LTCC Band Pass Filter, 3400-3850 MHz 3400 3850 DC-2900 20 4700-12400 20 Band Pass LTCC SMT 50
BFCV-4085+ JV1210C LTCC Band Pass Filter, 3130-5040 MHz 3130 5040 DC-2520 20 6260-8000 20 Band Pass LTCC SMT 50
BFCV-5270+ JV1210C LTCC Band Pass Filter, 4040-6500 MHz 4040 6500 DC-3250 20 8080-14000 20 Band Pass LTCC SMT 50
BFCW-252+ JC0603C-1 LTCC Band Pass Filter, 2400-2500 MHz 2400 2500 DC-1860 20 3100-8000 20 Band Pass LTCC SMT 50
BFCW-542+ JC0603C-1 LTCC Band Pass Filter, 4700-6000 MHz 4700 6000 DC-2500 20 9800-12000 20 Band Pass LTCC SMT 50
BFHK-1072+ NM1812C-3 LTCC Band Pass Filter, 9200-11300 MHz 9200 11300 2000-6000 90 15100-30000 90 Band Pass LTCC SMT 50
BFHK-1252+ NM1812C-3 LTCC Band Pass Filter, 10900-13900 MHz 10900 13900 100-8100 80 17100-32000 70 Band Pass LTCC SMT 50
BFHK-1272+ NM1812C-3 LTCC Band Pass Filter, 11900-12800 MHz 11900 12800 2000-8600 80 16700-38000 70 Band Pass LTCC SMT 50
BFHK-1572+ NM1812C-3 LTCC Band Pass Filter, 13900-17500 MHz 13900 17500 100-10300 80 21300-40000 70 Band Pass LTCC SMT 50
BFHK-1982+ NM1812C-3 LTCC Band Pass Filter, 17500-22200 MHz 17500 22200 100-12600 80 27500-53000 55 Band Pass LTCC SMT 50
BFHK-2492+ NM1812C-3 LTCC Band Pass Filter, 22000-28000 MHz 22000 28000 100-16000 85 34000-67000 55 Band Pass LTCC SMT 50
BFHK-2582+ NM1812C-2 LTCC Band Pass Filter, 24250-27500 MHz 24250 27500 DC-21700 40 29430 30 Band Pass LTCC SMT 50
BFHK-2802+ NM1812C-2 LTCC Band Pass Filter, 26500-29500 MHz 26500 29500 DC-24500 25 32000-44000 33 Band Pass LTCC SMT 50
BFHK-3142+ NM1812C-3 LTCC Band Pass Filter, 28000-36000 MHz 28000 36000 100-20000 85 44000-67000 40 Band Pass LTCC SMT 50
BFHK-4951+ NM1812C-3 LTCC Band Pass Filter, 4300-5300 MHz 4300 5300 100-2800 78 6700-12300 73 Band Pass LTCC SMT 50
BFHK-6251+ NM1812C-3 LTCC Band Pass Filter, 5350-6700 MHz 5350 6700 100-3500 80 8600-15500 76 Band Pass LTCC SMT 50
BFHK-6751+ NM1812C-3 LTCC Band Pass Filter, 5900-6900 MHz 5900 6900 1000-4000 90 9200-20000 90 Band Pass LTCC SMT 50
BFHK-7851+ NM1812C-3 LTCC Band Pass Filter, 6700-8600 MHz 6700 8600 100-4600 80 10900-18500 80 Band Pass LTCC SMT 50
BFHK-8501+ NM1812C-3 LTCC Band Pass Filter, 7500-8800 MHz 7500 8800 2000-4700 90 11900-25000 90 Band Pass LTCC SMT 50
BFHK-9901+ NM1812C-3 LTCC Band Pass Filter, 8600-10900 MHz 8600 10900 100-5800 80 13900-23400 80 Band Pass LTCC SMT 50
BFHKI-1072+ NM3237 LTCC Band Pass Filter, 9200-11300 MHz 9200 11300 100-6000 65 15100-30000 50 Band Pass LTCC SMT 50
BFHKI-1252+ NM3237 LTCC Band Pass Filter, 10900-13900 MHz 10900 13900 100-8100 65 17100-32000 38 Band Pass LTCC SMT 50
BFHKI-1272+ NM3237 LTCC Band Pass Filter, 11900-12800 MHz 11900 12800 100-8600 65 16700-38000 35 Band Pass LTCC SMT 50
BFHKI-1572+ NM3237 LTCC Band Pass Filter, 13900-17500 MHz 13900 17500 100-10300 65 21300-40000 50 Band Pass LTCC SMT 50
BFHKI-1982+ NM3237 LTCC Band Pass Filter, 17500-22200 MHz 17500 22200 100-12600 65 27500-46500 50 Band Pass LTCC SMT 50
BFHKI-2492+ NM3237 LTCC Band Pass Filter, 22000-28000 MHz 22000 28000 100-16000 50 34000-60000 50 Band Pass LTCC SMT 50
BFHKI-3142+ NM3237 LTCC Band Pass Filter, 28000-33000 MHz 28000 33000 100-20000 50 44000-60000 45 Band Pass LTCC SMT 50
BFHKI-4951+ NM3237 LTCC Band Pass Filter, 4300-5300 MHz 4350 5300 100-2800 72 6700-12300 63 Band Pass LTCC SMT 50
BFHKI-6251+ NM3237 LTCC Band Pass Filter, 5350-6700 MHz 5350 6700 100-3500 72 8600-15500 65 Band Pass LTCC SMT 50
BFHKI-6751+ NM3237 LTCC Band Pass Filter, 5900-6900 MHz 5900 6900 1000-4000 72 9200-20000 60 Band Pass LTCC SMT 50
BFHKI-7851+ NM3237 LTCC Band Pass Filter, 6700-8600 MHz 6700 8600 100-4600 70 10900-18500 50 Band Pass LTCC SMT 50
BFHKI-8501+ NM3237 LTCC Band Pass Filter, 7500-8800 MHz 7500 8800 100-4700 72 11900-25000 50 Band Pass LTCC SMT 50
BFHKI-9901+ NM3237 LTCC Band Pass Filter, 8600-10900 MHz 8600 10900 100-5800 65 13900-23400 50 Band Pass LTCC SMT 50
BFTC-415+ FR933-1 LTCC Band Pass Filter, 330-500 MHz 330 500 1-240 20 650-1800 20 Band Pass LTCC SMT 50
BFTC-500+ FR933-1 LTCC Band Pass Filter, 400-600 MHz 400 600 1-290 20 800-2000 20 Band Pass LTCC SMT 50
BFTC-615+ FR933-1 LTCC Band Pass Filter, 450-780 MHz 450 780 1-320 20 970-2400 20 Band Pass LTCC SMT 50
BFTC-618+ FR933-1 LTCC Band Pass Filter, 460-776 MHz 460 776 1-330 20 980-2400 20 Band Pass LTCC SMT 50
BPF-A60+ HQ1157 Lumped LC Band Pass Filter, 55-65 MHz 55 65 DC-50 20 75-900 20 Band Pass Lumped LC SMT 50
BPF-A69+ HQ1157 Lumped LC Band Pass Filter, 55-83 MHz 55 83 40 20 97 20 Band Pass Lumped LC SMT 50
BPF-A75+ HQ1157 Lumped LC Band Pass Filter, 72-78 MHz 72 78 65 20 88 20 Band Pass Lumped LC SMT 50
BPF-A76+ HQ1157 Lumped LC Band Pass Filter, 74-77 MHz 74 77 65 20 86 20 Band Pass Lumped LC SMT 50
BPF-A113+ HQ1157 Lumped LC Band Pass Filter, 108-118 MHz 108 118 95 20 140 20 Band Pass Lumped LC SMT 50
BPF-A120+ HQ1157 Lumped LC Band Pass Filter, 100-140 MHz 100 140 DC-82 20 170-3000 20 Band Pass Lumped LC SMT 50
BPF-A122+ HQ1157 Lumped LC Band Pass Filter, 119-125 MHz 119 125 111 20 132 20 Band Pass Lumped LC SMT 50
BPF-A127+ HQ1157 Lumped LC Band Pass Filter, 118-137 MHz 118 137 105 20 155 20 Band Pass Lumped LC SMT 50
BPF-A332+ HQ1157 Lumped LC Band Pass Filter, 329-335 MHz 329 335 305 20 365 20 Band Pass Lumped LC SMT 50
BPF-A355+ HQ1157 Lumped LC Band Pass Filter, 310-400 MHz 310 400 DC-237 20 450-1400 20 Band Pass Lumped LC SMT 50
BPF-A400+ HQ1157 Lumped LC Band Pass Filter, 390-410 MHz 390 410 350 20 490 20 Band Pass Lumped LC SMT 50
BPF-A410+ HQ1157 Lumped LC Band Pass Filter, 365-455 MHz 365 455 300 20 515 20 Band Pass Lumped LC SMT 50
BPF-A475+ HQ2706 Lumped LC Band Pass Filter, 400-550 MHz 400 550 DC-300 30 650-5000 30 Band Pass Lumped LC SMT 50
BPF-A490+ HQ1157 Lumped LC Band Pass Filter, 400-600 MHz 400 600 280 20 680 20 Band Pass Lumped LC SMT 50
BPF-A535+ HQ1157 Lumped LC Band Pass Filter, 460-610 MHz 460 610 DC-380 20 700-1600 20 Band Pass Lumped LC SMT 50
BPF-A580+ HQ1157 Lumped LC Band Pass Filter, 520-640 MHz 520 640 440 20 720 20 Band Pass Lumped LC SMT 50
BPF-A587R5+ HQ1157 Lumped LC Band Pass Filter, 475-700 MHz 475 700 DC-390 35 820-3800 30 Band Pass Lumped LC SMT 50
BPF-A600+ HQ1157 Lumped LC Band Pass Filter, 500-700 MHz 500 700 DC-380 20 795-1800 20 Band Pass Lumped LC SMT 50
BPF-A730+ HQ1157 Lumped LC Band Pass Filter, 670-795 MHz 670 795 610 20 910 20 Band Pass Lumped LC SMT 50
BPF-A800+ HQ1157 Lumped LC Band Pass Filter, 795-805 MHz 795 805 700 20 900 20 Band Pass Lumped LC SMT 50
BPF-A950+ HQ1157 Lumped LC Band Pass Filter, 700-1200 MHz 700 1200 DC-620 20 1310-2500 20 Band Pass Lumped LC SMT 50
BPF-A1140+ HQ1157 Lumped LC Band Pass Filter, 840-1440 MHz 840 1440 DC-711 20 1577-3000 20 Band Pass Lumped LC SMT 50
BPF-A1340+ HQ1157 Lumped LC Band Pass Filter, 1000-1800 MHz 1000 1800 800 20 2300 20 Band Pass Lumped LC SMT 50
BPF-A1600+ HQ1157 Lumped LC Band Pass Filter, 1400-1800 MHz 1400 1800 DC-1220 20 1980-3300 20 Band Pass Lumped LC SMT 50
BPF-AS1600-75+ TK2678 Lumped LC Band Pass Filter, 950-2250 MHz 950 2250 DC-480 30 3000-3500 20 Band Pass Lumped LC SMT 75
BPF-B48+ HZ1198 Lumped LC Band Pass Filter, 47-49 MHz 47 49 41 20 56 20 Band Pass Lumped LC SMT 50
BPF-B59+ HZ1198 Lumped LC Band Pass Filter, 57-61 MHz 57 61 DC-52 20 68-2600 20 Band Pass Lumped LC SMT 50
BPF-B63+ HZ1198 Lumped LC Band Pass Filter, 61-65 MHz 61 65 DC-56 20 72-2800 20 Band Pass Lumped LC SMT 50
BPF-B140N+ HZ1198 Lumped LC Band Pass Filter, 135-143 MHz 135 143 126 20 154 20 Band Pass Lumped LC SMT 50
BPF-B140W+ HZ1198 Lumped LC Band Pass Filter, 135-145 MHz 135 145 117 20 165 20 Band Pass Lumped LC SMT 50
BPF-B157+ HZ1198 Lumped LC Band Pass Filter, 151-163 MHz 151 163 131 20 187 20 Band Pass Lumped LC SMT 50
BPF-B177+ HZ1198 Lumped LC Band Pass Filter, 170-185 MHz 170 185 150 20 210 20 Band Pass Lumped LC SMT 50
BPF-B190+ HZ1198 Lumped LC Band Pass Filter, 185-195 MHz 185 195 170 20 212 20 Band Pass Lumped LC SMT 50
BPF-B199+ HZ1198 Lumped LC Band Pass Filter, 194-204 MHz 194 204 DC-179 20 221-2000 20 Band Pass Lumped LC SMT 50
BPF-B503+ HZ1198 Lumped LC Band Pass Filter, 495-510 MHz 495 510 440 20 565 20 Band Pass Lumped LC SMT 50
BPF-BC300+ TS2825 Lumped LC Band Pass Filter, 290-310 MHz 290 310 DC-240 50 350-4000 25 Band Pass Lumped LC SMT 50
BPF-BC300A+ TS2825 Lumped LC Band Pass Filter, 260-340 MHz 260 340 DC-220 40 380-4000 25 Band Pass Lumped LC SMT 50
BPF-BD1400+ TV2849 Lumped LC Band Pass Filter, 1200-1600 MHz 1200 1600 DC-1000 25 1800-3000 25 Band Pass Lumped LC SMT 50
BPF-BD1800+ TV2849 Lumped LC Band Pass Filter, 1600-2000 MHz 1600 2000 DC-1400 25 2200-4000 25 Band Pass Lumped LC SMT 50
BPF-BY250+ ZV3471 Lumped LC Band Pass Filter, 150-350 MHz 150 350 DC-75 30 444-4000 30 Band Pass Lumped LC SMT 50
BPF-C4R5+ HU1186 Lumped LC Band Pass Filter, 2-7 MHz 2 7 DC-0.6 20 17-2100 20 Band Pass Lumped LC SMT 50
BPF-C45+ HU1186 Lumped LC Band Pass Filter, 30-70 MHz 30 70 23 20 95 20 Band Pass Lumped LC SMT 50
BPF-C59+ HU1186 Lumped LC Band Pass Filter, 30-88 MHz 30 88 DC-22 20 115-4500 20 Band Pass Lumped LC SMT 50
BPF-C70+ HU1186 Lumped LC Band Pass Filter, 69.5-70.5 MHz 69.5 70.5 DC-66 20 75-1000 20 Band Pass Lumped LC SMT 50
BPF-C73+ HU1186 Lumped LC Band Pass Filter, 63-85 MHz 63 85 45 20 105 20 Band Pass Lumped LC SMT 50
BPF-C75+ HU1186 Lumped LC Band Pass Filter, 60-90 MHz 60 90 46 20 102 20 Band Pass Lumped LC SMT 50
BPF-C138+ HU1186 Lumped LC Band Pass Filter, 105-180 MHz 105 180 87 20 201 20 Band Pass Lumped LC SMT 50
BPF-C141+ HU1186 Lumped LC Band Pass Filter, 110-180 MHz 110 180 92 20 213 20 Band Pass Lumped LC SMT 50
BPF-C450+ HU1186 Lumped LC Band Pass Filter, 400-510 MHz 400 510 310 20 700 20 Band Pass Lumped LC SMT 50
BPF-C495+ HU1186 Lumped LC Band Pass Filter, 470-520 MHz 470 520 DC-410 20 625-2600 20 Band Pass Lumped LC SMT 50
BPF-C510+ HU1186 Lumped LC Band Pass Filter, 20-1000 MHz 20 1000 DC-17 20 1150-1800 20 Band Pass Lumped LC SMT 50
BPF-C550+ HU1186 Lumped LC Band Pass Filter, 100-1000 MHz 100 1000 DC-80 35 1200-2000 35 Band Pass Lumped LC SMT 50
BPF-C587+ HU1186 Lumped LC Band Pass Filter, 470-705 MHz 470 705 DC-400 20 800-1500 20 Band Pass Lumped LC SMT 50
BPF-C650+ HU1186 Lumped LC Band Pass Filter, 560-780 MHz 560 780 DC-365 20 965-2700 20 Band Pass Lumped LC SMT 50
BPF-C670+ HU1186 Lumped LC Band Pass Filter, 470-870 MHz 470 870 280 20 890 20 Band Pass Lumped LC SMT 50
BPF-E16+ HR1176 Lumped LC Band Pass Filter, 2-30 MHz 2 30 DC-1.4 20 35-500 20 Band Pass Lumped LC SMT 50
BPF-F100+ HP1156 Lumped LC Band Pass Filter, 95-105 MHz 95 105 DC-85 35 120-900 35 Band Pass Lumped LC SMT 50
BPF-F150+ HP1156 Lumped LC Band Pass Filter, 145-155 MHz 145 155 DC-133 35 170-1400 35 Band Pass Lumped LC SMT 50
BPF-F184+ HP1156 Lumped LC Band Pass Filter, 154.32-214.32 MHz 154.32 214.32 DC-139 20 242-2800 20 Band Pass Lumped LC SMT 50
BPF-F200+ HP1156 Lumped LC Band Pass Filter, 195-205 MHz 195 205 177 – 182 40 225 – 1600 45 Band Pass Lumped LC SMT 50
BPF-F598+ HP1156 Lumped LC Band Pass Filter, 410-785 MHz 410 785 DC-385 20 825-1600 20 Band Pass Lumped LC SMT 50
BPF-F1250+ HP1156 Lumped LC Band Pass Filter, 1050-1450 MHz 1050 1450 DC-960 20 1640-2500 20 Band Pass Lumped LC SMT 50
BPF-V300+ KV1974 Lumped LC Band Pass Filter, 230-370 MHz 230 370 DC-170 20 440-3000 20 Band Pass Lumped LC SMT 50
BPF-V1000+ KV1974 Lumped LC Band Pass Filter, 940-1060 MHz 940 1060 DC-860 35 1140-3000 35 Band Pass Lumped LC SMT 50
BPGE-252R+ GE0805C-3 LTCC Band Pass Filter, 2400-2500 MHz 2400 2500 1200-1300 42 3600-3800 43 Band Pass LTCC SMT 50
BPGE-542R+ GE0805C-3 LTCC Band Pass Filter, 4900-5920 MHz 4900 5920 3500 49 14700-17760 30 Band Pass LTCC SMT 50
BPHI-332+ HQ1157 Lumped LC Band Pass Filter, 329-335 MHz 329 335 300-313 20 343-370 20 Band Pass Lumped LC SMT 50
BPHI-370+ HQ1157 Lumped LC Band Pass Filter, 350-390 MHz 350 390 DC-305 30 430-4000 30 Band Pass Lumped LC SMT 50
BPJC-252R+ JC0603C-1 LTCC Band Pass Filter, 2400-2500 MHz 2400 2500 1910 26 3200 38 Band Pass LTCC SMT 50
BPJC-542R+ JC0603C-1 LTCC Band Pass Filter, 4900-5900 MHz 4900 5900 DC-2700 40 9800-12000 34 Band Pass LTCC SMT 50
BPNK-252R+ NK0402C-1 LTCC Band Pass Filter, 2400-2500 MHz 2400 2500 692-800 40 4800-5000 23 Band Pass LTCC SMT 50
BPNK-542R+ NK0402C-1 LTCC Band Pass Filter, 4900-5950 MHz 4900 5950 2400-2500 23 14700-17850 38 Band Pass LTCC SMT 50
BPNL-1891+ NL1008C-3 LTCC Band Pass Filter, 1790-2000 MHz 1790 2000 1090 36 2615-5935 33 Band Pass LTCC SMT 50
CBP-670F+ KV1710 Ceramic Resonator Band Pass Filter, 645-695 MHz 645 695 DC-613 20 728-1500 20 Band Pass Ceramic Resonator SMT 50
CBP-770C+ MP1766 Ceramic Resonator Band Pass Filter, 760-780 MHz 760 780 DC-705 20 840-1650 20 Band Pass Ceramic Resonator SMT 50
CBP-804F+ KV1710 Ceramic Resonator Band Pass Filter, 783-825 MHz 783 825 DC-750 20 860-1900 20 Band Pass Ceramic Resonator SMT 50
CBP-840C+ MP1766 Ceramic Resonator Band Pass Filter, 790-890 MHz 790 890 DC-665 20 1070-1600 20 Band Pass Ceramic Resonator SMT 50
CBP-893C+ MP1766 Ceramic Resonator Band Pass Filter, 870-915 MHz 870 915 DC-750 20 1050-1700 20 Band Pass Ceramic Resonator SMT 50
CBP-897G+ NC1916 Ceramic Resonator Band Pass Filter, 887-907 MHz 887 907 DC-850 20 945-2000 20 Band Pass Ceramic Resonator SMT 50
CBP-915C+ MP1766 Ceramic Resonator Band Pass Filter, 902.5-927.5 MHz 902.5 927.5 DC-830 20 1005-1800 20 Band Pass Ceramic Resonator SMT 50
CBP-1000F+ KV1710 Ceramic Resonator Band Pass Filter, 900-1100 MHz 900 1100 DC-790 20 1260-1800 20 Band Pass Ceramic Resonator SMT 50
CBP-1023A+ KV1514 Ceramic Resonator Band Pass Filter, 1005-1041 MHz 1005 1041 DC-970 20 1075-2400 20 Band Pass Ceramic Resonator SMT 50
CBP-1034C+ MP1766 Ceramic Resonator Band Pass Filter, 978-1090 MHz 978 1090 DC-790 20 1400-2000 20 Band Pass Ceramic Resonator SMT 50
CBP-1060Q+ HQ2299 Ceramic Resonator Band Pass Filter, 1030-1090 MHz 1030 1090 500-930 20 1190-1400 20 Band Pass Ceramic Resonator SMT 50
CBP-1062C+ MP1766 Ceramic Resonator Band Pass Filter, 960-1164 MHz 960 1164 DC-735 20 1620-1900 20 Band Pass Ceramic Resonator SMT 50
CBP-1090C+ MP1766 Ceramic Resonator Band Pass Filter, 1060-1120 MHz 1060 1120 DC-955 20 1255-2200 20 Band Pass Ceramic Resonator SMT 50
CBP-1120F+ KV1710 Ceramic Resonator Band Pass Filter, 1020-1220 MHz 1020 1220 DC-880 20 1420-2000 20 Band Pass Ceramic Resonator SMT 50
CBP-1170C+ MP1766 Ceramic Resonator Band Pass Filter, 1110-1230 MHz 1110 1230 DC-900 20 1560-2200 20 Band Pass Ceramic Resonator SMT 50
CBP-1183A+ KV1514 Ceramic Resonator Band Pass Filter, 1165-1201 MHz 1165 1201 DC-1130 20 1235-2800 20 Band Pass Ceramic Resonator SMT 50
CBP-1228C+ MP1766 Ceramic Resonator Band Pass Filter, 1217-1238 MHz 1217 1238 DC-1140 20 1330-3000 20 Band Pass Ceramic Resonator SMT 50
CBP-1250C+ MP1766 Ceramic Resonator Band Pass Filter, 1215-1285 MHz 1215 1285 DC-1055 20 1510-2500 20 Band Pass Ceramic Resonator SMT 50
CBP-1260C+ MP1766 Ceramic Resonator Band Pass Filter, 1200-1320 MHz 1200 1320 DC-1025 20 1640-2450 20 Band Pass Ceramic Resonator SMT 50
CBP-1280C+ MP1766 Ceramic Resonator Band Pass Filter, 1170-1390 MHz 1170 1390 DC-950 20 1850-2450 20 Band Pass Ceramic Resonator SMT 50
CBP-1280F+ KV1710 Ceramic Resonator Band Pass Filter, 1160-1400 MHz 1160 1400 DC-1000 20 1570-2100 20 Band Pass Ceramic Resonator SMT 50
CBP-1300A+ KV1514 Ceramic Resonator Band Pass Filter, 1200-1400 MHz 1200 1400 DC-1040 20 1640-3100 20 Band Pass Ceramic Resonator SMT 50
CBP-1307C+ MP1766 Ceramic Resonator Band Pass Filter, 1215-1400 MHz 1215 1400 DC-1000 20 1820-2500 20 Band Pass Ceramic Resonator SMT 50
CBP-1320Q+ HQ2299 Ceramic Resonator Band Pass Filter, 1280-1360 MHz 1280 1360 900-1170 20 1490-20000 20 Band Pass Ceramic Resonator SMT 50
CBP-1350C+ MP1766 Ceramic Resonator Band Pass Filter, 1300-1400 MHz 1300 1400 DC-1125 20 1665-2700 20 Band Pass Ceramic Resonator SMT 50
CBP-1400BD+ LW1611-1 Ceramic Resonator Band Pass Filter, 1320-1480 MHz 1320 1480 DC-1224 27 1700-2300 55 Band Pass Ceramic Resonator SMT 50
CBP-1400E+ LW1611 Ceramic Resonator Band Pass Filter, 1320-1480 MHz 1320 1480 DC-1150 20 1600-2400 20 Band Pass Ceramic Resonator SMT 50
CBP-1400F+ KV1710 Ceramic Resonator Band Pass Filter, 1300-1500 MHz 1300 1500 DC-1090 20 1740-2450 20 Band Pass Ceramic Resonator SMT 50
CBP-1414A+ KV1514 Ceramic Resonator Band Pass Filter, 1402-1426 MHz 1402 1426 1310-1352 30 1480-3000 30 Band Pass Ceramic Resonator SMT 50
CBP-1423AF+ SV2484 Ceramic Resonator Band Pass Filter, 1333-1513 MHz 1333 1513 DC-1113 60 1669-2600 55 Band Pass Ceramic Resonator SMT 50
CBP-1450F+ KV1710 Ceramic Resonator Band Pass Filter, 1320-1580 MHz 1320 1580 DC-1150 20 1775-2350 20 Band Pass Ceramic Resonator SMT 50
CBP-1475E+ LW1611 Ceramic Resonator Band Pass Filter, 1375-1575 MHz 1375 1575 DC-1230 40 1750-2600 40 Band Pass Ceramic Resonator SMT 50
CBP-1476BD+ LW1611-1 Ceramic Resonator Band Pass Filter, 1427-1525 MHz 1427 1525 DC-1340 26 1590-2500 26 Band Pass Ceramic Resonator SMT 50
CBP-1490A+ KV1514 Ceramic Resonator Band Pass Filter, 1465-1515 MHz 1465 1515 DC-1430 20 1550-3000 20 Band Pass Ceramic Resonator SMT 50
CBP-1538J+ MQ1770 Ceramic Resonator Band Pass Filter, 1518-1559 MHz 1518 1559 DC-1390 20 1750-3000 20 Band Pass Ceramic Resonator SMT 50
CBP-1555C+ MP1766 Ceramic Resonator Band Pass Filter, 1525-1585 MHz 1525 1585 DC-1415 20 1700-3600 20 Band Pass Ceramic Resonator SMT 50
CBP-1598AF+ SV2484 Ceramic Resonator Band Pass Filter, 1505.5-1690.5 MHz 1505.5 1690.5 DC-1264 60 1888-2900 60 Band Pass Ceramic Resonator SMT 50
CBP-1630F+ KV1710 Ceramic Resonator Band Pass Filter, 1500-1760 MHz 1500 1760 DC-1320 20 1960-2600 20 Band Pass Ceramic Resonator SMT 50
CBP-1645J+ MQ1770 Ceramic Resonator Band Pass Filter, 1616-1675 MHz 1616 1675 DC-1500 20 1850-3000 20 Band Pass Ceramic Resonator SMT 50
CBP-1748C+ MP1766 Ceramic Resonator Band Pass Filter, 1710-1785 MHz 1710 1785 DC-1580 20 1960-4000 20 Band Pass Ceramic Resonator SMT 50
CBP-1773AF+ SV2484 Ceramic Resonator Band Pass Filter, 1678-1868 MHz 1678 1868 DC-1400 65 2150-2700 60 Band Pass Ceramic Resonator SMT 50
CBP-1820F+ KV1710 Ceramic Resonator Band Pass Filter, 1680-1960 MHz 1680 1960 DC-1510 20 2170-3000 20 Band Pass Ceramic Resonator SMT 50
CBP-1880E+ LW1611 Ceramic Resonator Band Pass Filter, 1780-1980 MHz 1780 1980 DC-1550 20 2150-3300 20 Band Pass Ceramic Resonator SMT 50
CBP-1905AN+ TJ2826-1 Ceramic Resonator Band Pass Filter, 1785-2025 MHz 1785 2025 DC-1525 27 2365-3200 26 Band Pass Ceramic Resonator SMT 50
CBP-1950C+ MP1766 Ceramic Resonator Band Pass Filter, 1920-1980 MHz 1920 1980 DC-1740 20 2190-4300 20 Band Pass Ceramic Resonator SMT 50
CBP-1953AF+ SV2484 Ceramic Resonator Band Pass Filter, 1858-2048 MHz 1858 2048 DC-1500 65 2400-3500 50 Band Pass Ceramic Resonator SMT 50
CBP-2150AN+ TJ2826-1 Ceramic Resonator Band Pass Filter, 2000-2300 MHz 2000 2300 DC-1700 27 3200-3620 40 Band Pass Ceramic Resonator SMT 50
CBP-2250A+ KU1513 Ceramic Resonator Band Pass Filter, 2000-2500 MHz 2000 2500 DC-1630 20 2900-6000 35 Band Pass Ceramic Resonator SMT 50
CBP-2400A+ KU1513 Ceramic Resonator Band Pass Filter, 2200-2600 MHz 2200 2600 DC-1780 20 3480-4200 20 Band Pass Ceramic Resonator SMT 50
CBP-5800AG+ RZ2511 Ceramic Resonator Band Pass Filter, 5725-5825 MHz 5725 5825 DC-5100 20 6250-7300 20 Band Pass Ceramic Resonator SMT 50
CBP-A1060C+ MP1766 Ceramic Resonator Band Pass Filter, 1015-1105 MHz 1015 1105 DC-865 20 1350-2250 20 Band Pass Ceramic Resonator SMT 50
CBP-A1230C+ MP1766 Ceramic Resonator Band Pass Filter, 1160-1300 MHz 1160 1300 DC-950 20 1670-2400 20 Band Pass Ceramic Resonator SMT 50
CBP-B1230C+ MP1766 Ceramic Resonator Band Pass Filter, 1120-1340 MHz 1120 1340 DC-980 20 1750-2350 20 Band Pass Ceramic Resonator SMT 50
CBP2-1300BV+ WA3176-1 Ceramic Resonator Band Pass Filter, 1200-1400 MHz 1200 1400 DC-1090 27 1515-20000 20 Band Pass Ceramic Resonator SMT 50
CBP2-1600AN+ TJ2826-1 Ceramic Resonator Band Pass Filter, 1580-1620 MHz 1580 1620 DC-1495 26 1715-2700 29 Band Pass Ceramic Resonator SMT 50
CBP2-3050BN+ WA3176 Ceramic Resonator Band Pass Filter, 2700-3400 MHz 2700 3400 DC-2465 29 3640-4500 29 Band Pass Ceramic Resonator SMT 50
CBP3-2700BR+ YG3251 Ceramic Resonator Band Pass Filter, 2646-2754 MHz 2646 2754 DC-2400 28 2960-4200 28 Band Pass Ceramic Resonator SMT 50
CBP4-836C+ MP1766 Ceramic Resonator Band Pass Filter, 824-849 MHz 824 849 DC-600 75 1080-1600 60 Band Pass Ceramic Resonator SMT 50
CBP4-942C+ MP1766 Ceramic Resonator Band Pass Filter, 925-960 MHz 925 960 DC-650 75 1250-1750 60 Band Pass Ceramic Resonator SMT 50
CBP4-1650Q+ HQ2218 Ceramic Resonator Band Pass Filter, 1600-1700 MHz 1600 1700 DC-1470 27 1875-5000 30 Band Pass Ceramic Resonator SMT 50
CBP4-1875Q+ HQ2299 Ceramic Resonator Band Pass Filter, 1825-1925 MHz 1825 1925 DC-1775 30 1971-3000 29 Band Pass Ceramic Resonator SMT 50
CBP4-2375Q+ HQ2299-1 Ceramic Resonator Band Pass Filter, 2150-2600 MHz 2150 2600 DC-2020 30 2800-3600 30 Band Pass Ceramic Resonator SMT 50
CBP4-3180AG+ RZ2511-1 Ceramic Resonator Band Pass Filter, 3126-3234 MHz 3126 3234 DC-2990 30 3360-6300 30 Band Pass Ceramic Resonator SMT 50
CBP4-T2656R25+ VS2537 Ceramic Resonator Band Pass Filter, 2631.5-2681 MHz 2631.5 2681 DC-2535 27 2775-4500 27 Band Pass Ceramic Resonator SMT 50
CBP6-507BG+ KV1710-3 Ceramic Resonator Band Pass Filter, 504-509 MHz 504 509 DC-486 52 528-1900 40 Band Pass Ceramic Resonator SMT 50
CBP6-950BB+ KV1710-2 Ceramic Resonator Band Pass Filter, 940-960 MHz 940 960 DC-800 52 1040-1800 52 Band Pass Ceramic Resonator SMT 50
CBP12-1030BE+ UP2912 Ceramic Resonator Band Pass Filter, 1027-1033 MHz 1027 1033 DC-970 80 1800-2000 40 Band Pass Ceramic Resonator SMT 50
CBP12-1090BE+ UP2912 Ceramic Resonator Band Pass Filter, 1087-1093 MHz 1087 1093 DC-1000 80 1800-2000 40 Band Pass Ceramic Resonator SMT 50
CBP12-1411AK+ UR2632 Ceramic Resonator Band Pass Filter, 1395-1427 MHz 1395 1427 DC-1225 34 1650-2400 30 Band Pass Ceramic Resonator SMT 50
CSBP-A940+ KV1514 Ceramic Resonator Band Pass Filter, 880-1000 MHz 880 1000 DC-800 20 1095-1840 20 Band Pass Ceramic Resonator SMT 50
CSBP-A1843+ KU1513 Ceramic Resonator Band Pass Filter, 1765-1920 MHz 1765 1920 DC-1580 20 2095-3300 20 Band Pass Ceramic Resonator SMT 50
CSBP-D1189+ KS1509 Ceramic Resonator Band Pass Filter, 1130-1246 MHz 1130 1246 DC-950 20 1550-2400 20 Band Pass Ceramic Resonator SMT 50
CSBP-D1228+ KS1509 Ceramic Resonator Band Pass Filter, 1203-1253 MHz 1203 1253 DC-1020 20 1425-2500 20 Band Pass Ceramic Resonator SMT 50
JCBP-290+ BG291 Lumped LC Band Pass Filter, 100-480 MHz 100 480 65 20 630 20 Band Pass Lumped LC SMT 50
JCBP-900+ BG291 Lumped LC Band Pass Filter, 480-1320 MHz 480 1320 380 20 1790 20 Band Pass Lumped LC SMT 50
MBPA-693+ QN2178-3 Lumped LC Band Pass Filter, 673-713 MHz 673 713 DC-575 60 790-5000 60 Band Pass Lumped LC SMT 50
PBP-10.7+ A01 Lumped LC Band Pass Filter, 9.5-11.5 MHz 9.5 11.5 7.5 20 15 20 Band Pass Lumped LC Pin 50
PBP-21.4+ A01 Lumped LC Band Pass Filter, 19.2-23.6 MHz 19.2 23.6 15.5 20 29 20 Band Pass Lumped LC Pin 50
PBP-30+ A01 Lumped LC Band Pass Filter, 27-33 MHz 27 33 22 20 40 20 Band Pass Lumped LC Pin 50
PBP-35N+ A01 Lumped LC Band Pass Filter, 30-40 MHz 30 40 21 20 58 20 Band Pass Lumped LC Pin 50
PBP-60+ A01 Lumped LC Band Pass Filter, 55-67 MHz 55 67 44 20 79 20 Band Pass Lumped LC Pin 50
PBP-70+ A01 Lumped LC Band Pass Filter, 63-77 MHz 63 77 51 20 94 20 Band Pass Lumped LC Pin 50
PIF-21.4+ A01 Lumped LC Band Pass Filter, 18-25 MHz 18 25 1.3 20 150 20 Band Pass Lumped LC Pin 50
PIF-30+ A01 Lumped LC Band Pass Filter, 25-35 MHz 25 35 1.9 20 210 20 Band Pass Lumped LC Pin 50
PIF-50+ A01 Lumped LC Band Pass Filter, 41-58 MHz 41 58 3.1 20 350 20 Band Pass Lumped LC Pin 50
PIF-60+ A01 Lumped LC Band Pass Filter, 50-70 MHz 50 70 3.8 20 400 20 Band Pass Lumped LC Pin 50
RBP-75+ GP731 Lumped LC Band Pass Filter, 60-90 MHz 60 90 37 20 122 20 Band Pass Lumped LC SMT 50
RBP-98+ GP731 Lumped LC Band Pass Filter, 75-131 MHz 75 131 55 20 170 20 Band Pass Lumped LC SMT 50
RBP-130+ GP731 Lumped LC Band Pass Filter, 95-180 MHz 95 180 50 20 280 20 Band Pass Lumped LC SMT 50
RBP-135+ GP731 Lumped LC Band Pass Filter, 120-150 MHz 120 150 85 20 210 20 Band Pass Lumped LC SMT 50
RBP-140+ GP731 Lumped LC Band Pass Filter, 130-150 MHz 130 150 DC-100 20 178-3000 20 Band Pass Lumped LC SMT 50
RBP-160+ GP731 Lumped LC Band Pass Filter, 120-210 MHz 120 210 85 20 280 20 Band Pass Lumped LC SMT 50
RBP-173+ GP731 Lumped LC Band Pass Filter, 160-185 MHz 160 185 129 20 230 20 Band Pass Lumped LC SMT 50
RBP-188+ GP731 Lumped LC Band Pass Filter, 138-238 MHz 138 238 DC-96 20 315-3600 20 Band Pass Lumped LC SMT 50
RBP-204+ GP731 Lumped LC Band Pass Filter, 175-237 MHz 175 237 135 20 300 20 Band Pass Lumped LC SMT 50
RBP-220+ GP731 Lumped LC Band Pass Filter, 212-228 MHz 212 228 150 20 290 20 Band Pass Lumped LC SMT 50
RBP-220W+ GP731 Lumped LC Band Pass Filter, 190-250 MHz 190 250 80 20 310 20 Band Pass Lumped LC SMT 50
RBP-253+ GP731 Lumped LC Band Pass Filter, 186-340 MHz 186 340 140 20 440 20 Band Pass Lumped LC SMT 50
RBP-263+ GP731 Lumped LC Band Pass Filter, 230-297 MHz 230 297 140 20 360 20 Band Pass Lumped LC SMT 50
RBP-280+ GP731 Lumped LC Band Pass Filter, 260-310 MHz 260 310 205 20 375 20 Band Pass Lumped LC SMT 50
RBP-400+ GP731 Lumped LC Band Pass Filter, 292-490 MHz 292 490 230 20 620 20 Band Pass Lumped LC SMT 50
RBP-415+ GP731 Lumped LC Band Pass Filter, 404-426 MHz 404 426 225 20 550 20 Band Pass Lumped LC SMT 50
RBP-440+ GP731 Lumped LC Band Pass Filter, 410-470 MHz 410 470 320 20 650 20 Band Pass Lumped LC SMT 50
RBP-650A+ GP731 Lumped LC Band Pass Filter, 624-680 MHz 624 680 550 20 760 20 Band Pass Lumped LC SMT 50
RBPF-246+ CK605 Lumped LC Band Pass Filter, 236-256 MHz 236 256 DC-180 20 315-3400 20 Band Pass Lumped LC SMT 50
RBPF-485+ CK605 Lumped LC Band Pass Filter, 435-535 MHz 435 535 DC-320 20 700-3700 20 Band Pass Lumped LC SMT 50
SBP-10.7+ FF99 Connectorized Band Pass Filter, 9.5-11.5 MHz 9.5 11.5 7.5 20 15 20 Band Pass Lumped LC Conn 50
SBP-20R5+ FF99 Connectorized Band Pass Filter, 20-21 MHz 20 21 DC-17 30 27-380 25 Band Pass Lumped LC Conn 50
SBP-21.4+ FF99 Connectorized Band Pass Filter, 19.2-23.6 MHz 19.2 23.6 15.5 20 29 20 Band Pass Lumped LC Conn 50
SBP-27R5+ FF99 Connectorized Band Pass Filter, 24-31 MHz 24 31 DC-19 30 39-900 30 Band Pass Lumped LC Conn 50
SBP-29+ FF99 Connectorized Band Pass Filter, 24-35 MHz 24 35 DC-18 27 46-1600 27 Band Pass Lumped LC Conn 50
SBP-30+ FF99 Connectorized Band Pass Filter, 27-33 MHz 27 33 22 20 40 20 Band Pass Lumped LC Conn 50
SBP-35A+ FF99 Connectorized Band Pass Filter, 30-40 MHz 30 40 DC-21 27 60-1350 30 Band Pass Lumped LC Conn 50
SBP-35B+ FF99 Connectorized Band Pass Filter, 24-46 MHz 24 46 DC-16 29 73-1000 27 Band Pass Lumped LC Conn 50
SBP-60+ FF99 Connectorized Band Pass Filter, 55-67 MHz 55 67 44 20 79 20 Band Pass Lumped LC Conn 50
SBP-70+ FF99 Connectorized Band Pass Filter, 63-77 MHz 63 77 51 20 94 20 Band Pass Lumped LC Conn 50
SBP-100+ FF99 Connectorized Band Pass Filter, 87-117 MHz 87 117 DC-66 29 143-1500 28 Band Pass Lumped LC Conn 50
SBP-101+ FF99 Connectorized Band Pass Filter, 94-108 MHz 94 108 DC-80 29 130-3300 28 Band Pass Lumped LC Conn 50
SBP-140+ FF99 Connectorized Band Pass Filter, 130-150 MHz 130 150 DC-110 30 185-2000 30 Band Pass Lumped LC Conn 50
SBP-150+ FF99 Connectorized Band Pass Filter, 140-160 MHz 140 160 DC-120 27 190-2000 32 Band Pass Lumped LC Conn 50
SBP-240+ FF99 Connectorized Band Pass Filter, 238-242 MHz 238 242 DC-220 32 260-2000 30 Band Pass Lumped LC Conn 50
SIF-40+ FF99 Connectorized Band Pass Filter, 35-49 MHz 35 49 2.6 20 300 20 Band Pass Lumped LC Conn 50
SIF-50+ FF99 Connectorized Band Pass Filter, 41-58 MHz 41 58 3.1 20 350 20 Band Pass Lumped LC Conn 50
SXBP-20R5+ HF1139 Lumped LC Band Pass Filter, 20-21 MHz 20 21 DC-17 20 27-400 20 Band Pass Lumped LC SMT 50
SXBP-27R5+ HF1139 Lumped LC Band Pass Filter, 24-31 MHz 24 31 DC-19 20 39-900 20 Band Pass Lumped LC SMT 50
SXBP-29+ HF1139 Lumped LC Band Pass Filter, 24-35 MHz 24 35 DC-17 20 48-1600 20 Band Pass Lumped LC SMT 50
SXBP-35N+ HF1139 Lumped LC Band Pass Filter, 30-40 MHz 30 40 21 20 60 20 Band Pass Lumped LC SMT 50
SXBP-35W+ HF1139 Lumped LC Band Pass Filter, 24-46 MHz 24 46 16 20 73 20 Band Pass Lumped LC SMT 50
SXBP-45-75+ HF1139 Lumped LC Band Pass Filter, 5-85 MHz 5 85 DC-1 20 116-3000 20 Band Pass Lumped LC SMT 75
SXBP-69+ HF1139 Lumped LC Band Pass Filter, 61.9-76.5 MHz 61.9 76.5 DC-55 20 87-3200 20 Band Pass Lumped LC SMT 50
SXBP-70+ HF1139 Lumped LC Band Pass Filter, 63-77 MHz 63 77 50 20 95 20 Band Pass Lumped LC SMT 50
SXBP-70W+ HF1139 Lumped LC Band Pass Filter, 50-90 MHz 50 90 DC-2 20 137-1500 20 Band Pass Lumped LC SMT 50
SXBP-72+ HF1139 Lumped LC Band Pass Filter, 68-76 MHz 68 76 DC-60 20 87-4000 20 Band Pass Lumped LC SMT 50
SXBP-75+ HF1139 Lumped LC Band Pass Filter, 62-88 MHz 62 88 DC-40 37 115-2000 38 Band Pass Lumped LC SMT 50
SXBP-100+ HF1139 Lumped LC Band Pass Filter, 87-117 MHz 87 117 66 20 143 20 Band Pass Lumped LC SMT 50
SXBP-101+ HF1139 Lumped LC Band Pass Filter, 94-108 MHz 94 108 DC-80 20 130-3900 20 Band Pass Lumped LC SMT 50
SXBP-140+ HF1139 Lumped LC Band Pass Filter, 130-150 MHz 130 150 110 20 185 20 Band Pass Lumped LC SMT 50
SXBP-150+ HF1139 Lumped LC Band Pass Filter, 140-160 MHz 140 160 120 20 190 20 Band Pass Lumped LC SMT 50
SXBP-157+ HF1139 Lumped LC Band Pass Filter, 150-164 MHz 150 164 131 20 187 20 Band Pass Lumped LC SMT 50
SXBP-161R5+ HF1139 Lumped LC Band Pass Filter, 148-175 MHz 148 175 DC-130 20 200-2300 20 Band Pass Lumped LC SMT 50
SXBP-162+ HF1139 Lumped LC Band Pass Filter, 155-169 MHz 155 169 138 20 200 20 Band Pass Lumped LC SMT 50
SXBP-169+ HF1139 Lumped LC Band Pass Filter, 164-174 MHz 164 174 137 20 205 20 Band Pass Lumped LC SMT 50
SXBP-178+ HF1139 Lumped LC Band Pass Filter, 170-186 MHz 170 186 150 20 210 20 Band Pass Lumped LC SMT 50
SXBP-202+ HF1139 Lumped LC Band Pass Filter, 198-206 MHz 198 206 250 20 2700 20 Band Pass Lumped LC SMT 50
SXBP-240+ HF1139 Lumped LC Band Pass Filter, 238-242 MHz 238 242 220 20 260 20 Band Pass Lumped LC SMT 50
SXBP-300+ HF1139 Lumped LC Band Pass Filter, 290-310 MHz 290 310 DC-200 69 2000-3300 39 Band Pass Lumped LC SMT 50
SXBP-310+ HF1139 Lumped LC Band Pass Filter, 300-320 MHz 300 320 DC-280 20 342-2250 20 Band Pass Lumped LC SMT 50
SXBP-350+ HF1139 Lumped LC Band Pass Filter, 330-375 MHz 330 375 280 20 435 20 Band Pass Lumped LC SMT 50
SXBP-375+ HF1139 Lumped LC Band Pass Filter, 330-420 MHz 330 420 DC-170 50 580-1300 50 Band Pass Lumped LC SMT 50
SXBP-404+ HF1139 Lumped LC Band Pass Filter, 398-410 MHz 398 410 DC-370 20 445-4500 20 Band Pass Lumped LC SMT 50
SXBP-425+ HF1139 Lumped LC Band Pass Filter, 410-440 MHz 410 440 385 20 470 20 Band Pass Lumped LC SMT 50
SXBP-507+ HF1139 Lumped LC Band Pass Filter, 460-560 MHz 460 560 300 20 615 20 Band Pass Lumped LC SMT 50
SXBP-615+ HF1139 Lumped LC Band Pass Filter, 565-670 MHz 565 670 380 20 720 20 Band Pass Lumped LC SMT 50
SXBP-640+ HF1139 Lumped LC Band Pass Filter, 600-680 MHz 600 680 500 20 750 20 Band Pass Lumped LC SMT 50
SXBP-693+ HF1139 Lumped LC Band Pass Filter, 663-723 MHz 663 723 DC-565 27 2000-5000 38 Band Pass Lumped LC SMT 50
SXBP-707+ HF1139 Lumped LC Band Pass Filter, 650-770 MHz 650 770 450 20 830 20 Band Pass Lumped LC SMT 50
SXBP-820+ HF1139 Lumped LC Band Pass Filter, 769-872 MHz 769 872 550 20 920 20 Band Pass Lumped LC SMT 50
SXBP-1100+ HF1139 Lumped LC Band Pass Filter, 1000-1200 MHz 1000 1200 DC-20 20 1500-2200 20 Band Pass Lumped LC SMT 50
SXBP-1200+ HF1317 Lumped LC Band Pass Filter, 800-1800 MHz 800 1800 535 20 2220 20 Band Pass Lumped LC SMT 50
SXBP-1430+ HF1317 Lumped LC Band Pass Filter, 950-2150 MHz 950 2150 575 20 2850 20 Band Pass Lumped LC SMT 50
SXBP-1430-75+ HF1317 Lumped LC Band Pass Filter, 950-2150 MHz 950 2150 540 20 2950 20 Band Pass Lumped LC SMT 75
SXBP-1500+ HF1139 Lumped LC Band Pass Filter, 1350-1650 MHz 1350 1650 DC-75 20 2160-3700 20 Band Pass Lumped LC SMT 50
SXBP-1940+ HF1139 Lumped LC Band Pass Filter, 1710-2170 MHz 1710 2170 DC-145 20 2900-4700 20 Band Pass Lumped LC SMT 50
SXBP-2150+ HF1139 Lumped LC Band Pass Filter, 2050-2250 MHz 2050 2250 DC-950 20 2675-5000 20 Band Pass Lumped LC SMT 50
SYBP-92+ TT1423 Lumped LC Band Pass Filter, 800-1000 MHz 800 1000 DC-530 20 1550-3000 20 Band Pass Lumped LC SMT 50
SYBP-675+ TT1423 Lumped LC Band Pass Filter, 500-850 MHz 500 850 DC-340 28 1275-4500 22 Band Pass Lumped LC SMT 50
SYBP-820+ TT1423 Lumped LC Band Pass Filter, 770-870 MHz 770 870 DC-450 20 1420-2500 20 Band Pass Lumped LC SMT 50
SYBP-1275+ TT1423 Lumped LC Band Pass Filter, 1100-1450 MHz 1100 1450 DC-600 28 2050-5000 25 Band Pass Lumped LC SMT 50
SYBP-1420+ TT1423 Lumped LC Band Pass Filter, 1250-1560 MHz 1250 1560 DC-910 20 2000-5000 20 Band Pass Lumped LC SMT 50
SYBP-1950+ TT1423 Lumped LC Band Pass Filter, 1700-2200 MHz 1700 2200 DC-1030 26 2900-4600 20 Band Pass Lumped LC SMT 50
SYBP-2250+ TT1423 Lumped LC Band Pass Filter, 1880-2620 MHz 1880 2620 DC-1280 20 3640-5400 20 Band Pass Lumped LC SMT 50
SYBP-2640+ TT1423 Lumped LC Band Pass Filter, 2500-2780 MHz 2500 2780 DC-1780 20 3800-6040 20 Band Pass Lumped LC SMT 50
TBP-154+ GQ1018 Lumped LC Band Pass Filter, 136-175 MHz 136 175 DC-108 20 220-3000 20 Band Pass Lumped LC SMT 50
VBF-1445+ FF704 Connectorized Band Pass Filter, 1420-1470 MHz 1420 1470 DC-1140 20 2600-4400 30 Band Pass LTCC Conn 50
VBF-1525+ FF704 Connectorized Band Pass Filter, 1480-1570 MHz 1480 1570 DC-1150 20 2900-5100 30 Band Pass LTCC Conn 50
VBF-1560+ FF704 Connectorized Band Pass Filter, 1500-1620 MHz 1500 1620 1100 20 2100 20 Band Pass LTCC Conn 50
VBF-1575+ FF704 Connectorized Band Pass Filter, 1530-1620 MHz 1530 1620 DC-1200 20 2800-5200 30 Band Pass LTCC Conn 50
VBF-1840+ FF704 Connectorized Band Pass Filter, 1750-1930 MHz 1750 1930 DC-1460 20 3500-5700 30 Band Pass LTCC Conn 50
VBF-1945+ FF704 Connectorized Band Pass Filter, 1850-2040 MHz 1850 2040 DC-1500 20 3600-5700 30 Band Pass LTCC Conn 50
VBF-2275+ FF704 Connectorized Band Pass Filter, 2170-2380 MHz 2170 2380 DC-1720 20 4200-6000 30 Band Pass LTCC Conn 50
VBF-2360+ FF704 Connectorized Band Pass Filter, 2250-2470 MHz 2250 2470 DC-1700 20 4300-6200 30 Band Pass LTCC Conn 50
VBF-2435+ FF704 Connectorized Band Pass Filter, 2340-2530 MHz 2340 2530 DC-1830 20 4300-5500 30 Band Pass LTCC Conn 50
VBF-2555+ FF704 Connectorized Band Pass Filter, 2500-2610 MHz 2500 2610 1970 20 3200 20 Band Pass LTCC Conn 50
VBF-2900+ FF704 Connectorized Band Pass Filter, 2700-3100 MHz 2700 3100 1850 20 4200 20 Band Pass LTCC Conn 50
VBF-4440+ FF704 Connectorized Band Pass Filter, 4200-4700 MHz 4200 4700 2000 20 6750 20 Band Pass LTCC Conn 50
VBF-7200+ FF704 Connectorized Band Pass Filter, 7100-7300 MHz 7100 7300 6500 20 8400 20 Band Pass LTCC Conn 50
VBF-7331+ FF704 Connectorized Band Pass Filter, 6850-7850 MHz 6850 7850 10-5600 23 9300-10500 20 Band Pass LTCC Conn 50
VBF-7500+ FF704 Connectorized Band Pass Filter, 7450-7650 MHz 7450 7650 6400 20 9000 20 Band Pass LTCC Conn 50
VBF-7700+ FF704 Connectorized Band Pass Filter, 7500-7900 MHz 7500 7900 DC-6400 20 9200-14800 20 Band Pass LTCC Conn 50
VBF-7900+ FF704 Connectorized Band Pass Filter, 7800-8100 MHz 7800 8100 DC-6800 20 9500-15000 20 Band Pass LTCC Conn 50
VBF-8450+ FF704 Connectorized Band Pass Filter, 8350-8550 MHz 8350 8550 DC-7420 18 10000-15050 18 Band Pass LTCC Conn 50
VBFZ-780-S+ FF1145 Connectorized Band Pass Filter, 710-850 MHz 710 850 460 20 1300 20 Band Pass LTCC Conn 50
VBFZ-925-S+ FF1145 Connectorized Band Pass Filter, 800-1050 MHz 800 1050 530 20 1550 20 Band Pass LTCC Conn 50
VBFZ-1065-S+ FF1145 Connectorized Band Pass Filter, 980-1150 MHz 980 1150 630 20 1800 20 Band Pass LTCC Conn 50
VBFZ-1400-S+ FF1145 Connectorized Band Pass Filter, 1350-1450 MHz 1350 1450 890 20 1965 20 Band Pass LTCC Conn 50
VBFZ-1690-S+ FF1145 Connectorized Band Pass Filter, 1455-1925 MHz 1455 1925 930 20 2600 20 Band Pass LTCC Conn 50
VBFZ-2000-S+ FF1145 Connectorized Band Pass Filter, 1730-2270 MHz 1730 2270 1210 20 2960 20 Band Pass LTCC Conn 50
VBFZ-2130-S+ FF1145 Connectorized Band Pass Filter, 2000-2260 MHz 2000 2260 1420 20 2950 20 Band Pass LTCC Conn 50
VBFZ-2340-S+ FF1145 Connectorized Band Pass Filter, 2020-2660 MHz 2020 2660 1450 20 3750 20 Band Pass LTCC Conn 50
VBFZ-2575-S+ FF1145 Connectorized Band Pass Filter, 2350-2800 MHz 2350 2800 1390 20 3850 20 Band Pass LTCC Conn 50
VBFZ-3590-S+ FF1145 Connectorized Band Pass Filter, 3000-4300 MHz 3000 4300 2250 20 5950 20 Band Pass LTCC Conn 50
VBFZ-4000-S+ FF1145 Connectorized Band Pass Filter, 3500-4500 MHz 3500 4500 2550 20 5700 20 Band Pass LTCC Conn 50
VBFZ-5500-S+ FF1145 Connectorized Band Pass Filter, 4900-6200 MHz 4900 6200 3600 20 8600 20 Band Pass LTCC Conn 50
VBFZ-6260-S+ FF1145 Connectorized Band Pass Filter, 5600-7000 MHz 5600 7000 4200 20 9300 20 Band Pass LTCC Conn 50
WSBP-26G+ YR3342 SIW Band Pass Filter, 25000-27000 MHz 25000 27000 DC-23000 41 31000-32000 35 Band Pass SIW SMT 50
WVBP-64-WR15+ TH2793-1 Bandpass Filter 59.4 GHz to 61.6 GHz 59400 61600 50000-58400 72 62600-75000 72 Band Pass Rectangular Waveguide Waveguide 50
WVBP-283-WR28+ TH2793-2 Bandpass Filter 27.5 GHz to 28.35 GHz 27500 28350 22000-27000 48 28850-38000 34 Band Pass Rectangular Waveguide Waveguide 50
WVBP-583-WR15+ TH2793-1 Bandpass Filter 57.2 GHz to 59.4 GHz 57200 59400 50000-56200 56 60400-75000 58 Band Pass Rectangular Waveguide Waveguide 50
WVBP-613-WR15+ TH2793-1 Bandpass Filter 57.2 GHz to 65.9 GHz 57200 65900 50000-56200 74 66900-75000 65 Band Pass Rectangular Waveguide Waveguide 50
WVBP-733-WR12+ TH2793 Bandpass Filter 71 GHz to 76 GHz 71000 76000 60000-69500 56 77500-90000 66 Band Pass Rectangular Waveguide Waveguide 50
WVBP-783-WR12+ TH2793 Bandpass Filter 76 GHz to 81 GHz 76000 81000 60000-74500 67 82500-90000 48 Band Pass Rectangular Waveguide Waveguide 50
WVBP-833-WR12+ TH2793 Bandpass Filter 81 GHz to 86 GHz 81000 86000 60000-79000 64 88000-90000 38 Band Pass Rectangular Waveguide Waveguide 50
XBF-24+ DG1847 Reflectionless Band Pass Filter, 19500-20500 MHz 19500 20500 DC – 10000 66 30000 – 32000 55 Band Pass Reflectionless SMT 50
XBF-24-D+   Reflectionless Band Pass Filter Die, 19500-20500 MHz 19500 20500 DC – 10000 76 30000 – 32000 49 Band Pass Reflectionless Die 50
XBF-163+ DG1847 Reflectionless Band Pass Filter, 15500-16500 MHz 15500 16500 DC-8000 55 24000-40000 55 Band Pass Reflectionless SMT 50
XBF-163-D+   Reflectionless Band Pass Filter Die, 15500-16500 MHz 15500 16500 DC – 8000 77 24000 – 30000 53 Band Pass Reflectionless Die 50
XBF-183+ DG1847 Reflectionless Band Pass Filter, 17500-18500 MHz 17500 18500 DC-9000 55 27000-40000 55 Band Pass Reflectionless SMT 50
XBF-183-D+   Reflectionless Band Pass Filter Die, 17500-18500 MHz 17500 18500 DC – 9000 77 27000 – 32000 50 Band Pass Reflectionless Die 50
XBF-282+ DQ1225 Reflectionless Band Pass Filter, 2350-3150 MHz 2350 3150 DC-1810 14 3800-20000 14 Band Pass Reflectionless SMT 50
XBF-282-D+   Reflectionless Band Pass Filter Die, 2350-3150 MHz 2350 3150 DC-1810 14 3800-20000 14 Band Pass Reflectionless Die 50
ZABP-4R5-S+ UU1842 Connectorized Band Pass Filter, 2-7 MHz 2 7 DC – 0.6 20 17 – 100 20 Band Pass Lumped LC Conn 50
ZABP-16+ UU1842 Connectorized Band Pass Filter, 3-30 MHz 3 30 DC-1.4 20 35-1600 20 Band Pass Lumped LC Conn 50
ZABP-45-S+ UU1842 Connectorized Band Pass Filter, 30-70 MHz 30 70 21-23 20 95-120 20 Band Pass Lumped LC Conn 50
ZABP-59-S+ UU1842 Connectorized Band Pass Filter, 30-88 MHz 30 88 16-22 20 115-140 20 Band Pass Lumped LC Conn 50
ZABP-73-S+ UU1842 Connectorized Band Pass Filter, 63-85 MHz 63 85 40-45 20 105-110 20 Band Pass Lumped LC Conn 50
ZABP-141-S+ UU1842 Connectorized Band Pass Filter, 110-180 MHz 110 180 90-92 20 213-217 20 Band Pass Lumped LC Conn 50
ZABP-184-S+ UU1842 Connectorized Band Pass Filter, 154.32-214.32 MHz 154.32 214.32 DC – 139 20 242 – 750 20 Band Pass Lumped LC Conn 50
ZABP-450-S+ UU1842 Connectorized Band Pass Filter, 400-510 MHz 400 510 150-310 20 700-760 20 Band Pass Lumped LC Conn 50
ZABP-495-S+ UU1842 Connectorized Band Pass Filter, 470-520 MHz 470 520 300-410 20 625-800 20 Band Pass Lumped LC Conn 50
ZABP-510-S+ UU1842 Connectorized Band Pass Filter, 20-1000 MHz 20 1000 DC-17 20 1150-2500 20 Band Pass Lumped LC Conn 50
ZABP-550-S+ UU1842 Connectorized Band Pass Filter, 100-1000 MHz 100 1000 DC-80 35 1200-2000 30 Band Pass Lumped LC Conn 50
ZABP-587-S+ UU1842 Connectorized Band Pass Filter, 470-705 MHz 470 705 200-400 20 800-1500 20 Band Pass Lumped LC Conn 50
ZABP-598-S+ UU1842 Connectorized Band Pass Filter, 410-785 MHz 410 785 DC-385 20 825-1000 20 Band Pass Lumped LC Conn 50
ZABP-650-S+ UU1842 Connectorized Band Pass Filter, 560-780 MHz 560 780 185-280 20 890-3500 30 Band Pass Lumped LC Conn 50
ZABP-670-S+ UU1842 Connectorized Band Pass Filter, 470-870 MHz 470 870 280-365 20 965-1200 20 Band Pass Lumped LC Conn 50
ZAFBP-2793-S+ CC1397 Connectorized Band Pass Filter, 2600-3000 MHz 2600 3000 DC-2300 20 3200-7400 20 Band Pass Microstrip Conn 50
ZAFBP-3200-S+ CC1397 Connectorized Band Pass Filter, 3100-3300 MHz 3100 3300 DC-2800 20 3550-8500 20 Band Pass Microstrip Conn 50
ZBPF-98-S+ FM587-1 Connectorized Band Pass Filter, 88-108 MHz 88 108 DC-55 18 400-1000 40 Band Pass Lumped LC Conn 50
ZBSS-3G-S+ VY3280 Connectorized Band Pass Filter, 2000-4000 MHz 2000 4000 DC-1300 60 6000-25000 55 Band Pass Suspended Substrate Conn 50
ZBSS-4G-S+ WF3308 Connectorized Band Pass Filter, 2000-6000 MHz 2000 6000 DC-1400 40 8000-26500 40 Band Pass Suspended Substrate Conn 50
ZBSS-6G-S+ WD3296 Connectorized Band Pass Filter, 4000-8000 MHz 4000 8000 DC-2800 40 10500-26500 40 Band Pass Suspended Substrate Conn 50
ZBSS-9G-S+ WD3296 Connectorized Band Pass Filter, 6000-12000 MHz 6000 12000 DC-4100 40 14200-26500 40 Band Pass Suspended Substrate Conn 50
ZBSS-10G-S+ WD3296 Connectorized Band Pass Filter, 8000-12000 MHz 8000 12000 DC-5800 40 14200-26500 40 Band Pass Suspended Substrate Conn 50
ZBSS-12G-S+ WK3305 Connectorized Band Pass Filter, 6000-18000 MHz 6000 18000 DC-4000 40 20500-26500 40 Band Pass Suspended Substrate Conn 50
ZBSS-15G-S+ WK3305 Connectorized Band Pass Filter, 12000-18000 MHz 12000 18000 DC-9700 40 20500-26500 40 Band Pass Suspended Substrate Conn 50
ZBSS-2250-S+ VC3115 Connectorized Band Pass Filter, 1600-2900 MHz 1600 2900 DC-1300 30 3250-6000 30 Band Pass Suspended Substrate Conn 50
ZBSS-7975-S+ QD2229 Connectorized Band Pass Filter, 7825-8125 MHz 7825 8125 DC-6900 35 9350-15000 35 Band Pass Suspended Substrate Conn 50
ZBSS-A10G-S+ WG3316 Connectorized Band Pass Filter, 2000-18000 MHz 2000 18000 DC-1400 40 20500-26500 40 Band Pass Suspended Substrate Conn 50
ZCBP6-416R5-S+ CC1764 Connectorized Band Pass Filter, 403-430 MHz 403 430 DC-382 27 451-800 28 Band Pass Ceramic Resonator Conn 50
ZCBP6-505-S+ CC1764 Connectorized Band Pass Filter, 490-520 MHz 490 520 DC-466 20 542-950 28 Band Pass Ceramic Resonator Conn 50
ZCBP6-2500-S+ ZZ2007-1 Connectorized Band Pass Filter, 2490-2510 MHz 2490 2510 DC-2385 29 2605-3900 27 Band Pass Ceramic Resonator Conn 50
ZFBP-13.5-S+ H16 Connectorized Band Pass Filter, 12-15 MHz 12 15 8 20 22 30 Band Pass Lumped LC Conn 50
ZFBP-70HR-S+ H16 Connectorized Band Pass Filter, 69-71 MHz 69 71 DC-50 85 100-1000 60 Band Pass Lumped LC Conn 50
ZFBP-400K-S+ H16 Connectorized Band Pass Filter, 0.35-0.45 MHz 0.35 0.45 0.03 20 0.18 20 Band Pass Lumped LC Conn 50
ZFBP-2400-S+ H16 Connectorized Band Pass Filter, 2300-2500 MHz 2300 2500 DC-1800 20 2800-6000 20 Band Pass Microstrip Conn 50
ZFBP13-75+ H16 Connectorized Band Pass Filter, 12.3-13.8 MHz 12.3 13.8 10.6 20 16 20 Band Pass Lumped LC Conn 75
ZVBP-3R25G-S+ YM3241 Connectorized Band Pass Filter, 3000-3500 MHz 3000 3500 DC – 2850 16 3650 – 7800 16 Band Pass Cavity Conn 50
ZVBP-5G-S+ YL3242 Connectorized Band Pass Filter, 4700-5300 MHz 4700 5300 DC – 4500 17 5500 – 11500 17 Band Pass Cavity Conn 50
ZVBP-9R6G-S+ UA2888 Connectorized Band Pass Filter, 9550-9650 MHz 9550 9650 DC-9300 30 9900-20400 33 Band Pass Cavity Conn 50
ZVBP-10R5G-S+ PV2184 Connectorized Band Pass Filter, 9750-11250 MHz 9750 11250 DC-5950 35 15100-18000 35 Band Pass Cavity Conn 50
ZVBP-10R7G-S+ UY3145 Connectorized Band Pass Filter, 10450-10950 MHz 10450 10950 DC-9300 66 12300-20000 67 Band Pass Cavity Conn 50
ZVBP-11G3-S+ PU2164 Connectorized Band Pass Filter, 11200-11400 MHz 11200 11400 DC-11030 35 11580-20000 35 Band Pass Cavity Conn 50
ZVBP-11R175G-S+ WN3325 Connectorized Band Pass Filter, 10575-11775 MHz 10575 11775 DC – 9630 38 13925 – 26500 64 Band Pass Cavity Conn 50
ZVBP-11R375G-S+ WJ3318 Connectorized Band Pass Filter, 11125-11625 MHz 11125 11625 DC-10250 62 12500-20000 58 Band Pass Cavity Conn 50
ZVBP-11R7G-S+ UG2852 Connectorized Band Pass Filter, 10700-12750 MHz 10700 12750 DC-10200 54 13200-20000 46 Band Pass Cavity Conn 50
ZVBP-13R1G-S+ UH2851 Connectorized Band Pass Filter, 11700-14500 MHz 11700 14500 DC-11000 56 15000-22000 42 Band Pass Cavity Conn 50
ZVBP-16R3G-S+ WY3407 Connectorized Band Pass Filter, 15900-16700 MHz 15900 16700 DC – 14700 58 17400 – 28000 39 Band Pass Cavity Conn 50
ZVBP-18R7G-S+ ZY3595 Connectorized Band Pass Filter, 18200-19200 MHz 18200 19200 DC – 17200 44 20200 – 40000 44 Band Pass Cavity Conn 50
ZVBP-323-S+ ZQ3557 Connectorized Band Pass Filter, 300-346 MHz 300 346 DC-253 52 393-1500 90 Band Pass Cavity Conn 50
ZVBP-435-S+ ZJ3545 Connectorized Band Pass Filter, 425-445 MHz 425 445 DC-417 26 453-1750 26 Band Pass Cavity Conn 50
ZVBP-778-S+ ZK3546 Connectorized Band Pass Filter, 773-783 MHz 773 783 DC-750 30 806-3300 31 Band Pass Cavity Conn 50
ZVBP-909-S+ KT1510 Connectorized Band Pass Filter, 902-915 MHz 902 915 10-895 20 925-2300 20 Band Pass Cavity Conn 50
ZVBP-909A-S+ TZ2959 Connectorized Band Pass Filter, 902-915 MHz 902 915 DC-895 27 923-2300 35 Band Pass Cavity Conn 50
ZVBP-1176R45-S+ UF2459 Connectorized Band Pass Filter, 1151.45-1201.45 MHz 1151.45 1201.45 DC-1076 69 1276-2500 76 Band Pass Cavity Conn 50
ZVBP-1227R6-S+ UF2459 Connectorized Band Pass Filter, 1202.6-1252.6 MHz 1202.6 1252.6 DC-1127 67 1327-2500 74 Band Pass Cavity Conn 50
ZVBP-1420-N+ SJ2566 Connectorized Band Pass Filter, 1415-1425 MHz 1415 1425 DC-1370 81 1470-3000 79 Band Pass Cavity Conn 50
ZVBP-1537-S+ ZM3307 Connectorized Band Pass Filter, 1533.4-1541.4 MHz 1533.4 1541.4 DC-1530.5 39 1544-3750 38 Band Pass Cavity Conn 50
ZVBP-1575R42-S+ UF2459 Connectorized Band Pass Filter, 1550.42-1600.42 MHz 1550.42 1600.42 DC-1475 68 1675-3000 77 Band Pass Cavity Conn 50
ZVBP-2072R5-S+ QT2302 Connectorized Band Pass Filter, 2030-2115 MHz 2030 2115 DC-1930 48 2220-6000 49 Band Pass Cavity Conn 50
ZVBP-2100-S+ UD2969 Connectorized Band Pass Filter, 2085-2115 MHz 2085 2115 DC-2073 26 2127-5750 26 Band Pass Cavity Conn 50
ZVBP-2300A-S+ QJ2293 Connectorized Band Pass Filter, 2200-2400 MHz 2200 2400 DC-2000 30 2550-8050 30 Band Pass Cavity Conn 50
ZVBP-2400-S+ QT2302 Connectorized Band Pass Filter, 2375-2425 MHz 2375 2425 DC-2250 35 2550-6000 35 Band Pass Cavity Conn 50
ZVBP-2450-S+ QT2302 Connectorized Band Pass Filter, 2400-2500 MHz 2400 2500 2120-2260 40 2635-2780 40 Band Pass Cavity Conn 50
ZVBP-2450A-S+ TU2841 Connectorized Band Pass Filter, 2400-2500 MHz 2400 2500 DC-2050 57 2850-10000 65 Band Pass Cavity Conn 50
ZVBP-2780-S+ YC3392 Connectorized Band Pass Filter, 2700-2860 MHz 2700 2860 DC – 2655 43 2900 – 6000 46 Band Pass Cavity Conn 50
ZVBP-2940-S+ YA3390 Connectorized Band Pass Filter, 2860-3020 MHz 2860 3020 DC – 2815 43 3060 – 6000 46 Band Pass Cavity Conn 50
ZVBP-3100-S+ WZ3389 Connectorized Band Pass Filter, 3020-3180 MHz 3020 3180 DC – 2975 44 3220 – 7000 44 Band Pass Cavity Conn 50
ZVBP-3100A-S+ YK3431 Connectorized Band Pass Filter, 3020-3180 MHz 3020 3180 DC – 2960 39 3198 – 6500 39 Band Pass Cavity Conn 50
ZVBP-3260-S+ WZ3389 Connectorized Band Pass Filter, 3180-3340 MHz 3180 3340 DC – 3135 44 3380 – 7000 46 Band Pass Cavity Conn 50
ZVBP-3300-S+ YB3391 Connectorized Band Pass Filter, 3100-3500 MHz 3100 3500 DC – 3050 69 3550 – 8000 70 Band Pass Cavity Conn 50
ZVBP-3420-S+ YA3390 Connectorized Band Pass Filter, 3340-3500 MHz 3340 3500 DC – 3295 43 3540 – 6000 47 Band Pass Cavity Conn 50
ZVBP-3875-S+ QZ2439 Connectorized Band Pass Filter, 3845-3905 MHz 3845 3905 DC-3785 35 3970-8500 35 Band Pass Cavity Conn 50
ZVBP-4000-S+ RW2359 Connectorized Band Pass Filter, 3997-4003 MHz 3997 4003 DC – 3800 70 4200 – 6000 70 Band Pass Cavity Conn 50
ZVBP-4300-S+ ME1656 Connectorized Band Pass Filter, 4250-4350 MHz 4250 4350 DC-4140 20 4480-8000 20 Band Pass Cavity Conn 50
ZVBP-4450-S+ WH3317 Connectorized Band Pass Filter, 4050-4850 MHz 4050 4850 DC – 2900 57 5700 – 15000 61 Band Pass Cavity Conn 50
ZVBP-4810-S+ ME1656 Connectorized Band Pass Filter, 4750-4870 MHz 4750 4870 DC-4600 20 5020-8250 20 Band Pass Cavity Conn 50
ZVBP-4900-S+ ME1656 Connectorized Band Pass Filter, 4840-4960 MHz 4840 4960 DC-4670 20 5100-9000 20 Band Pass Cavity Conn 50
ZVBP-5310-S+ ME1656 Connectorized Band Pass Filter, 5250-5370 MHz 5250 5370 DC-5080 20 5530-8250 20 Band Pass Cavity Conn 50
ZVBP-5800-S+ RD2472 Connectorized Band Pass Filter, 5725-5875 MHz 5725 5875 DC-5200 35 6400-14000 35 Band Pass Cavity Conn 50
ZVBP-6500-S+ WM3323 Connectorized Band Pass Filter, 6300-6700 MHz 6300 6700 DC-4000 65 9000-16000 80 Band Pass Cavity Conn 50
ZVBP-7100-S+ SK2596 Connectorized Band Pass Filter, 7025-7175 MHz 7025 7175 DC-6990 36 7224-14000 35 Band Pass Cavity Conn 50
ZVBP-7558R7-S+ WE3301 Connectorized Band Pass Filter, 7517.5-7600 MHz 7517.5 7600 DC-6882 91 10600-15000 93 Band Pass Cavity Conn 50
ZVBP-7916R25-S+ ZK3546 Connectorized Band Pass Filter, 7682.5-8150 MHz 7682.5 8150 DC-7600 93 8230-15000 94 Band Pass Cavity Conn 50
ZVBP-8250-S+ PN2113 Connectorized Band Pass Filter, 8025-8475 MHz 8025 8475 DC-7650 20 8925-11000 20 Band Pass Cavity Conn 50
ZVBP-9500-S+ WB3291 Connectorized Band Pass Filter, 9495-9505 MHz 9495 9505 9400 63 9600 62 Band Pass Cavity Conn 50
ZVBP-9750-S+ WC3295 Connectorized Band Pass Filter, 9500-10000 MHz 9500 10000 DC-9250 54 10250-26500 50 Band Pass Cavity Conn 50
ZVBP-25875-K+ UH3126 Connectorized Band Pass Filter, 24250-27500 MHz 24250 27500 DC-23875 63 27875-50000 60 Band Pass Cavity Conn 50
ZVBP-27925-K1+ ZN3567 Connectorized Band Pass Filter, 27500-28350 MHz 27500 28350 DC-27325 60 28525-45000 57 Band Pass Cavity Conn 50
ZVBP-28000-K1+ ZP3566 Connectorized Band Pass Filter, 26500-29500 MHz 26500 29500 DC-25000 60 31000-46000 52 Band Pass Cavity Conn 50
ZVBP-38500-K+ UH3129 Connectorized Band Pass Filter, 37000-40000 MHz 37000 40000 DC-36500 84 40500-55000 79 Band Pass Cavity Conn 50
ZVBP-38500-K1+ ZS3573 Connectorized Band Pass Filter, 37000-40000 MHz 37000 40000 DC-36500 84 40500-55000 79 Band Pass Cavity Conn 50
ZVBP-40600-K1+ ZT3578 Connectorized Band Pass Filter, 37700-54300 MHz 37700 43500 DC-36600 88 44600-55000 79 Band Pass Cavity Conn 50
ZVBP-K22R5G+ YJ3430 Connectorized Band Pass Filter, 22000-23000 MHz 22000 23000 DC – 21400 25 23600 – 40000 23 Band Pass Cavity Conn 50
ZVBP-K26R25G+ VB3048 Connectorized Band Pass Filter, 25375-27125 MHz 25375 27125 DC-24935 63 27565-37000 63 Band Pass Cavity Conn 50
ZVBP-K27G+ ZL3532 Connectorized Band Pass Filter, 24000-30000 MHz 24000 30000 DC-17000 54 37000-50000 55 Band Pass Cavity Conn 50
ZVBP-K34R5G+ WL3322 Connectorized Band Pass Filter, 33000-36000 MHz 33000 36000 DC-32400 61 36400-40000 36 Band Pass Cavity Conn 50
ZVBP-V40R5G+ ZL3533 Connectorized Band Pass Filter, 37000-44000 MHz 37000 44000 DC-30000 75 51000-59000 47 Band Pass Cavity Conn 50
ZVBP-V48R5G+ ZL3534 Connectorized Band Pass Filter, 47000-50000 MHz 47000 50000 DC-40000 76 57000-65000 48 Band Pass Cavity Conn 50
ZX75-12-S+ HY1238 Connectorized Band Pass Filter, 9-15 MHz 9 15 7.5 20 18 20 Band Pass Lumped LC Conn 50
ZX75BP-75-S+ KE1467 Connectorized Band Pass Filter, 60-90 MHz 60 90 DC-37 20 122-3500 30 Band Pass Lumped LC Conn 50
ZX75BP-98-S+ KE1467 Connectorized Band Pass Filter, 75-131 MHz 75 131 DC-55 20 170-3500 30 Band Pass Lumped LC Conn 50
ZX75BP-130-S+ KE1467 Connectorized Band Pass Filter, 95-180 MHz 95 180 DC-58 20 260-4000 30 Band Pass Lumped LC Conn 50
ZX75BP-135-S+ KE1467 Connectorized Band Pass Filter, 120-150 MHz 120 150 DC-85 20 210-3500 30 Band Pass Lumped LC Conn 50
ZX75BP-140-S+ KE1467 Connectorized Band Pass Filter, 130-150 MHz 130 150 DC-100 29 180-6000 27 Band Pass Lumped LC Conn 50
ZX75BP-160-S+ KE1467 Connectorized Band Pass Filter, 120-210 MHz 120 210 DC-85 20 280-4000 30 Band Pass Lumped LC Conn 50
ZX75BP-188-S+ KE1467 Connectorized Band Pass Filter, 138-238 MHz 138 238 DC-96 20 315-3500 30 Band Pass Lumped LC Conn 50
ZX75BP-204-S+ KE1467 Connectorized Band Pass Filter, 175-237 MHz 175 237 DC-90 60 2500-3500 30 Band Pass Lumped LC Conn 50
ZX75BP-253-S+ KE1467 Connectorized Band Pass Filter, 186-340 MHz 186 340 DC-140 20 440-3000 20 Band Pass Lumped LC Conn 50
ZX75BP-263-S+ KE1467 Connectorized Band Pass Filter, 230-297 MHz 230 297 DC-140 20 360-4000 30 Band Pass Lumped LC Conn 50
ZX75BP-400-S+ KE1467 Connectorized Band Pass Filter, 292-490 MHz 292 490 DC-230 20 620-4000 30 Band Pass Lumped LC Conn 50
ZX75BP-440-S+ KE1467 Connectorized Band Pass Filter, 410-470 MHz 410 470 DC-320 20 650-2500 25 Band Pass Lumped LC Conn 50
ZX75BP-750-S+ HY1239 Connectorized Band Pass Filter, 600-900 MHz 600 900 DC-500 30 1000-6000 30 Band Pass Lumped LC Conn 50
ZX75BP-770-S+ HY1238 Connectorized Band Pass Filter, 760-780 MHz 760 780 DC-705 20 840-1700 20 Band Pass Ceramic Resonator Conn 50
ZX75BP-840-S+ HY1238 Connectorized Band Pass Filter, 790-890 MHz 790 890 DC-665 20 1070-1650 20 Band Pass Ceramic Resonator Conn 50
ZX75BP-893-S+ HY1238 Connectorized Band Pass Filter, 870-915 MHz 870 915 DC-750 20 1050-1800 20 Band Pass Ceramic Resonator Conn 50
ZX75BP-915-S+ HY1238 Connectorized Band Pass Filter, 902.5-927.5 MHz 902.5 927.5 DC-830 20 1005-1900 20 Band Pass Ceramic Resonator Conn 50
ZX75BP-942-S+ HY1238 Connectorized Band Pass Filter, 875-1010 MHz 875 1010 750 20 1160 20 Band Pass Ceramic Resonator Conn 50
ZX75BP-960-S+ HY1239 Connectorized Band Pass Filter, 30-1890 MHz 30 1890 DC-25 50 2450-8000 50 Band Pass Lumped LC Conn 50
ZX75BP-1034-S+ HY1238 Connectorized Band Pass Filter, 978-1090 MHz 978 1090 DC-790 20 1400-2000 20 Band Pass Ceramic Resonator Conn 50
ZX75BP-1062-S+ HY1238 Connectorized Band Pass Filter, 960-1164 MHz 960 1164 DC-735 20 1620-2000 20 Band Pass Ceramic Resonator Conn 50
ZX75BP-1090-S+ HY1238 Connectorized Band Pass Filter, 1060-1120 MHz 1060 1120 DC-955 20 1255-2200 20 Band Pass Ceramic Resonator Conn 50
ZX75BP-1100-S+ KE1467 Connectorized Band Pass Filter, 1000-1200 MHz 1000 1200 DC-25 20 1500-1900 20 Band Pass Lumped LC Conn 50
ZX75BP-1135-S+ HY1239 Connectorized Band Pass Filter, 900-1370 MHz 900 1370 DC-500 45 2000-5600 40 Band Pass Lumped LC Conn 50
ZX75BP-1205-S+ HY1238 Connectorized Band Pass Filter, 1155-1255 MHz 1155 1255 DC-1026 20 1435-4500 20 Band Pass Ceramic Resonator Conn 50
ZX75BP-1250-S+ HY1238 Connectorized Band Pass Filter, 1215-1285 MHz 1215 1285 DC-1055 20 1510-2500 20 Band Pass Ceramic Resonator Conn 50
ZX75BP-1260-S+ HY1238 Connectorized Band Pass Filter, 1200-1320 MHz 1200 1320 DC-1025 20 1640-2500 20 Band Pass Ceramic Resonator Conn 50
ZX75BP-1280-S+ HY1238 Connectorized Band Pass Filter, 1170-1390 MHz 1170 1390 DC-950 20 1850-2550 20 Band Pass Ceramic Resonator Conn 50
ZX75BP-1307-S+ HY1238 Connectorized Band Pass Filter, 1215-1400 MHz 1215 1400 DC-1000 20 1820-3000 20 Band Pass Ceramic Resonator Conn 50
ZX75BP-1450-S+ HY1238 Connectorized Band Pass Filter, 1320-1580 MHz 1320 1580 DC-1100 46 2000-2500 54 Band Pass Ceramic Resonator Conn 50
ZX75BP-1500-S+ KE1467 Connectorized Band Pass Filter, 1350-1650 MHz 1350 1650 DC-85 20 2030-2800 20 Band Pass Lumped LC Conn 50
ZX75BP-1940-S+ KE1467 Connectorized Band Pass Filter, 1710-2170 MHz 1710 2170 DC-150 20 2800-4000 20 Band Pass Lumped LC Conn 50
ZX75BP-2150-S+ KE1467 Connectorized Band Pass Filter, 2050-2250 MHz 2050 2250 DC-600 20 2720-4500 20 Band Pass Lumped LC Conn 50
ZX75BP-2250-S+ HY1238 Connectorized Band Pass Filter, 2000-2500 MHz 2000 2500 DC-1630 29 2950-6000 25 Band Pass Ceramic Resonator Conn 50
ZX75BP-4700-S+ KD1465 Connectorized Band Pass Filter, 4400-5000 MHz 4400 5000 DC-2800 40 6300-8000 30 Band Pass Ceramic Resonator Conn 50
ZX75BP-A70-S+ HY1239 Connectorized Band Pass Filter, 62-78 MHz 62 78 11-29 20 110-3300 20 Band Pass Lumped LC Conn 50
ZX75BP-A1060-S+ HY1238 Connectorized Band Pass Filter, 1015-1105 MHz 1015 1105 DC-880 25 1350-4000 30 Band Pass Ceramic Resonator Conn 50
ZX75BP-A1230-S+ HY1238 Connectorized Band Pass Filter, 1160-1300 MHz 1160 1300 DC-950 30 1670-3500 20 Band Pass Ceramic Resonator Conn 50
ZX75BP-B70-S+ HY1239 Connectorized Band Pass Filter, 52-88 MHz 52 88 11-29 20 118-200 20 Band Pass Lumped LC Conn 50
ZX75BP-B1230-S+ HY1238 Connectorized Band Pass Filter, 1120-1340 MHz 1120 1340 DC-940 25 1750-3500 20 Band Pass Ceramic Resonator Conn 50
ZX75BP-B1280-S+ HY1238 Connectorized Band Pass Filter, 1160-1400 MHz 1160 1400 DC-955 40 1700-2200 40 Band Pass Ceramic Resonator Conn 50
ZXBF-K24+ UK3042 Reflectionless Band Pass Filter, 19500-20500 MHz 19500 20500 DC-10000 51 30000-32000 42 Band Pass Reflectionless Conn 50
ZXBF-K163+ UK3042 Reflectionless Band Pass Filter, 15500-16500 MHz 15500 16500 DC-8000 52 24000-30000 52 Band Pass Reflectionless Conn 50
ZXBF-K183+ UK3042 Reflectionless Band Pass Filter, 17500-18500 MHz 17500 18500 DC-9000 51 27000-32000 47 Band Pass Reflectionless Conn 50
ZXBF-K282+ UK3042 Reflectionless Band Pass Filter, 2350-3150 MHz 2350 3150 DC-1810 15 3800-20000 15 Band Pass Reflectionless Conn 50
