Description

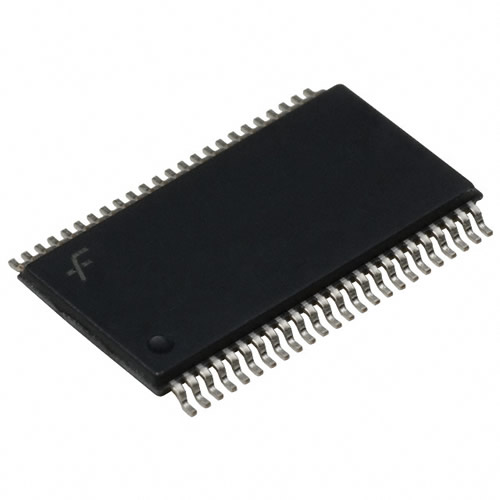

Fairchild Semiconductor 74LCX16373MTDX Latch Transparent 3-State 16-Channel D-Type 48-Pin TSSOP W T/R
The 74LCX16373 Series contains sixteen non-inverting latches with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled.
The flip-flops appear transparent to the data when the Latch Enable (LE) is HIGH. When LE is LOW, the data that meets the setup time is latched.
The LCX16373 is designed for low voltage (2.5V or 3.3V) VCC applications with capability of interfacing to a 5V signal environment.
The LCX16373 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
Features:
5 V tolerant inputs
2.3 V-3.6 V VCC specifications provided
5.4 ns tpd max (VCC = 3.3 V), 20 µA ICC max
Power down high impedance inputs and outputs
±24 mA output drive (VCC = 3.0 V)
Implements patented noise/EMI reduction circuitry
Latch-up performance exceeds 500 mA
ESD performance Human body model 2000 V Machine model 200 V
Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA)
Applications:
Automation
Broadband Access
Broadband Modem
Broadcast & Studio
Building & Home Control
Camcorder
Manufacturer:Fairchild Semiconductor
Datasheet:Fairchild/74LCX16373.pdf
