Description

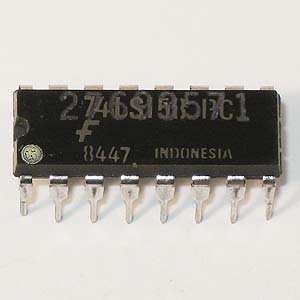

Fairchild Semiconductor Corporation – FSC 74LS158PC LOGIC MUX, QUAD, 2-INPUT, LS-TTL, 16 Pin, Plastic, DIP
SPECIFICATIONS
Part #: 74LS158PC
Part Category: Logic ICs
Manufacturer: Fairchild Semiconductor
Description: LS SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDIP16
Mfr Package Description PLASTIC, DIP-16
Status Discontinued
Logic IC Type MULTIPLEXER
Sub Category Multiplexer/Demultiplexers
Family LS
JESD-30 Code R-PDIP-T16
JESD-609 Code e0
Number of Functions 4
Number of Inputs 2
Number of Outputs 1
These data selectors/multiplexers contain inverters and drivers to supply full on-chip data selection to the four output gates. A separate strobe input is provided. A 4-bit word is selected from one of two sources and is routed to the four outputs. The 74LS158PC presents inverted data to minimize propagation delay time.
Features:
Buffered inputs and outputs
Typical Propagation Time: 7 ns
Typical Power Dissipation: 24 mW
Applications:
Expand any data input point
Multiplex dual data buses
Generate four functions of two variables
Source programmable counters
16 pin DIP. Manufactured by Fairchild.
Manufacturer:Fairchild Semiconductor
Datasheet:Others/FAIRS28209-1.pdf
