Description

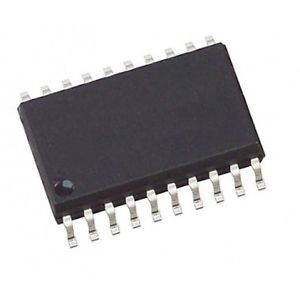

FSC Fairchild 74LS373DW IC Octal D-Type Edge Triggered Flip-Flops with 3-State Outputs
Specifications
Product Category: Latches
Number of Circuits: 8 Circuit
Logic Type: Transparent D-Type Latch
Logic Family: 74LS
Polarity: Non-Inverting
Number of Output Lines: 1 Line
High Level Output Current: – 2.6 mA
Low Level Output Current: 32 mA
Propagation Delay Time: 18 ns at 5 V
Supply Voltage – Max: 5.25 V
Supply Voltage – Min: 4.75 V
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: 0 C
Package / Case: SOIC-20
Packaging: Tube
Brand: Texas Instruments
Function: Octal D-Type Latch
Height: 2.35 mm
Length: 12.8 mm
Mounting Style: SMD/SMT
Number of Channels: 8 Channels
Number of Input Lines: 3 Line
Operating Supply Current: 40 mA
Operating Supply Voltage: 4.75 V to 5.25 V
Output Type: 3-State
Reset Type: No Reset
Series: SN74LS373
Factory Pack Quantity: 25
Type: D-Type
Width: 7.52 mm
Unit Weight: 0.017662 oz
Manufacturer Part Number: 74LS373D
Fairchild Semiconductor
