Description

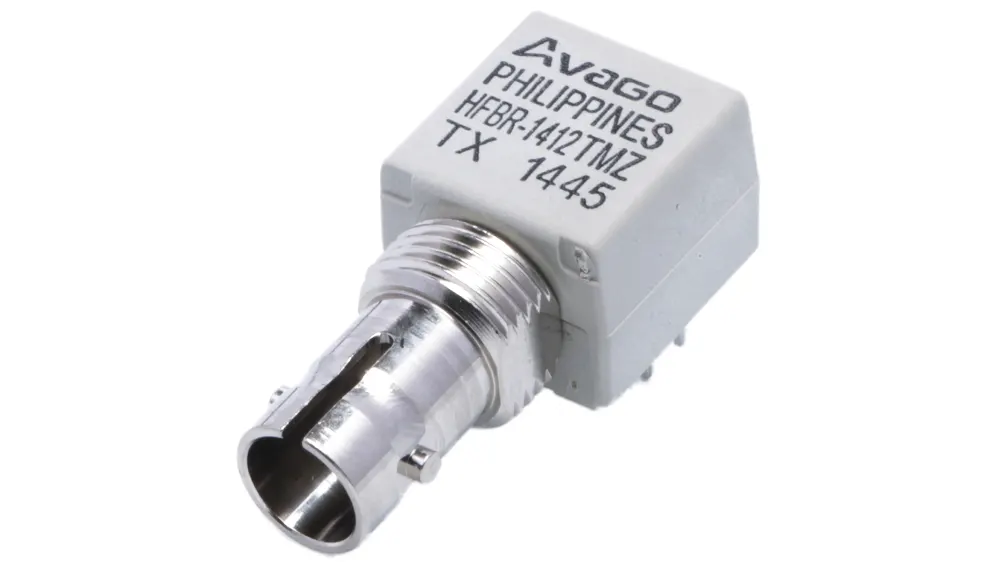

HFBR-1412TMZ Broadcom / Avago Fiber Fiber Optic Transmitters, Receivers, Transceivers Low Cost Std 820nm 1.7V 100mA
Specifications
Manufacturer: Broadcom Limited
Product Category: Fiber Optic Transmitters, Receivers, Transceivers
RoHS
Product: Transmitters
Data Rate: 5 MBd
Wavelength: 820 nm
Fiber Type: Multimode
Maximum Output Current: 25 mA
Operating Supply Voltage: 5 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Packaging: Tube
Function: High performance fiber optic communication links for information systems and industrial applications.
Height: 10.2 mm
Length: 27.2 mm
Width: 12.7 mm
Brand: Broadcom / Avago
CNHTS: 8541409000
Fall Time: 4 ns
HTS Code: 8517620090
MXHTS: 85414001
Product Type: Fiber Optic Transmitters, Receivers, Transceivers
Rise Time: 4 ns
Factory Pack Quantity: 60
Subcategory: Fiber Optic
TARIC: 8541401000
Unit Weight: 0.203213 oz
Manufacturer Part Number: HFBR-1412TMZ
Manufacturer: Avago Technologies
