HP HFBR-4503 Fiber Optic Connector, Plastic Optical, 1mm, Plastic Body

HP HFBR-4503 Fiber Optic Connector, Plastic Optical, 1mm, Plastic Body

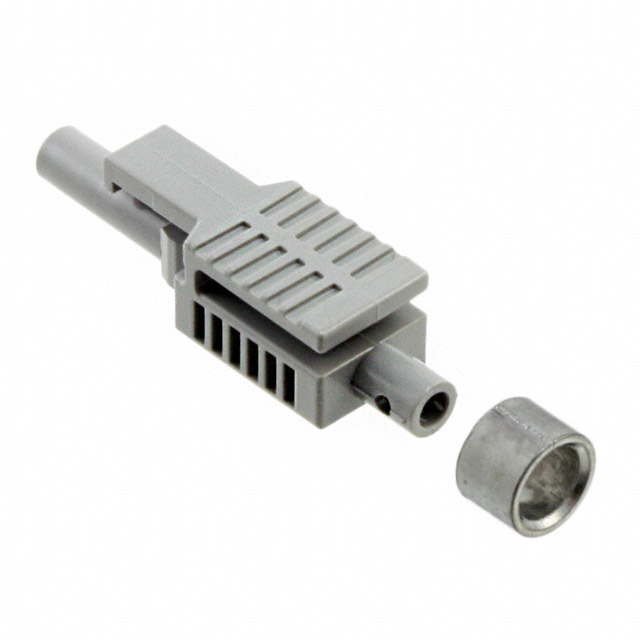

Hp – Avago Hfbr-4503 Plastic Fiber Connector – Gray Simplex Latching Connector With Crimp Ring

ENQUIRY!
SKU: HFBR-4503 Categories: , Tag: Brand:

Description

HP HFBR-4503 Avago Fiber Optic Connectors Versatile Link Latching Grey for 1.0mm POF, Latching, Grey for 2.2mm OD Cable

The HFBR-4503Z is a grey simplex latching plastic Fibre Connector with crimp ring. The connector provides a snap-in action when mated to Versatile Link components. A simplex connector is colour-coded to facilitate identification of transmitter and receiver connections. If the POF cable/connector will be used at extreme operating temperatures or experience frequent and wide temperature cycling effects, the cable/connector attachment can be strengthened with an RTV adhesive. The connectors are made of a flame retardant VALOX UL94V-0 material. It is designed for rugged applications requiring a greater retention force of 80 Newton (18lbs) than provided by a simplex non­latching connector. Misalignment of an inserted latching connector into either module will not result in a positive latch. The con­nector is released by depressing the rear section of the connector lever and then pulling the connector assem­bly away from the module housing.

The HFBR-4503Z is a grey simplex latching plastic Fibre Connector with crimp ring. The connector provides a snap-in action when mated to Versatile Link components. A simplex connector is colour-coded to facilitate identification of transmitter and receiver connections. If the POF cable/connector will be used at extreme operating temperatures or experience frequent and wide temperature cycling effects, the cable/connector attachment can be strengthened with an RTV adhesive. The connectors are made of a flame retardant VALOX UL94V-0 material. It is designed for rugged applications requiring a greater retention force of 80 Newton (18lbs) than provided by a simplex non­latching connector. Misalignment of an inserted latching connector into either module will not result in a positive latch. The con­nector is released by depressing the rear section of the connector lever and then pulling the connector assem­bly away from the module housing.
  • Compatible with Avago Versatile Link family of connectors and fibre optic components
  • 1mm Diameter plastic optical fibre (POF) in two grades

Applications

Fibre Optics; Industrial; Automation & Process Control; Communications & Networking; Computers & Computer Peripherals; Imaging, Video & Vision; Medical; Lighting

Manufacturer:Avago Technologies
Datasheet:AV02-1508EN_DS_HFBR-RxxYYYZ_2016-02-18.pdf

Additional information

Weight 0.01 lbs
