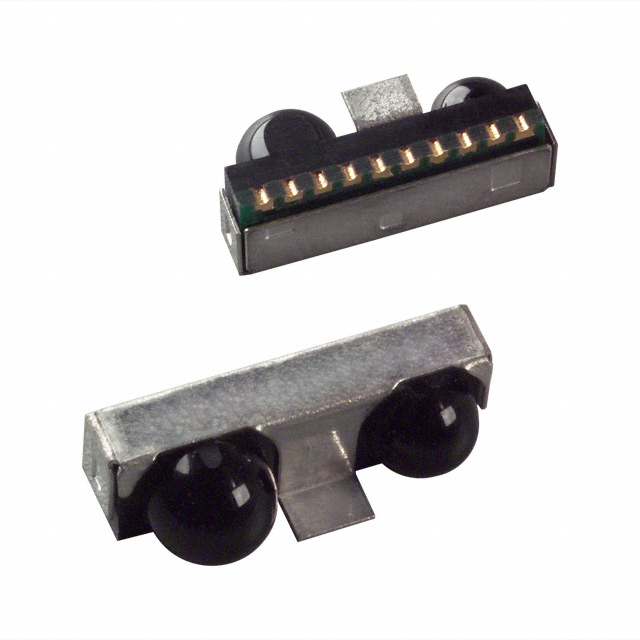

Avago HSDL-3602 IrDA® Data 1.1 Compliant 4 Mb/s Infrared Transceiver
Description The is a low-height infrared transceiver module that provides interface between logic and IR signals for through-air, serial, half-duplex IR data link. The module is compliant to IrDA Data Physical Layer Specifications 1.1 and IEC825-Class 1 Eye Safety Standard.
Specifications
^Manufacturer: Avago
^Product Category: Infrared Transceivers
^RoHS: RoHS Compliant Details
^Brand: Broadcom / Avago
^Wavelength: 875 nm, 880 nm
^Transmission Distance: 1.5 m
^Radiant Intensity: 250 mW/sr
^Half Intensity Angle Degrees: 30 deg
^Pulse Width: 1.6 us, 4 us
^If – Forward Current: 165 mA
^Operating Supply Voltage: 2.7 V to 3.6 V
^Maximum Operating Temperature: + 70 C
^Minimum Operating Temperature: – 20 C
^Dimensions: 12.2 mm x 4.9 mm x 4 mm
^Packaging: Reel
^Data Transmission Rate: 4 Mbps
^Fall Time: 40 ns, 25 ns
^Rise Time: 40 ns, 25 ns
^Factory Pack Quantity: 400
Manufacturer Part Number: HSDL-3602-007
Manufacturer: Avago Technologies
