Description

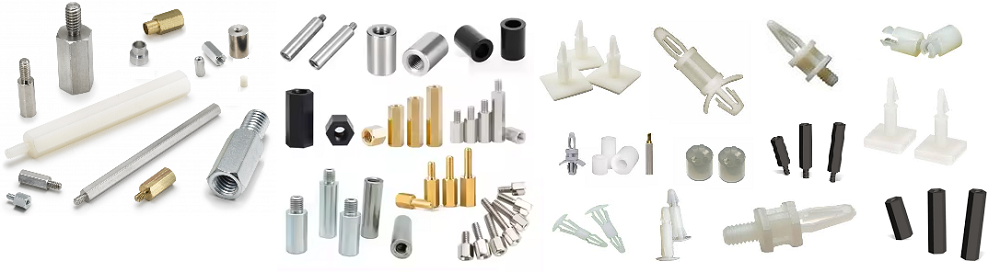

Keystone’s Surface-Mount Threaded Standoffs and Spacers
Keystone’s SMT standoffs are supplied on tape and reel, with Kapton tape on the top surface, allowing for placement on the circuit board using standard vacuum pick-and-place equipment. This method ensures controlled attachment to the PCB, eliminating the risk of damage associated with improper installation of traditional swaging or broaching spacers.
These standoffs are ideal for automated assembly applications, offering faster assembly and reduced scrap. They provide a reliable solution for mechanical PCB mounting issues, eliminating the need for hex nuts or standoffs. Available in a variety of thread sizes and lengths, Keystone’s threaded standoffs are a versatile choice for many PCB applications.
“Zero” Height Threaded Inserts
Quick & Easy way to add threads to a PCB
“Zero” height threaded inserts sit just 0.012 [.30] above the board for an easy method of adding threads to PCB. Can be installed using same mounting holes and equipment as SMT Standoffs.
Threaded Standoffs Clear Hole Spacers
.jpg)

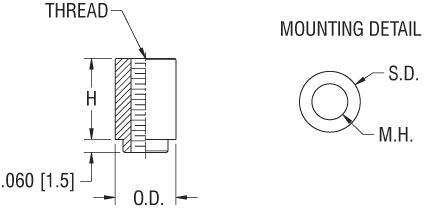

SMT Metric Threaded Standoffs
For Printed Circuit Board Applications
Supplied on tape and reel for automated assembly applications.
- Ideal for Automated Installations
- Faster Assembly
- Reduced Scrap / handling
- Minimize PCB damage vs tradtional swaging
SMT Standoffs & Spacers are supplied on tape and reel with Kapton tape added to the top surface. This allows for the standoff to be placed on the circuit board using standard vacuum pick and place equipment. Attachment of the standoff to the PCB is completely controlled. Costly scrapping of populated board due to improper installation of swage or broaching spacer is eliminated.
.jpg)
“Zero” Height Threaded Inserts
Quick & Easy way to add threads to a PCB
“Zero” height threaded inserts sit just 0.30 [0.012″] above the board for an easy method of adding threads to PCB. Can be installed using same mounting holes and equipment as SMT Standoffs.
SMT Metric Threaded Standoffs
For Printed Circuit Board Applications
Supplied on tape and reel for automated assembly applications.
- Ideal for Automated Installations
- Faster Assembly
- Reduced Scrap / handling
- Minimize PCB damage vs tradtional swaging
SMT Standoffs & Spacers are supplied on tape and reel with Kapton tape added to the top surface. This allows for the standoff to be placed on the circuit board using standard vacuum pick and place equipment. Attachment of the standoff to the PCB is completely controlled. Costly scrapping of populated board due to improper installation of swage or broaching spacer is eliminated.
“Zero” Height Threaded Inserts
Quick & Easy way to add threads to a PCB
“Zero” height threaded inserts sit just 0.30 [0.012″] above the board for an easy method of adding threads to PCB. Can be installed using same mounting holes and equipment as SMT Standoffs.
