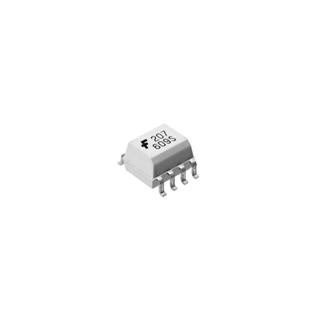

MOC207M Fairchild Transistor Output Optocouplers 8-Pin SOIC

Fsc – Fsc Moc207-M IC Optocoupler; No. of Channels:1; Optocoupler Output Type:Transistor; Package/Case:8-DIP; Leaded Process Compatible:No; Mounting Type:Through Hole; Peak Reflow Compatible (260 C):No; Propagation Delay:7.55s; Voltage Rating:70V

Description

MOC207M Fairchild Semiconductor | FSC MOC207-M Single-Channel Phototransistor Output Optocoupler DC-IN 1-CH Trans W/Base DC-OUT 8-Pin SOIC

These devices consist of a gallium arsenide infrared emitting diode optically coupled to a monolithic silicon phototransistor detector, in a surface mountable, small outline, plastic package. They are ideally suited for high-density applications, and eliminate the need for through-the-board mounting.

Features

  • “Closely Matched Current Transfer Ratios
  • Minimum BVCEOof 70 V Guaranteed
    • MOC205M, MOC206M, MOC207M
  • Minimum BVCEOof 30 V Guaranteed
    • MOC211M, MOC212M, MOC213M, MOC216M,MOC217M
  • Low LED Input Current Required for Easier Logic Interfacing
  • MOC216M, MOC217M
  • Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050″ Lead Spacing
  • Safety and Regulatory Approvals:
    • UL1577, 2,500 VACRMS for 1 Minute
    • DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage”

Specifications
Manufacturer: Fairchild Semiconductor
Product Category: Transistor Output Optocouplers
RoHS: RoHS Compliant
Package / Case: SOIC-8 Narrow
Output Type: NPN Phototransistor
Number of Channels: 1 Channel
If – Forward Current: 60 mA
Maximum Collector Emitter Voltage: 70 V
Maximum Collector Current: 150 mA
Isolation Voltage: 2500 Vrms
Maximum Collector Emitter Saturation Voltage: 0.4 V
Vf – Forward Voltage: 1.5 V
Vr – Reverse Voltage: 6 V
Pd – Power Dissipation: 250 mW
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: – 40 C
Packaging: Bulk
Brand: Fairchild Semiconductor
Configuration: 1 Channel
Current Transfer Ratio: 200 %
Factory Pack Quantity: 3000
Part # Aliases: MOC207M_NL
Unit Weight: 0.008889 oz
Manufacturer Part Number: MOC207-M
Manufacturer: Fairchild Semiconductor
