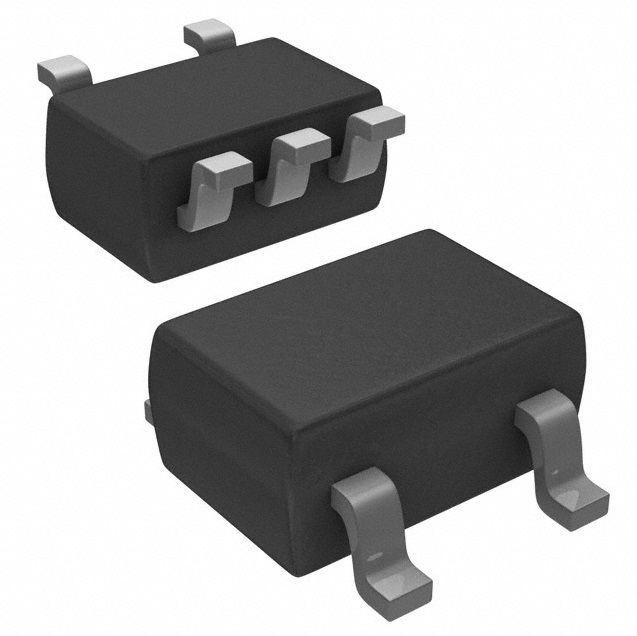

NC7SV126P5X ON Semiconductor / Fairchild Buffer, Non-Inverting 1 Element 1 Bit per Element 3-State Output 1-CH CMOS 900mV to 3.6V 5-Pin SC-70 T/R RoHS
The NC7SV126P5X is a TinyLogic ULP-A Buffer with 3-state output. ULP-A is ideal for applications that require extreme high speed, high drive and low power. This product is designed for a wide low-voltage operating range (0.9 to 3.6V VCC) and applications that require more drive and speed than the TinyLogic ULP series, but still offer best in class low power operation. The NC7SV126 is uniquely designed for optimized power and speed and is fabricated with an advanced CMOS technology to achieve high-speed operation while maintaining low CMOS power dissipation.
Specifications
Manufacturer:ON Semiconductor
Product Category:Buffers & Line Drivers
Number of Input Lines:1 Input
Number of Output Lines:1 Output
Polarity:Non-Inverting
High Level Output Current:- 24 mA
Low Level Output Current:24 mA
Quiescent Current:900 nA
Supply Voltage – Max:3.6 V
Supply Voltage – Min:0.9 V
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Mounting Style:SMD/SMT
Package / Case:SC-70-5
Packaging:Cut Tape
Packaging:Reel
Function:Buffer/Line Driver
Height:1 mm
Length:2 mm
Output Type:3-State
Series:NC7SV126
Technology:CMOS
Width:1.25 mm
Brand:ON Semiconductor / Fairchild
Logic Family:TinyLogic ULP
Logic Type:CMOS
Number of Channels:1 Channel
Supply Current – Max:0.9 uA
Input Signal Type:Single-Ended
Operating Supply Voltage:0.9 V to 3.6 V
Product Type:Buffers & Line Drivers
Propagation Delay Time:4.3 ns at 1.8 V, 2.8 ns at 2.5 V, 2.6 ns at 3.15 V
Factory Pack Quantity:3000
Subcategory:Logic ICs
Tradename:TinyLogic
Part # Aliases:NC7SV126P5X_NL
Unit Weight:0.000705 oz
Manufacturer: Fairchild Semiconductor
MFG Part #: NC7SV126P5X
