U. S. Toyo Fan Corporation has been serving the needs of the electronics industry since 1981. US Toyo AC & DC Cooling Fans and Blowers available to help meet the demands of today’s electronic cooling requirements. The product line includes industry standard sizes as well as special application fans, in addition to a comparable selection of related fan accessories.
U. S. Toyo Fan Corporation offers a wide range of AC and DC axial fans to meet the demands of today’s electronic cooling requirements.
On April 19, 2018 Desco Industries of Chino, California has acquired the assets of US Toyo Fan Corporation. US Toyo Fan now operates as a brand within Desco Industries. US Toyo Fan was established in 1981 in San Gabriel, California. The US Toyo Fan product line consists of AC and DC fans and blowers and related accessories, such as finger guards, filters, and fan cords. addition, where special fan requirements are needed, Desco works closely with customers to meet their thermal management requirements.
| Products: |
| |
- AC Fans
- DC Fans
- Special Application Fan
- Fan Mounting
|
|
|
| Applications AC Fans: |
|
|
|
|
|
|
 |
|
|
|
|
|
|
 |
|
|
|
|
|
|
 |
|
|
|
|
|
|
 |
|
|
|
|
|
 |

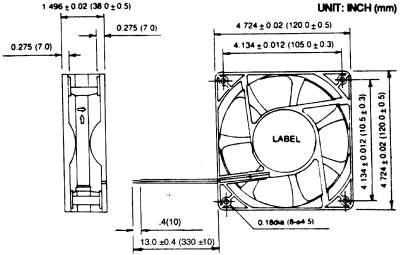

| Characteristics – USTF12038 Series : |
|
|
|
AC Fans
- USTF12038 Series
- Materials: Frame – Aluminum Alloy, Painted Black Finish
- Bearings – Sealed Ball
- Impeller – UL 94V-0 Plastic
- Weight: 20 oz. (500g)
- Termination: Terminals Standard (Lead Wires on request)
- Operating Temperature: -40o C to +70o C
- Insulation Resistance: 100,000 Ohms min. @ 500 VDC
- Dielectric Strength: 500 VAC for 1 min.
- Insulation: Class A
- Safety: Impedance Protected
- Safety Approvals: UL No. E106227
- CSA No. 073720
- VDE No. 16599
|
|
| Specifications – USTF12038 Series: |
|
|
|
| PART NUMBER |
VOLTS
|
WATTS
|
mAMPS
|
RPM
|
NOISE dB (A) @ 1M
|
CFM
|
| USTF120381155T |
115
|
14.0
|
210
|
2900
|
41
|
112
|
| USTF120381153T |
115
|
10.0
|
140
|
2600
|
37
|
98
|
| USTF120381152T |
115
|
7.0
|
100
|
1950
|
30
|
76
|
| USTF120381151T |
115
|
5.5
|
80
|
1450
|
28
|
54
|
| USTF120382305T |
230
|
14.0
|
110
|
2900
|
41
|
112
|
| USTF120382303T |
230
|
11.0
|
80
|
2600
|
37
|
98
|
| USTF120382302T |
230
|
7.5
|
60
|
1950
|
30
|
76
|
| USTF120382301T |
230
|
6.0
|
45
|
1450
|
28
|
54
|
|
|

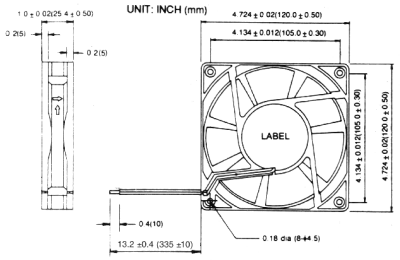

| Characteristics -USTF12025 Series : |
AC Fans
- USTF12025 Series
- Materials: Frame – Aluminum Alloy, Painted Black Finish
- Bearings – Sealed Ball
- Impeller – UL 94V-0 Plastic
- Weight: 13 oz. (360g)
- Termination: Terminals Standard (Lead Wires on request)
- Operating Temperature: -40o C to +70o C
- Insulation Resistance: 100,000 Ohms min. @ 500 VDC
- Dielectric Strength: 500 VAC for 1 min.
- Insulation: Class A
- Safety: Impedance Protected
- Safety Approvals: UL No. E106227
- CSA No. 073720
- VDE No. 16599
|
|
| Specifications – USTF12025 Series: |
| PART NUMBER |
VOLTS
|
WATTS
|
mAMPS
|
RPM
|
NOISE dB (A) @ 1M
|
CFM
|
| USTF120251153T |
115
|
11.0
|
136
|
3100
|
38
|
77
|
| USTF120251152T |
115
|
8.0
|
90
|
2300
|
30
|
57
|
| USTF120252303T |
230
|
10.0
|
68
|
2900
|
38
|
75
|
| USTF120252302T |
230
|
7.0
|
34
|
2200
|
30
|
56
|
|
|

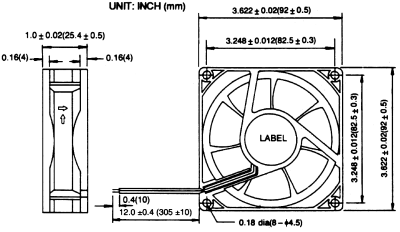

| Characteristics – USTF9225 Series : |
|
|
|
AC Fans
- USTF12025 Series
- Materials: Frame – Aluminum Alloy, Painted Black Finish
- Bearings – Sealed Ball
- Impeller – UL 94V-0 Plastic
- Weight: 10.5 oz. (300g)
- Termination: Terminals Standard (Lead Wires on request)
- Operating Temperature: -40o C to +70o C
- Insulation Resistance: 100,000 Ohms min. @ 500 VDC
- Dielectric Strength: 500 VAC for 1 min.
- Insulation: Class A
- Safety: Impedance Protected
- Safety Approvals: UL No. E106227
- CSA No. 073720
- VDE No. 16599
|
|
| Specifications – USTF9225 Series: |
|
|
|
| PART NUMBER |
VOLTS
|
WATTS
|
mAMPS
|
RPM
|
NOISE dB (A) @ 1M
|
CFM
|
| USTF92251152T |
115
|
6.0
|
74
|
2800
|
35
|
30
|
| USTF120251152T |
115
|
8.0
|
90
|
2300
|
30
|
57
|
| USTF92252303T |
230
|
9.0
|
68
|
3200
|
39
|
35
|
| USTF92252302T |
230
|
5.0
|
44
|
2600
|
35
|
30
|
|
|
| Characteristics : The U.S Toyo Fan product line offers a full range of axial fans, blowers, and thermal management products. Toyo fans and thermal products can be found worldwide, serving a wide range of industries and organizations. Highly efficient cooling and ventilation systems can be customized to fit the needs of virtually any business. |
Special Application Fan
- TF120RX Series AC / Ball Bearing Ultra Thin Fan
- The thinnest axial fan available – .787″ (20mm) thick
- High performance
- Low noise level
- Precision ball bearings provide long service life
- Durable die cast aluminum frame
- Choice of 115 VAC or 230 VAC
- Impedance protected
- U.L. recognized – File Number E75082
- CSA certified – File Number 48371M2
- TF120345 Series AC / Ball Bearing Dual Voltage Fan
- Dual Voltage operating capacity 115/230VAC
- Precision ball bearings provide long service life
- Durable die cast aluminum frame
- choice of three speeds to satisfy various applications
- Impedance protected
- U.L. recognized – File Number E75082
- CSA certified – File Number 48371M2
- TF92RX Series AC / Ball Bearing Ultra Thin Fan
- The thinnest axial fan available – .787″ (20mm) thick
- High performance
- Low noise level
- Precision ball bearings provide long service life
- Durable die cast aluminum frame
- Choice of 115VAC or 230 VAC
- Impedance protected
- U.L. recognized – File Number E75082
- CSA certified – File Number 48371M2
- TF92345 Series AC / Ball Bearing Dual Voltage Fan
- Dual Voltage operating capacity 115/230VAC
- Less than 1 inch thick – .984″ (25mm)
- Precision ball bearings provide long service life
- Durable die cast aluminum frame
- Choice of two speeds to satisfy various applications
- Impedance protected
- U.L. recognized – File Number E75082
- CSA certified – File Number 48371M2
|
|
The U.S. Toyo Fan product line consists of AC and DC fans and blowers and related accessories, such as finger guards, filters, and fan cords. Through a successful ongoing marketing effort these products are widely available nationally and internationally from distributors that ship globally like us here.
